Cisco 7200 Series Replacement Instructions

17
Removing and Replacing an AC-Input Power Supply

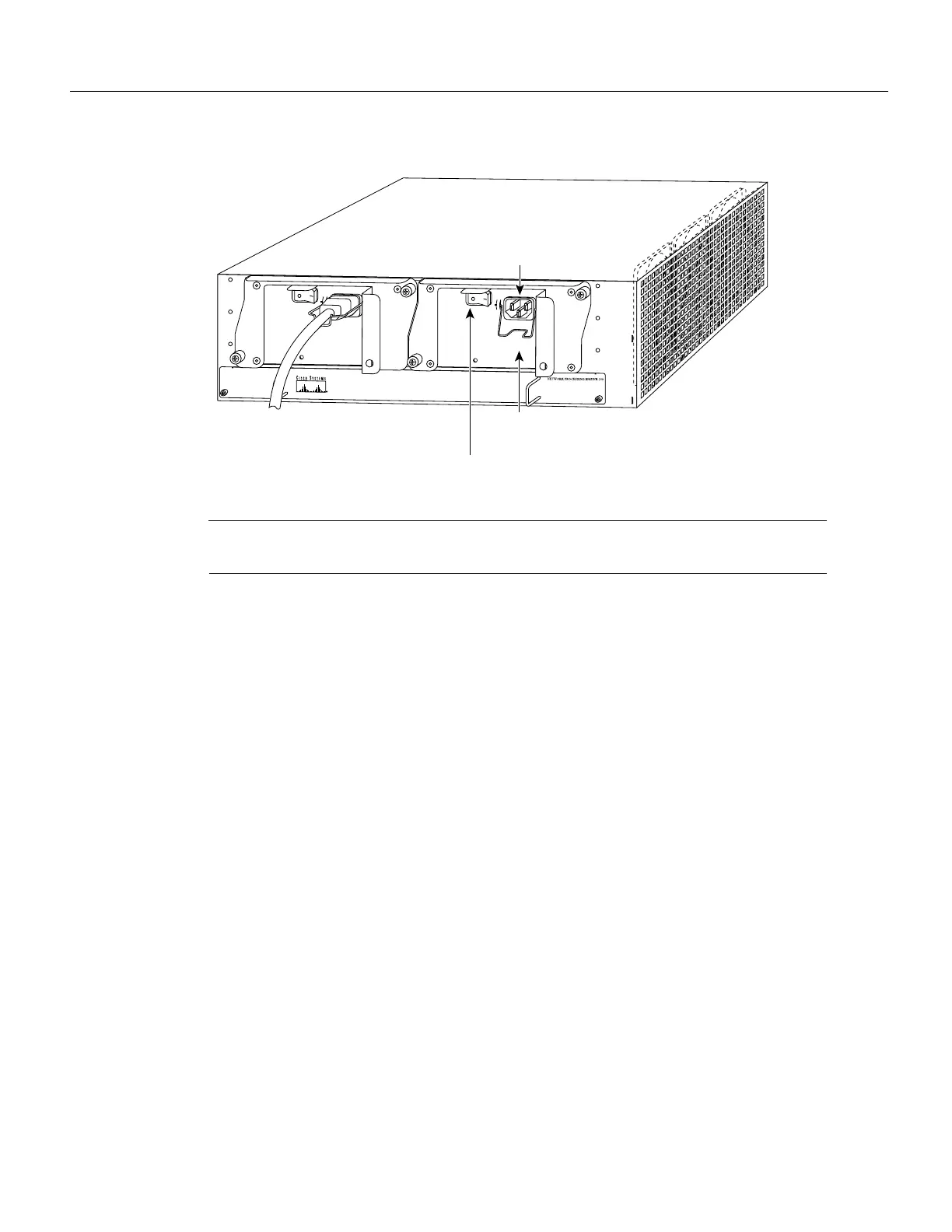

Figure 10 The Cisco 7200 Series Power Supply AC Receptacle and Power Switch
Note Each AC-input power supply operating at 120 VAC requires a minimum of 5A service. We
recommend powering the Cisco 7200 series routers from a 15A receptacle at the power source.
Step 3 Secure the cable in the power supply AC receptacle by pushing the cable-retention clip
up until it snaps into place around the connector. The cable-retention clip provides strain
relief for the AC power cable.
Step 4 Plug the AC-input cable into the AC power source.
This completes the steps for connecting AC input power to a Cisco 7200 series router.
To turn on the power supply, complete the following steps:
Step 1 Place the power switch on the newly installed power supply in the ON (|) position.
Step 2 Observe the following:
• The green OK LED on the power supply turns on
• The system continues to operate as normal
This completes the procedures for reconnecting input power and turning on the power supply. This
also completes the procedure removing and replacing the AC-input power supply in a Cisco 7200
series router.
H6746
AC-input
power supply
AC-input
receptacle
Power switch

Cisco 7200 Series Specifications

General

Chassis	Modular
Product Type	Network Router
Form Factor	Rack-mountable
Software	Cisco IOS
Performance	Up to 2 Mpps
Processor	MIPS RISC
Memory	Up to 64 MB Flash
Interfaces	Ethernet, Fast Ethernet, Gigabit Ethernet, ATM, Serial
Power Supply	AC or DC power supply options
Slots	Up to 6 slots
Dimensions	Varies by model
Weight	Varies by model
Model	7200 Series
