Note Each DC power supply accepts two power feeds, but works with only one. You may choose to install only one power
feed per power supply. For example, DC power feed A to the power supply in power supply slot 1 and DC power feed
B to the power supply in power supply slot 2.

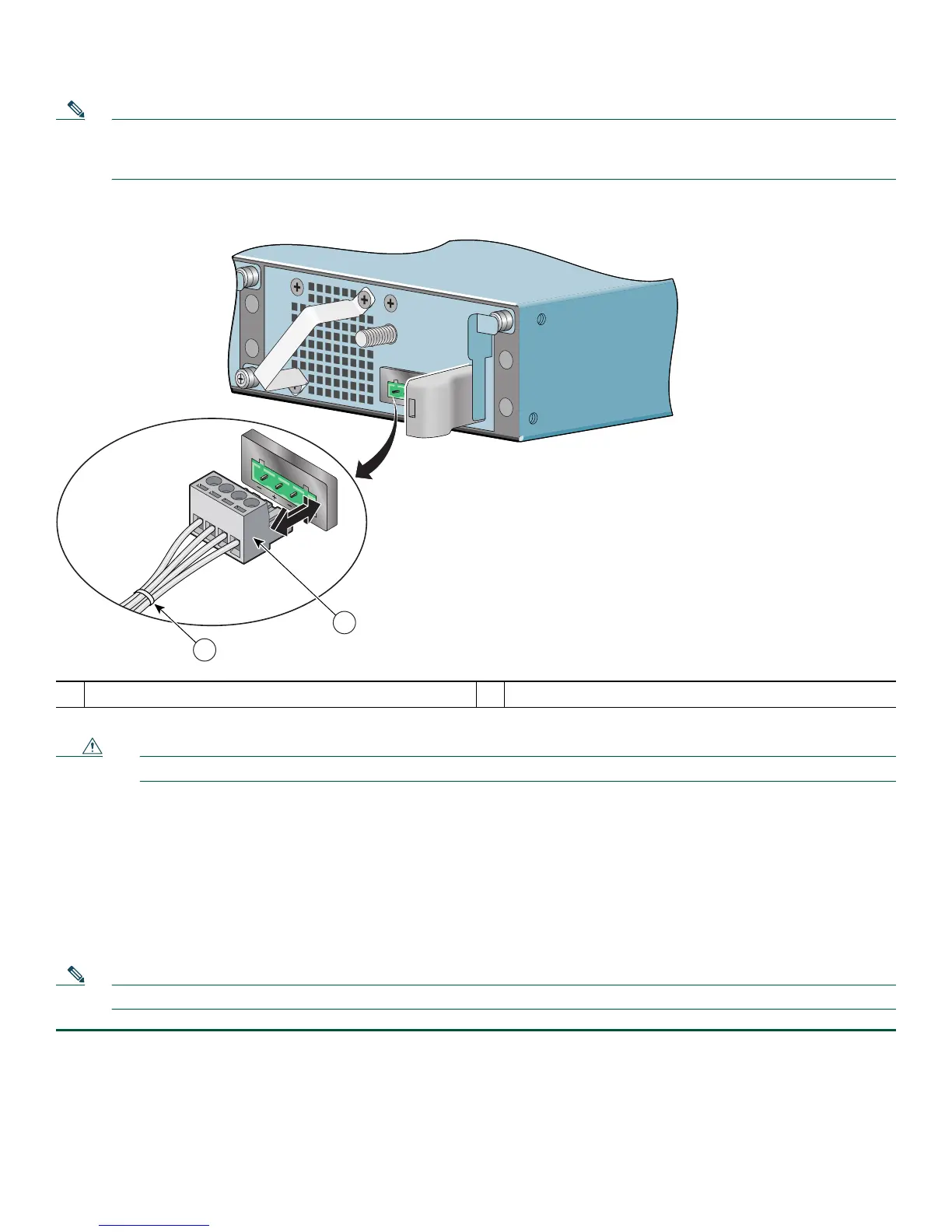

Figure 29 Inserting the Terminal Block Plug in the Block Header
Caution Secure the wires coming in from the terminal block plug so that they cannot be disturbed by casual contact.
Step 9 Use a tie wrap to secure the wires to the rack, so that the wires are not pulled from the terminal block plug by casual
contact. Make sure the tie wrap allows for some slack in the ground wire.
Step 10 Insert the terminal block plug in the terminal block header on the DC power supply panel, as shown in Figure 29.
Step 11 Repeat Step 1 through Step 10 on the second DC power supply.
Step 12 Remove the tape from the circuit-breaker switch handle, and move the circuit-breaker switch handle to the on position.
Step 13 Switch the circuit breaker to the on position.
Step 14 On the front of the router, place the power switch in on (O) the router to turn on the router.
Note After powering off the router, wait a minimum of 30 seconds before powering it on again.
This completes the procedure for connecting DC-input power. Your installation is complete. Proceed to the “Start the Router”
section on page 29 to start the router.
