52

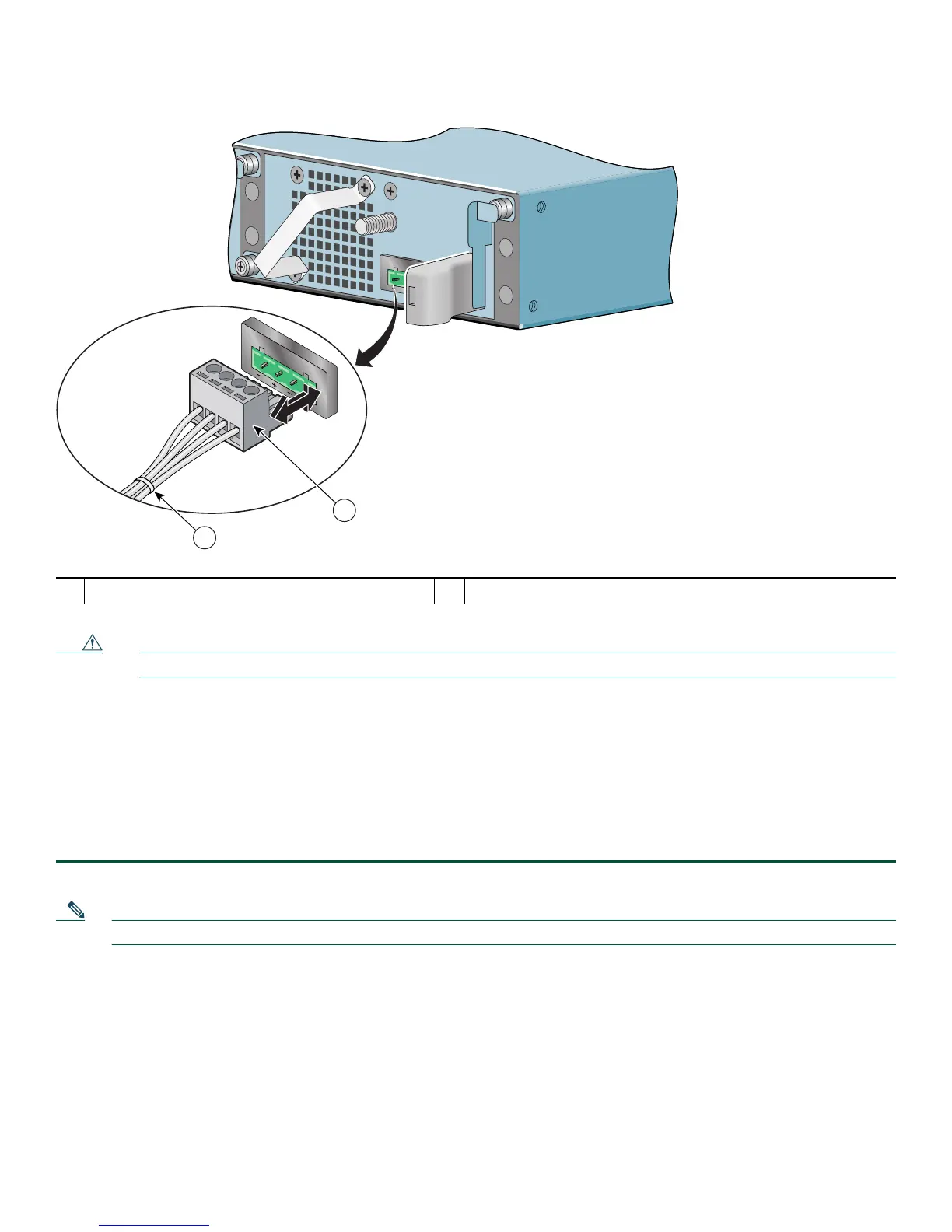

Figure 41 Inserting the Terminal Block Plug in the Block Header
Caution Secure the wires coming in from the terminal block plug so that they cannot be disturbed by casual contact.
Step 3 Use a tie wrap to secure the wires to the rack, so that the wires are not pulled from the terminal block plug by casual
contact.
Step 4 Insert the terminal block plug in the terminal block header on the DC power supply panel, as shown in Figure 41.
Step 5 Repeat Step 1 through Step 4 if you are replacing a second DC power supply.
Step 6 Remove the tape from the circuit-breaker switch handle, and move the circuit-breaker switch handle to the on position.
Step 7 Turn the router power switch to the on (O) position.
Step 8 Switch the circuit breaker to the on position.
Note After powering off the router, wait a minimum of 30 seconds before powering it on again.
1
Tie wrap
2
Terminal block plug
PWR
SLOT 2
B
A
170973
1
2
