Attach the Cable-Management Bracket

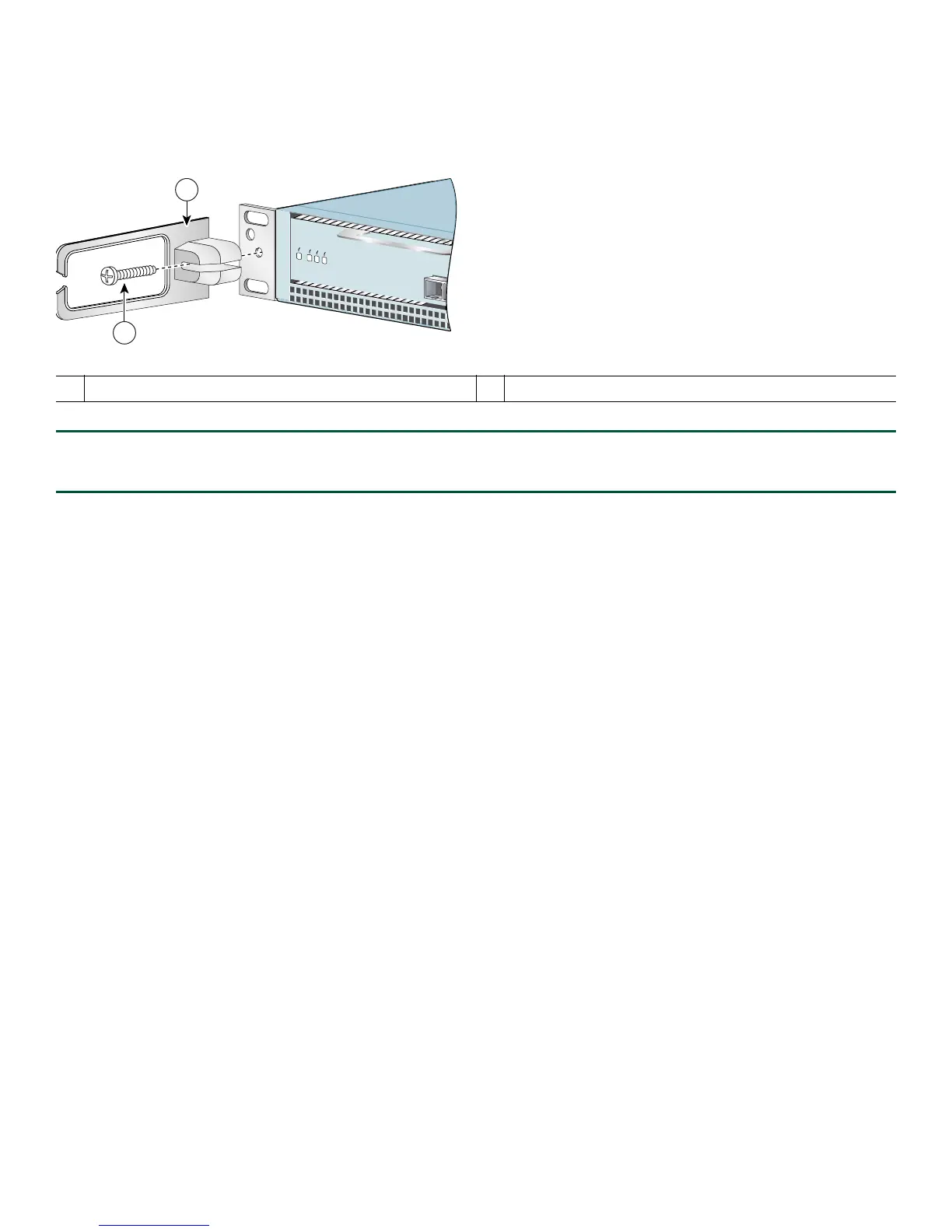

Figure 3 Installing the Cable-Management Bracket
Step 1 Align the cable-management bracket to the rack-mount bracket on the left side of the Cisco 7201 router.
Step 2 Using a Phillips screwdriver and the
M4 x 20-mm screw, thread and tighten the screw to the cable-management bracket.
This completes the procedure for installing the cable-management bracket on a Cisco 7201 router. Go to the “Two-Post Rack
Installation” section on page 8 or the “Four-Post Rack Installation” section on page 9.
1 Cable-management bracket 2 M4 x 20-mm screw
