Cisco 800 Series Quick Reference Guide

MICA-6MOD
Six digital modem
upgrade
This digital modem
upgrade increases a Cisco
digital modem network
modules capacity by six
modems, up to a
maximum of 30 modems
per digital modem
network module.
Modular Router Solutions
Dial-up Remote Access
3700 Series – 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 11.2(9)XA
3620 – 11.2(9)XA
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
Requires a digital modem
network module: NM-
6DM, NM-12DM,
NM-18DM, or NM-24DM.
Series Features Overview
Network Modules for Cisco 2600XM, 3600, and 3700 Series
67

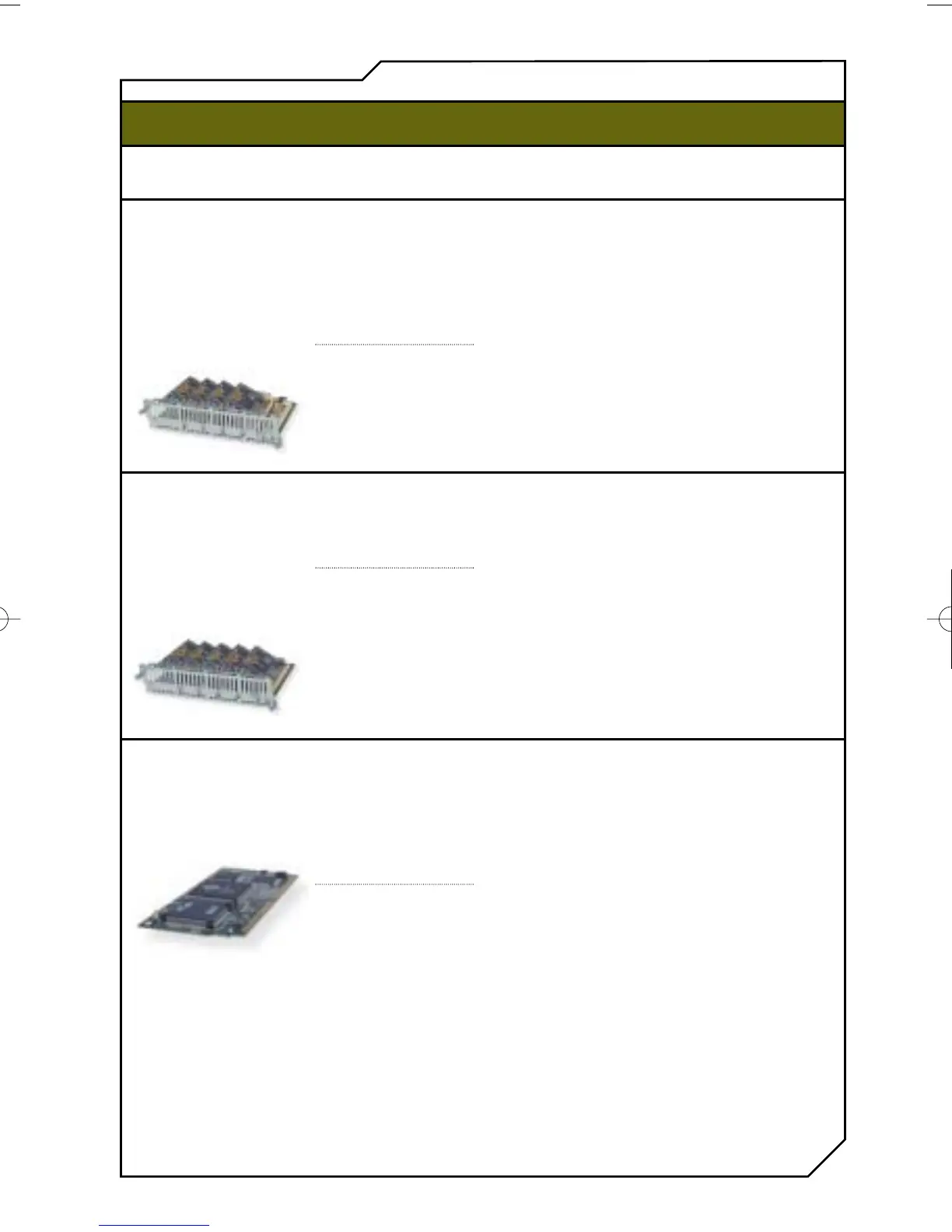

Digital Modem Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-24DM
24-port digital modem
network module
Contains 24 configurable
V.90-compliant digital
modems for use with the
ISDN PRI and BRI network
modules. This module is
field upgradable to a
maximum of 30 digital
modems.
Modular Router Solutions
Dial-up Remote Access
3700 Series – 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 11.2(9)XA
3620 – 11.2(9)XA
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
Requires a channelized or
ISDN WAN network
module: NM-1FE1CT1,
NM-1FE1CT1-CSU, NM-
1FE1CE1B, NM-1FE1CE1U,
NM-1FE2CT1, NM-
1FE2CT1-CSU,
NM-1FE2CE1B, NM-
1FE2CE1U, NM-1CT1,
NM-1CT1-CSU, NM-2CT1,
NM-2CT1-CSU, NM-
1CE1B, NM-1CE1U,
NM-2CE1B, NM-2CE1U,
NM-4B-S/T, NM-4B-U, NM-
8B-S/T, or NM-8B-U.
NM-30DM
30-port digital modem
network module
Contains 30 configurable
V.90-compliant digital
modems for use with the
ISDN PRI and BRI network
modules.
Modular Router Solutions
Dial-up Remote Access
3700 Series – 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 11.2(9)XA
3620 – 11.2(9)XA
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
Requires a channelized or
ISDN WAN network
module: NM-1FE1CT1,
NM-1FE1CT1-CSU, NM-
1FE1CE1B, NM-1FE1CE1U,
NM-1FE2CT1, NM-
1FE2CT1-CSU,
NM-1FE2CE1B, NM-
1FE2CE1U, NM-1CT1,
NM-1CT1-CSU, NM-2CT1,
NM-2CT1-CSU, NM-
1CE1B, NM-1CE1U,
NM-2CE1B, NM-2CE1U,
NM-4B-S/T, NM-4B-U, NM-
8B-S/T, or NM-8B-U.
