Network Modules for Cisco 2600XM, 3600, and 3700 Series
71
T1/E1/J1 Digital Voice Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments

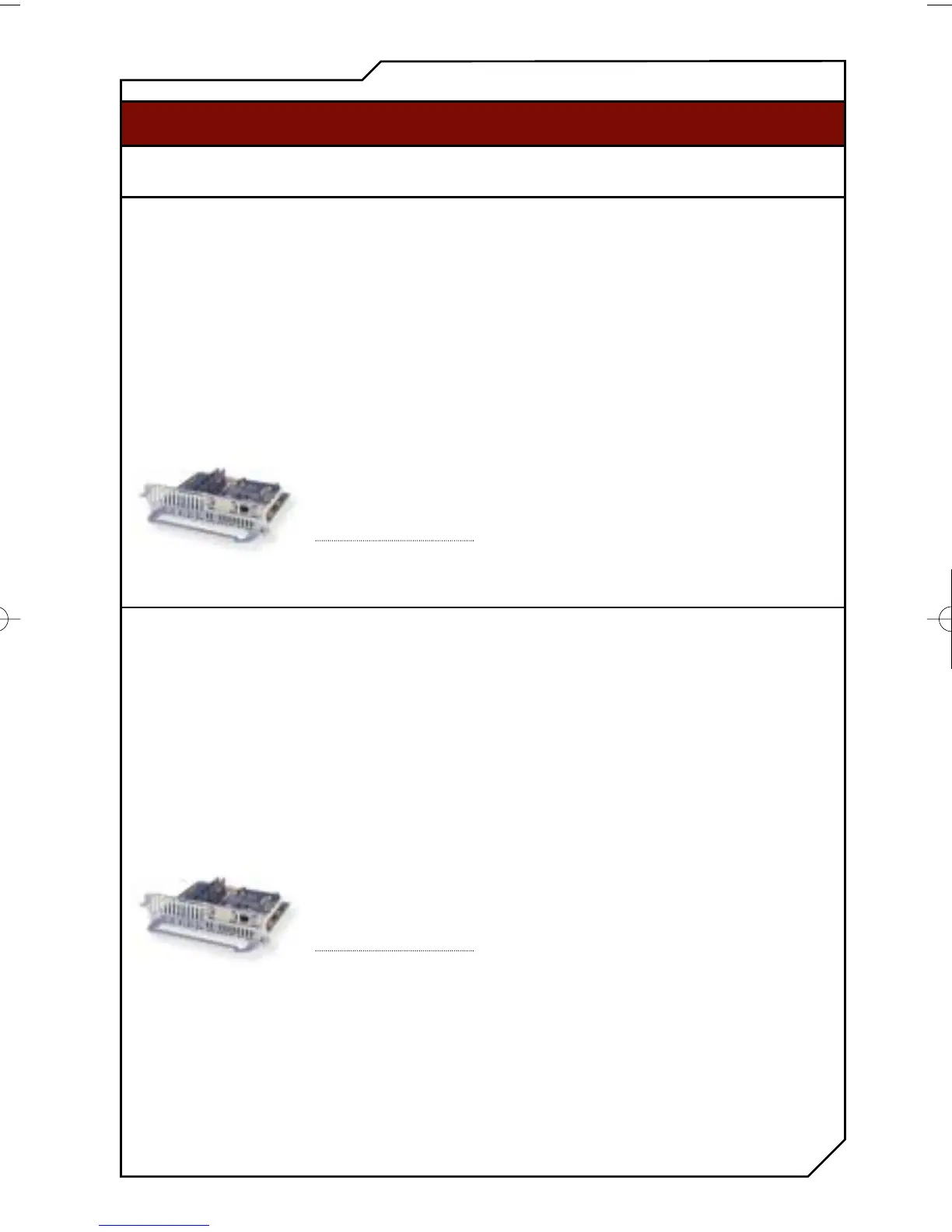

NM-HDV-1T1-12
1-port 12-channel digital
T1 packet voice trunk
network module
Provides a single T1
connection with support
for 12 channels of medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711 and fax
relay. This module can
also be configured to
provide six channels of
high
- and/or medium-
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(5)XK
3640 – 12.0(5)XK
3620 – 12.0(5)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(5)XK
2610 Series – 12.0(5)XK
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-1T1-12 is a
bundle of the following
components:
•One network module
(NM-HDV)
•One one-port T1
voice/WAN interface
card (VWIC-1MFT-T1)
•One digital signal
processor modules
(PVDM-12)
NM-HDV-1T1-24
1-port 24-channel digital
T1 packet voice trunk
network module
Provides a single T1
connection with support
for 24 channels of medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711 and fax
relay. This module can
also be configured to
provide 12 channels of
high- and/or medium-
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(5)XK
3640 – 12.0(5)XK
3620 – 12.0(5)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(5)XK
2610 Series – 12.0(5)XK
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-1T1-24 is a
bundle of the following
components:
•One network module
(NM-HDV)
•One one-port T1
voice/WAN interface
card (VWIC-1MFT-T1)
•One digital signal
processor modules
(PVDM-12)
AccessRouter_10.21.02 10/24/02 3:31 PM Page 71
