Cisco 800 Series Quick Reference Guide

Series Features Overview
Interface Cards for Cisco 1700, 2600XM, 3600, and 3700 Series
83
T1, E1, and G.703 Multiflex Trunk Voice and WAN Interface Cards
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments

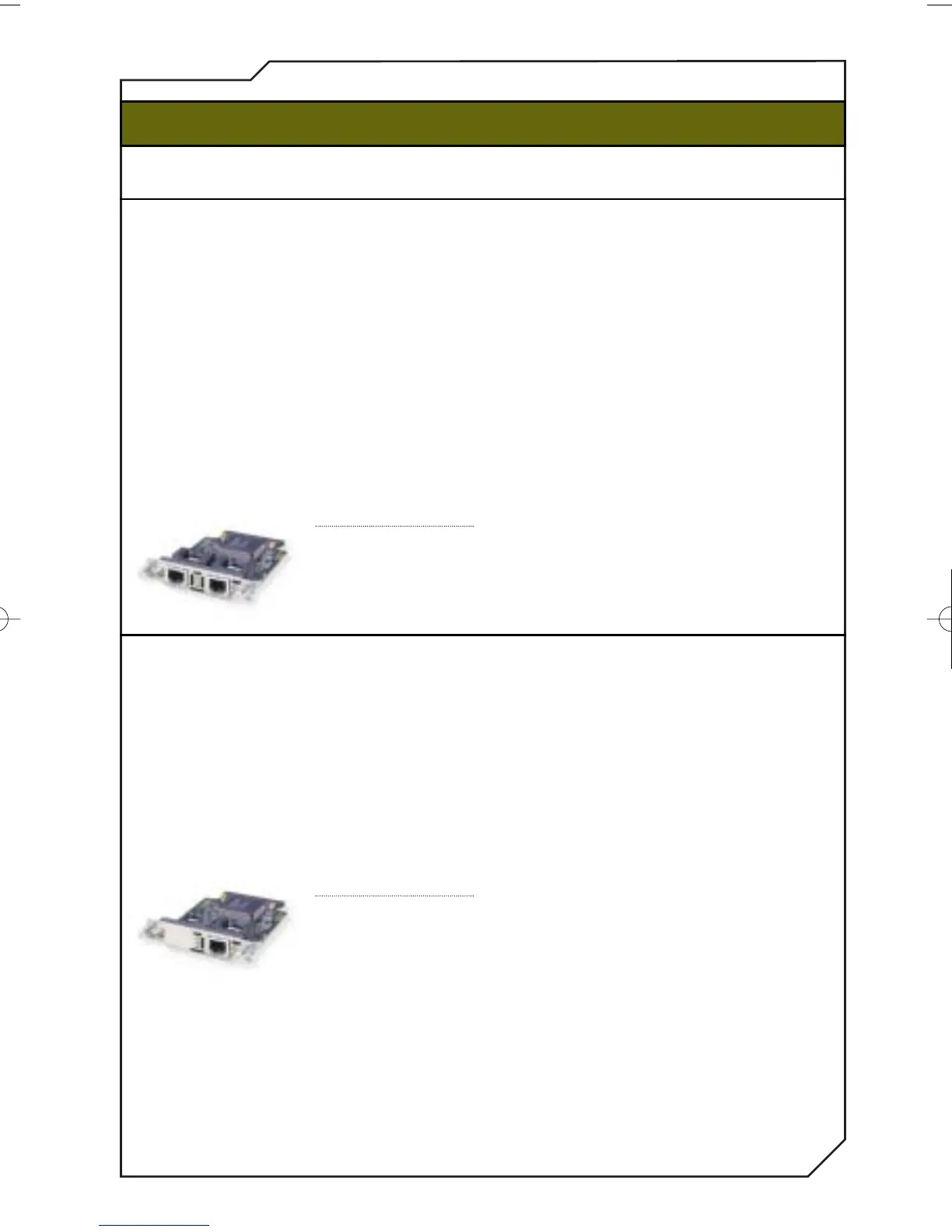

VWIC-2MFT-E1-DI
2-port RJ-48 multiflex
trunk-E1 voice/WIC with
drop and insert
This module supports
voice, data, and integrated
voice/data applications.
For data applications, the
VWIC provides a two-port
WC for E1/FE1 with an
integrated DSU. For a
packet voice solution, the
VWIC provides a dual-port
voice interface card (VIC)
with integrated DSU, that
combines with the digital
T1/E1 packet voice trunk
modules. For multiplexed
voice and data
applications, this module
provides a two-port VWIC
E1/FE1 drop and insert
multiplexer.
Modular Router Solutions
Serial and Legacy
Concentration
Voice and Fax Integration
3700 Series - 12.2(8)T
3660 Series – 12.0(5)XK
3640 – 12.0(5)XK
3620 – 12.0(5)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(5)XK
2610 Series – 12.0(5)XK
1760 – 12.2(4)YB
(Sixth release of 12.2T)
1751 – 12.2(4)YB
(Sixth release of 12.2T)
1721 – Future
When used in a Cisco 3600
Series router, requires one
of the following network
modules: NM-2W, NM-
1FE2W, NM-2FE2W,
NM-1FE1R2W, NM-1A-
OC3MM-1V,
NM-1A-OC3SMI-1V, NM-
1A-OC3SML-1V or
NM-HDV.
Minimum Cisco IOS
version may vary
depending on application.
VWIC-1MFT-G703
1-port RJ-48 multiflex
trunk-E1 framed/unframed
voice/WIC
This module supports
voice, data, and integrated
voice/data applications.
For data applications, the
VWIC provides a one-port
WIC for E1/FE1 or
unframed G.703 with an
integrated DSU. For a
packet voice solution, the
VWIC provides a one-port
voice interface card (VIC)
with integrated DSU, that
combines with the digital
T1/E1 packet voice trunk
modules.
Modular Router Solutions
Serial and Legacy
Concentration
Voice and Fax Integration
3700 Series - 12.2(8)T
3660 Series – 12.1(1)T
3640 – 12.1(1)T
3620 – 12.1(1)T
2691 – 12.2(8)T1
2600XM Series – 12.2(12)
mainline (future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.1(1)T
2610 Series – 12.1(1)T
1760 – 12.2(4)YB
(Sixth release of 12.2T)
1751 – 12.2(4)YB
(Sixth release of 12.2T)
1721 – Future
When used in a Cisco 3600
Series router, requires one
of the following network
modules: NM-2W, NM-
1FE2W, NM-2FE2W,
NM-1FE1R2W or NM-HDV.
Minimum Cisco IOS
version may vary
depending on application.
AccessRouter_10.21.02 10/24/02 3:31 PM Page 83

Cisco 800 Series Specifications

General

Model	Cisco 800 Series
Category	Network Router
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Processor	Varies by model
Memory	Varies by model
Operating System	Cisco IOS
WAN Ports	Varies by model
LAN Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Fast Ethernet or Gigabit Ethernet
