2-46
Cisco Integrated Servic
es Router Hardware Installation Guide
Chapter
2 In
stalling
the Router

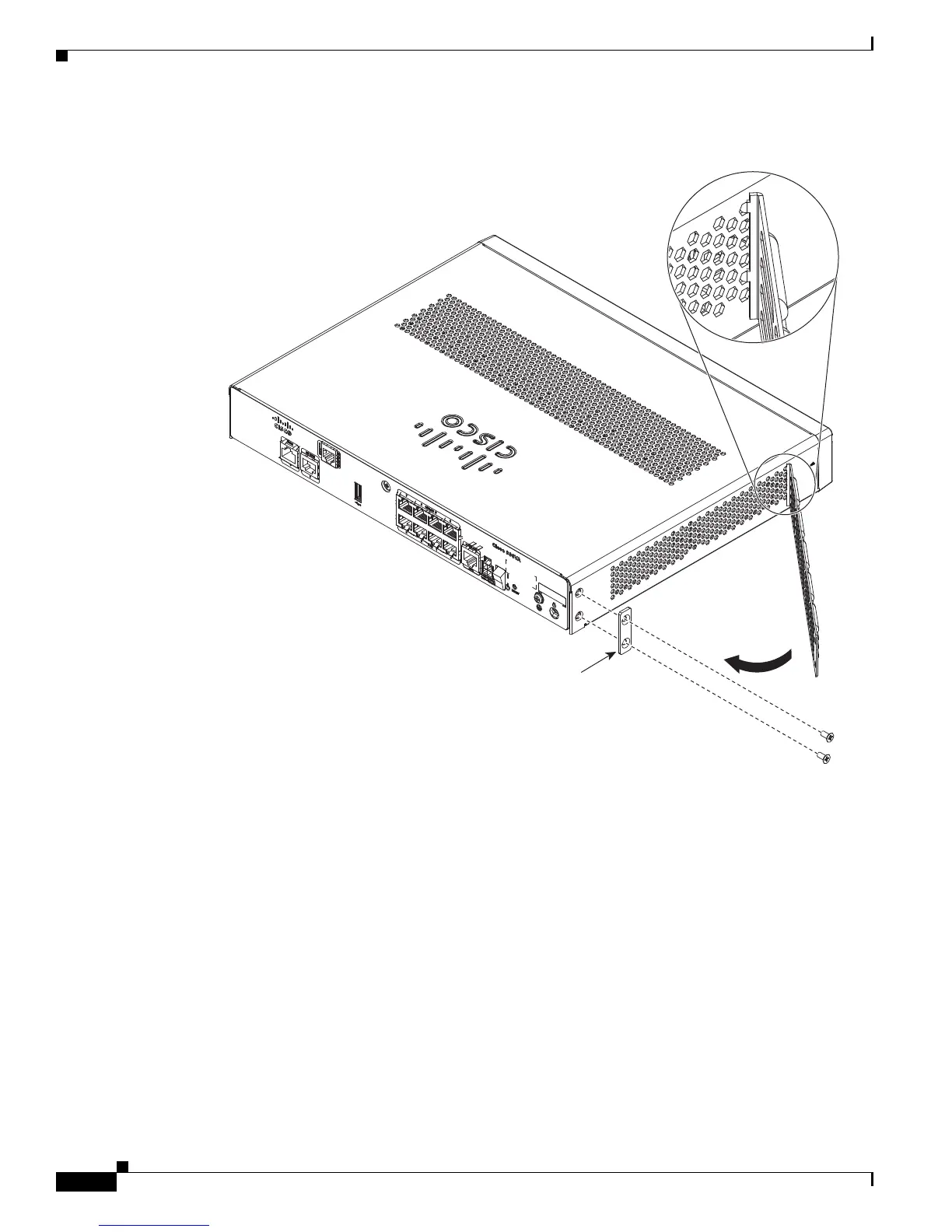

Installing the Cisco 860, 880, 890 ISR
Step
2
Install the left-side FIPS cover
, as sho
wn in detail A.
Step
3
Rotate and bring into the close position to hin
ge to the correct he
xagon.
Step
4
Pla
ce the adapter plate before clos
ing by aligning the mounting holes.
284922
Detail A
Adapter
Plate
197
199
