Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series
To connect your Cisco 860 series, Cisco 880 series, or the Cisco 890FSP ISR to an AC power outlet,
follow these steps:
Step 1 Connect the router to an AC power outlet as shown in Figure 3-31.
To connect the AC power outlet for the Cisco 892FSP router, see Figure 3-32.

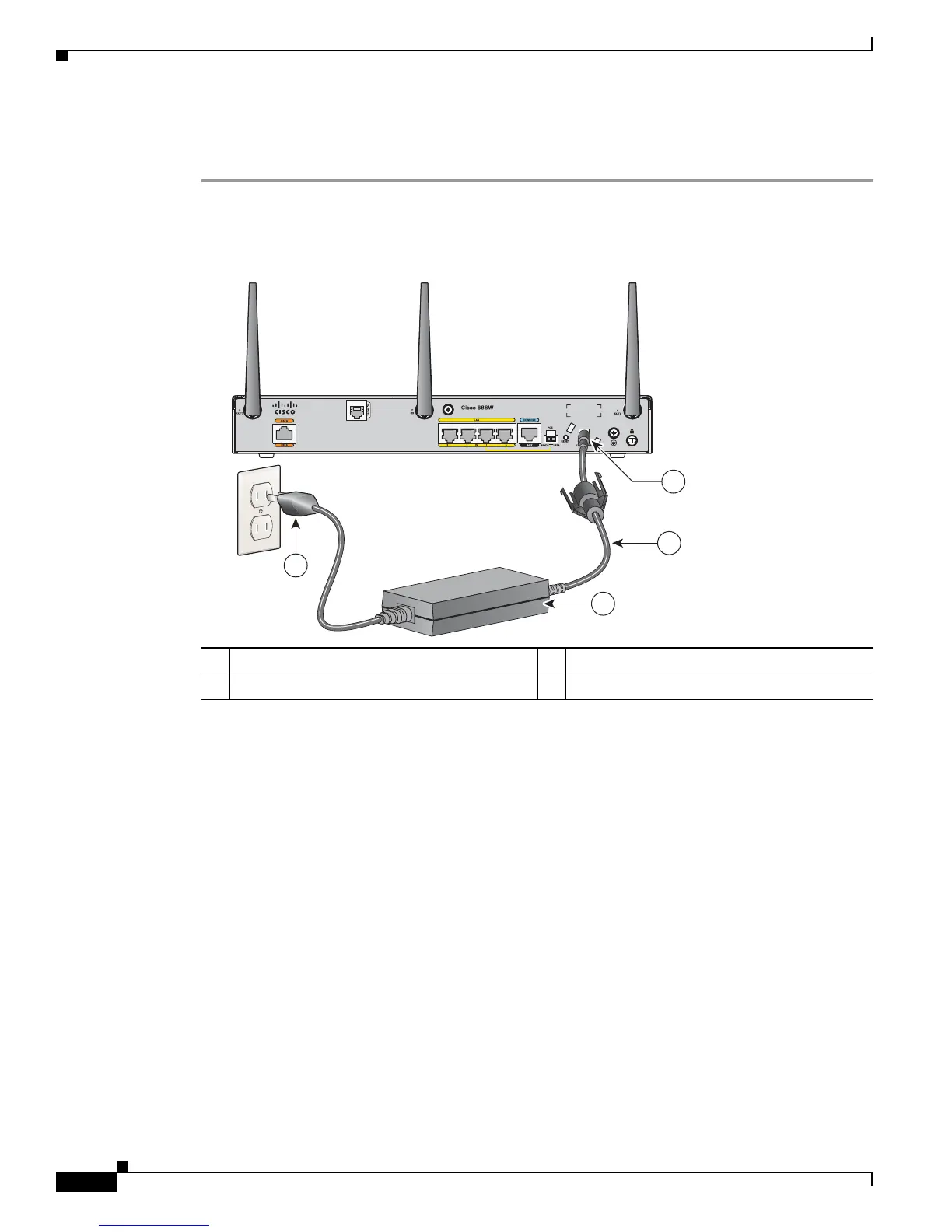

Figure 3-31 Connecting the AC Adapter
1 12-VDC plug 3 Power adapter—12 VDC
2 Power cord 4 AC plug
