Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series

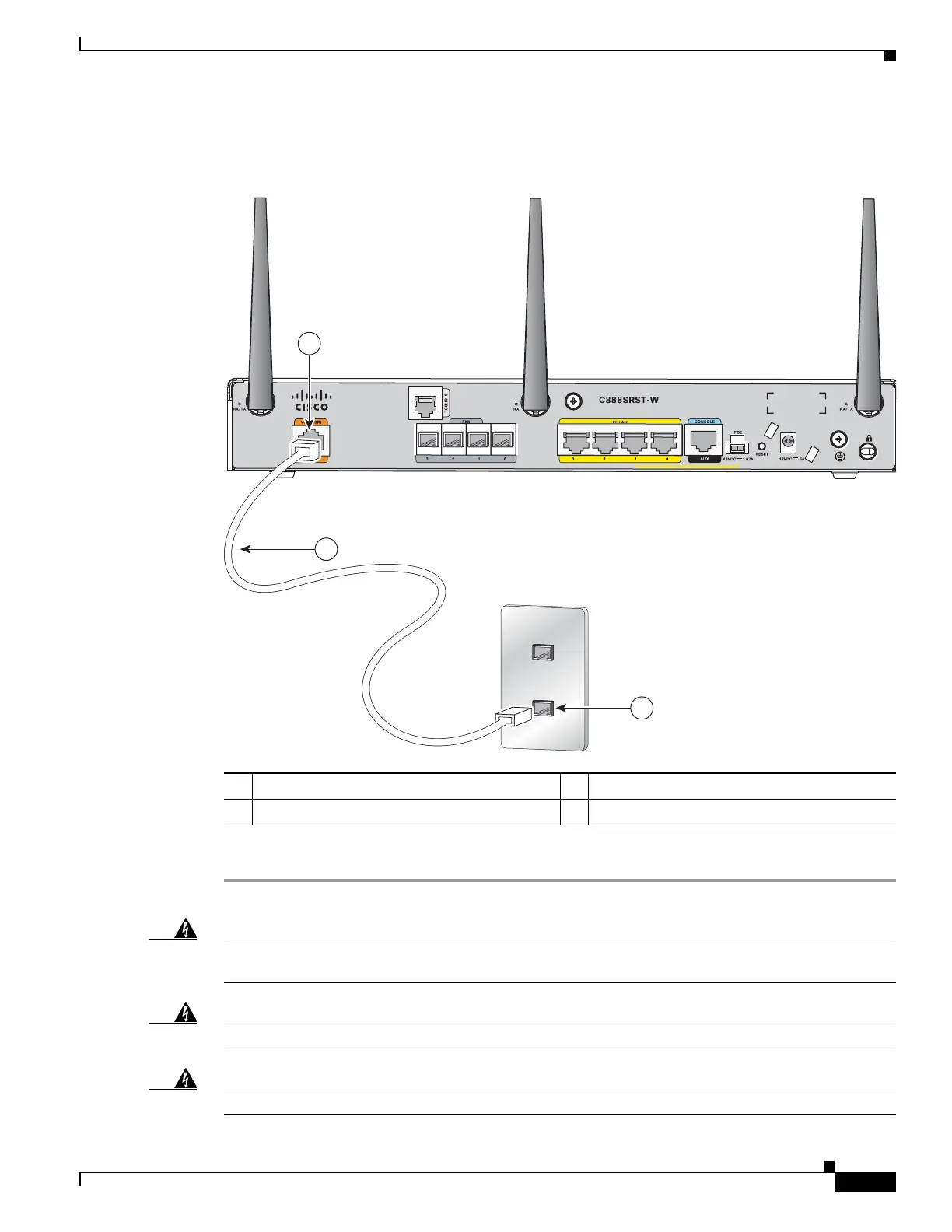

Figure 3-38 shows a voice BRI line connection.
Figure 3-38 Connecting a Voice BRI Line
Step 2 Connect the other end of the cable to the RJ-45 telephone outlet or other device.
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into
beams or view directly with optical instruments. Statement 1051
Warning Do not stare into the laser beam. Statement 1010
Warning Invisible laser radiation present. Statement 1016
1 Voice BRI port 3 Telephone outlet
2 RJ-45 cable
241906
1
3
2

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
