Cisco 860 Series Installation Guide

3-36
Cisco Integrated Services Router Hardware Installation Guide
OL-23125-02
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series
To connect your Cisco 860 series, Cisco 880 series, or the Cisco 890FSP ISR to an AC power outlet,
follow these steps:
Step 1 Connect the router to an AC power outlet as shown in Figure 3-31.
To connect the AC power outlet for the Cisco 892FSP router, see Figure 3-32.

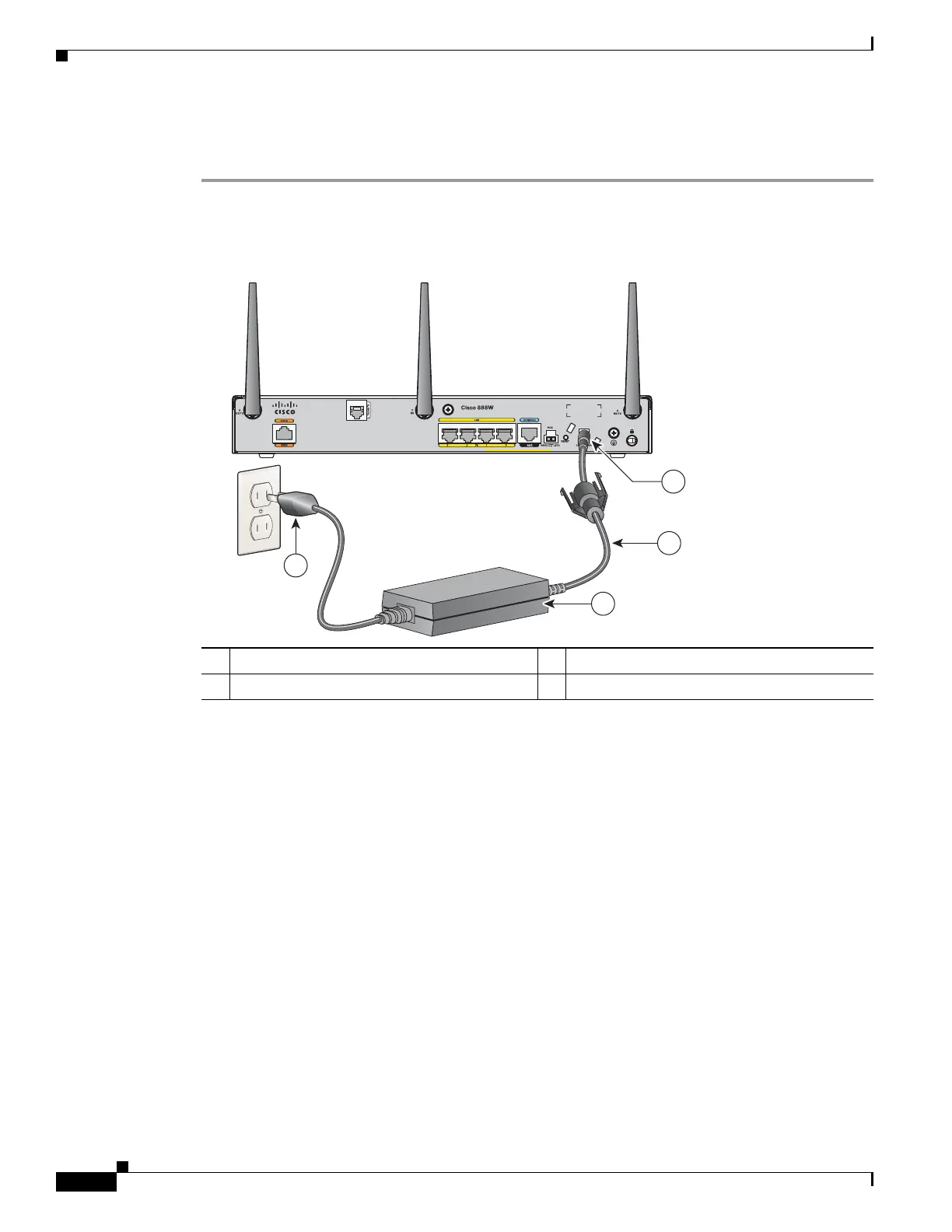

Figure 3-31 Connecting the AC Adapter
1 12-VDC plug 3 Power adapter—12 VDC
2 Power cord 4 AC plug
231996
1
2
4
3

Cisco 860 Series Specifications

General

VPN Support	Yes
Firewall	Yes
QoS	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS
Operating System	Cisco IOS
Device Type	Router
WAN Interfaces	1 x 10/100Base-TX - RJ-45
LAN Interfaces	4 x 10/100Base-TX - RJ-45
Connectivity Technology	Wired
Network / Transport Protocol	IPSec, TCP/IP
Features	DHCP support, NAT support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
