Cisco Aironet Dual-band Dipole Antenna (AIR-ANT2524DB-R, AIR-ANT2524DG-R, and AIR-ANT2524DW-R)
OL-58653-01
Technical Specifications
Technical Specifications

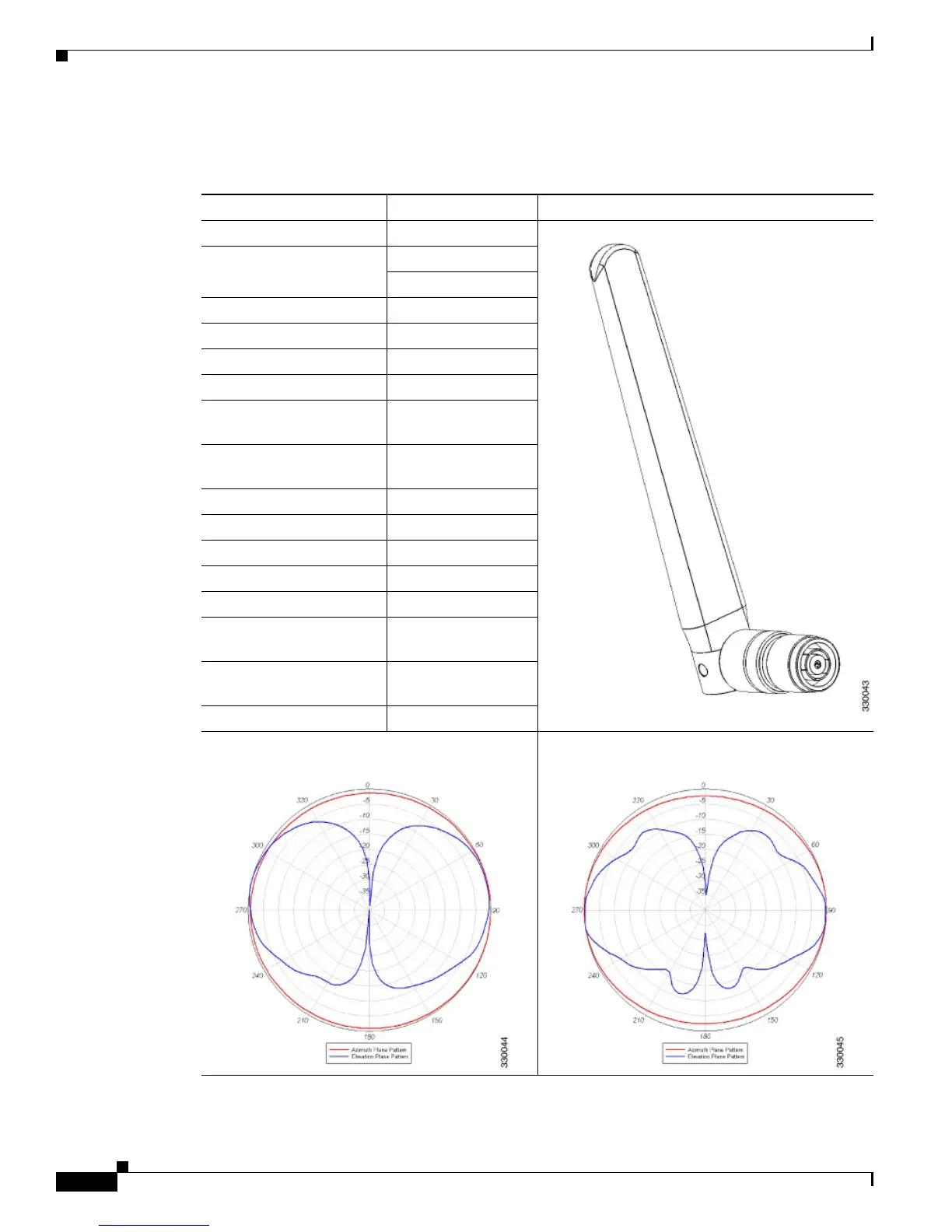

Table 2 AIR-ANT2524Dx-R Series Dual-band Dipole Specifications
Parameter Specification
Antenna type Dual-band dipole
Operating frequency range 2400 to 2500 MHz
5150 to 5850 MHz
Nominal input impedance 50 Ohms
VSWR Less than 2:1
Peak Gain @ 2.4. GHz 2 dBi
Peak Gain @ 5 GHz 4 dBi
Elevation plane 3dB
beamwidth @2.4 GHz
63 degrees
Elevation plane 3dB
beamwidth @ 5 GHz
39 degrees
Connector type RP-TNC plug
Antenna length 6.63 in. (168.5 mm)
Antenna width 0.83 in (21 mm)
Radome length 4.88 in. (124 mm)
Weight 1.3 oz
Operating temperature –20°C to 60°C
(–4° to 140°F)
Storage temperature –40°C to 85°C
(–40°F to 185°F)
Environment Indoor, office
Azimuth and Elevation Plane Patterns for 2.4 GHz Azimuth and Elevation Plane Patterns for 5 GHz
