Chapter 2 Feature Card and Carrier Card Guidelines
Removing and Installing Populated Carrier Cards

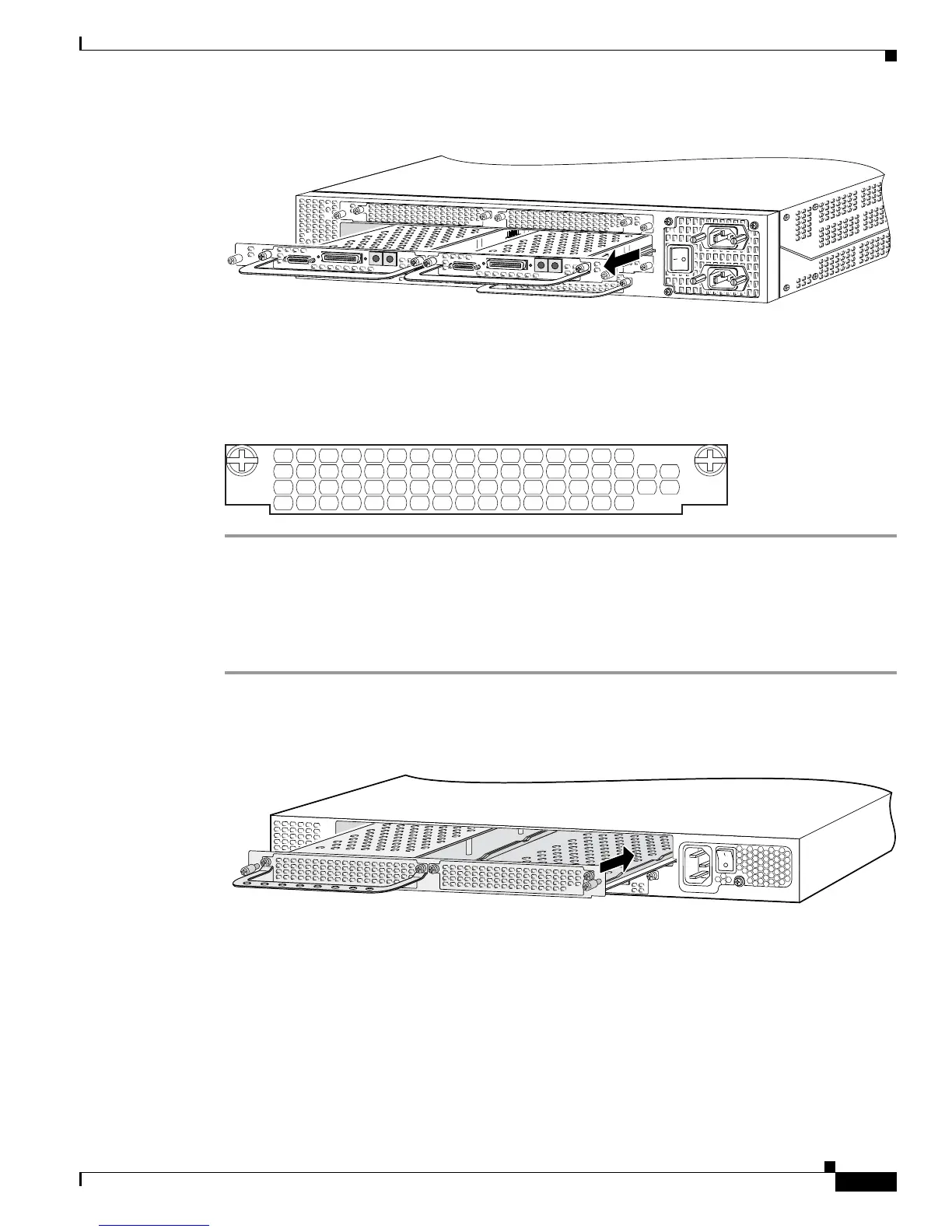

Figure 2-5 Removing the Carrier Card from the Cisco AS5400XM
Step 5
After you remove the carrier card from the chassis, set it aside on an ESD-preventive mat.
Step 6 If the backplane slot is to remain empty, install a blank cover over the open slot to ensure proper airflow
inside the chassis. (See Figure 2-6.)
Figure 2-6 Blank Filler Panel
Installing a Populated Carrier Card
To install a populated carrier card:
Step 1 Slide the carrier card into the slot until it touches the backplane connector. (See Figure 2-7 and
Figure 2-8.)
Figure 2-7 Installing the Carrier Card in the Cisco AS5350XM
37160
36033
36004
