Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide
78-17406-01
Chapter 3 T1 and E1 Feature Cards
Online Installation and Removal of the T1 or E1 Feature Card

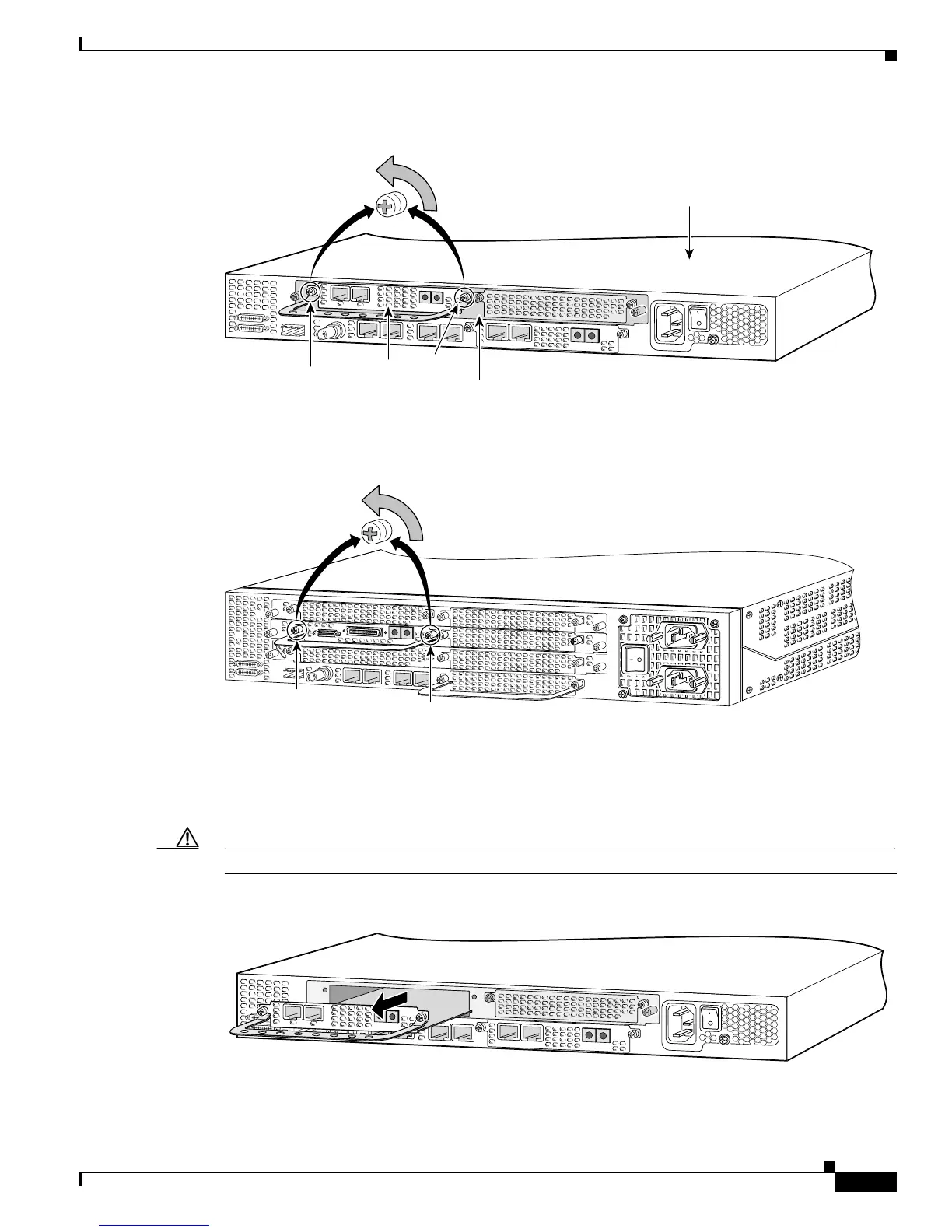

Figure 3-6 Loosening the Captive Screws on the Cisco AS5350XM Universal Gateway
Figure 3-7 Loosening the Captive Screws on the Cisco AS5400XM Universal Gateway
Step 9
Grasp the feature card handle with one hand. Pull the card toward you until the card slides free of the
chassis. Grasp the ventilated metal cover with your other hand to support and guide the feature card out
of the slot. (See Figure 3-8 and Figure 3-9.)
Caution Avoid touching any pins or circuit board components when you remove or install a feature card.
Figure 3-8 Removing the Feature Card from the Cisco AS5350XM Universal Gateway
36814
0
Rx
ACT
2 PRI
OK
Tx
1
Carrier
card
DFC
Captive
screw
Captive
screw
Chassis
37163
Captive
screw
Captive
screw
36815
0
Rx
ACT
2 PRI
OK
Tx
1
