Cisco ASA 55 Series Hardware Installation Guide

Installing and Connecting the ASA 5500-X
Rack Mount the Chassis
Cisco ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and ASA 5555-X Hardware Installation Guide
40
Procedure

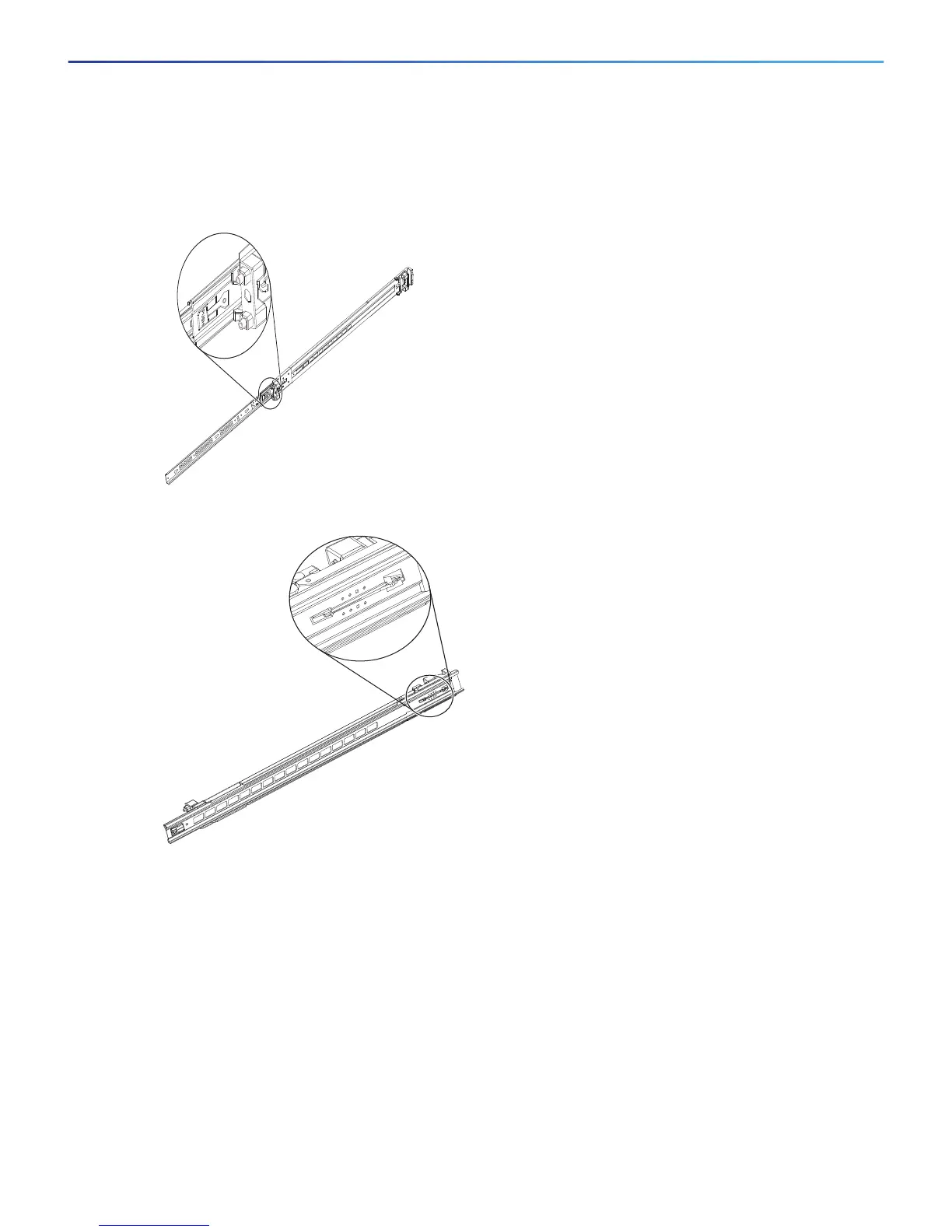

1. Disassemble the slide rail.
a. Extend the inner slide rail completely from the outer slide rail.
b. Press the silver latch to retract the middle rail on the outer rail.
c. Repeat these steps for the other slide rail.
2. Attach the inner rails to the chassis.
a. Align one of the inner slide rail key holes over the chassis shoulder screw on one side. Slide the inner slide
rail forward so that the shoulder screw is securely in place. Use a Phillips screwdriver to secure the inner
slide rail with one Phillips screw (B).
371238
371239
