Cisco ASA 55 Series Hardware Installation Guide

Installing and Connecting the ASA 5500-X
Rack Mount the Chassis
Cisco ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and ASA 5555-X Hardware Installation Guide
42
b. Secure the other outer slide rail to the rack by repeating the previous step.
Note: The previous illustration shows a square hole rack. If you are installing in a round hole rack, see the
following illustration.

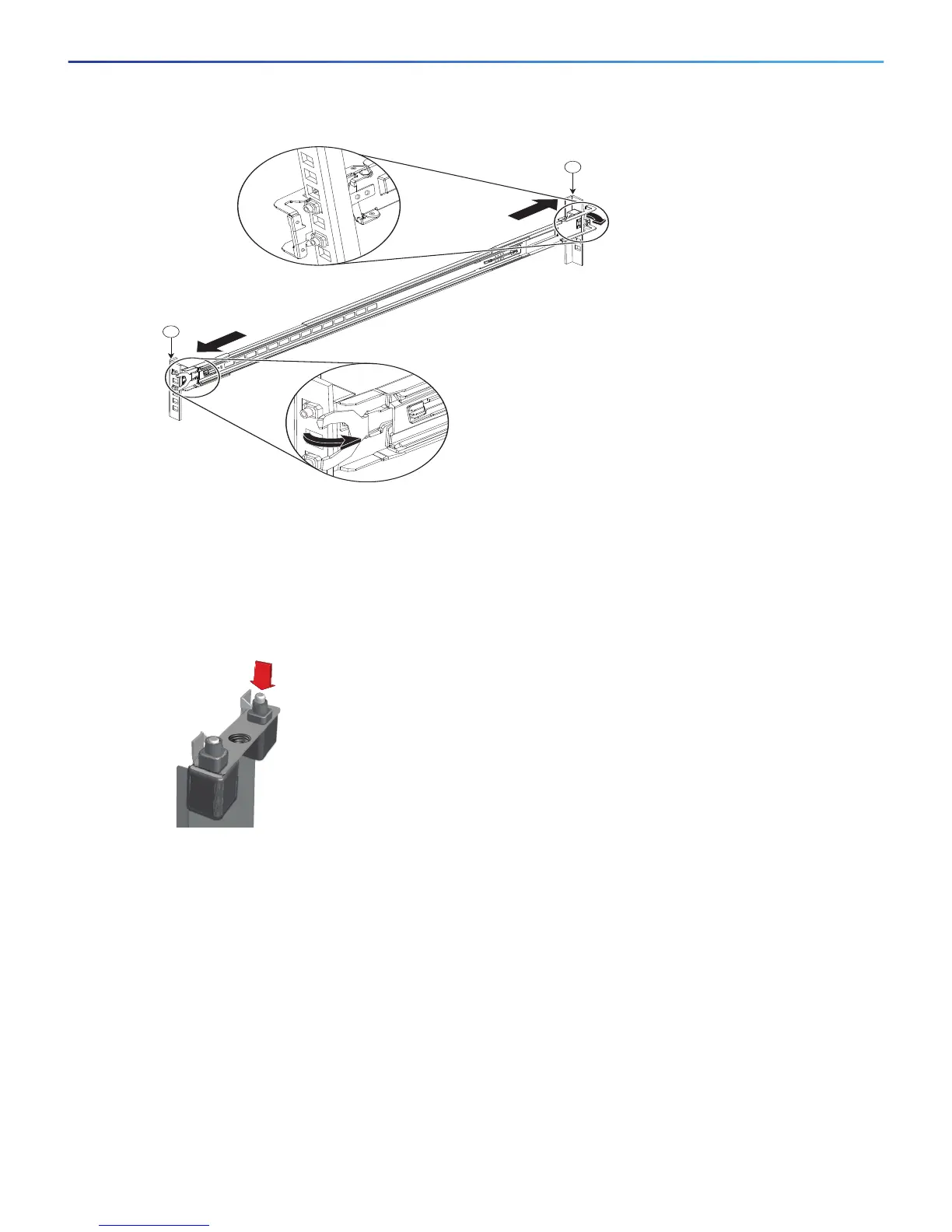

The following illustration shows the casing pulled back on the inner peg. The rail can be installed in three
different rack types.
The following illustration shows a rail installed in a threaded rail rack.
1
2
371248
