Cisco ASA 5506-X Mount And Connect

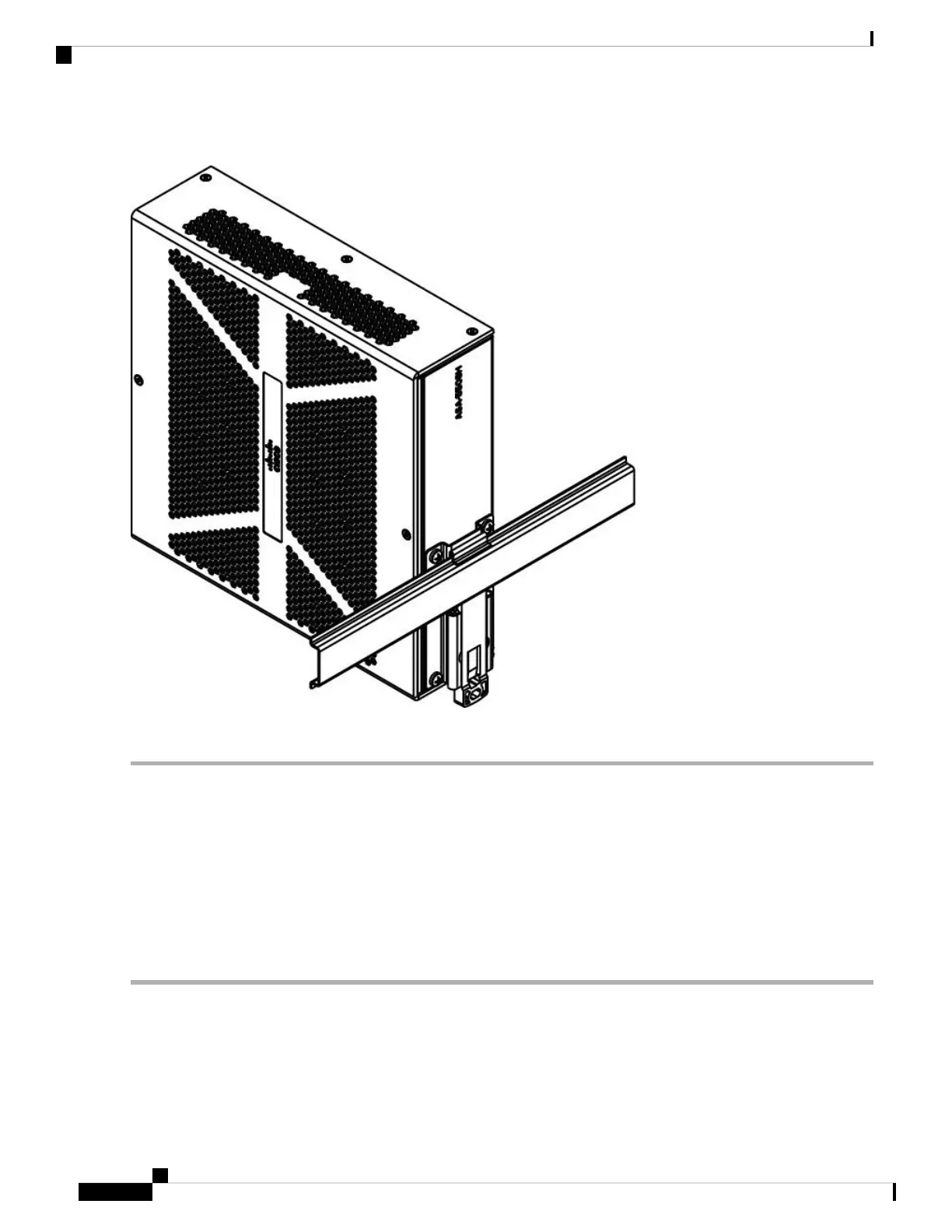

Figure 5: ASA 5506H-X Installed with the DIN Rail
The chassis is now installed in the DIN rail.
What to do next
See Connect Cables, Turn on Power, and Verify Connectivity, on page 6 to finish setting up your ASA.
Connect Cables, Turn on Power, and Verify Connectivity
After positioning or mounting the ASA, follow these steps to connect cables, turn on power, and verify
connectivity:
Step 1 Connect the network cables:
a) Management interface – Using this Management 1/1 Gigabit Ethernet port, you can connect a management computer
directly with an Ethernet cable, or you can connect the computer and the ASA to the same management network. Be
sure the PC is configured to obtain an IP address using DHCP.
Mount and Connect
6
Mount and Connect
Connect Cables, Turn on Power, and Verify Connectivity

Cisco ASA 5506-X Specifications

General

Model	ASA 5506-X
Firewall Throughput	750 Mbps
Maximum Firewall Connections	50, 000
Maximum VPN Peers	50
Integrated Ports	8 x 1 GE
Stateful Inspection Throughput	750 Mbps
Weight	4.4 lb (2 kg)
Firewall Throughput (Multiprotocol)	750 Mbps
Firewall Throughput (Application Visibility and Control AVC)	250 Mbps
Concurrent Sessions	50, 000
New Connections per Second	10, 000
IPsec VPN Throughput	100 Mbps
Interfaces	8 x 1 GE
Memory	4 GB
Flash Memory	8 GB
Form Factor	Desktop
VPN Throughput	100 Mbps
Maximum Concurrent Sessions	50, 000
New Sessions per Second	10, 000
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-13 to 158°F (-25 to 70°C)
Power Supply	External
Humidity	10% to 90% non-condensing
