Chapter 4 Maintenance and Upgrade Procedures
Removing and Installing the Power Supply Module
Caution To remove and install a power supply module, follow these steps:
Step 1 If you are removing the only power supply module, power off the security appliance.
Step 2 From the back panel of the security appliance, unplug the power supply module cable.
Step 3 On the back of the security appliance, loosen the captive screws from the power supply module
(Figure 4-12).

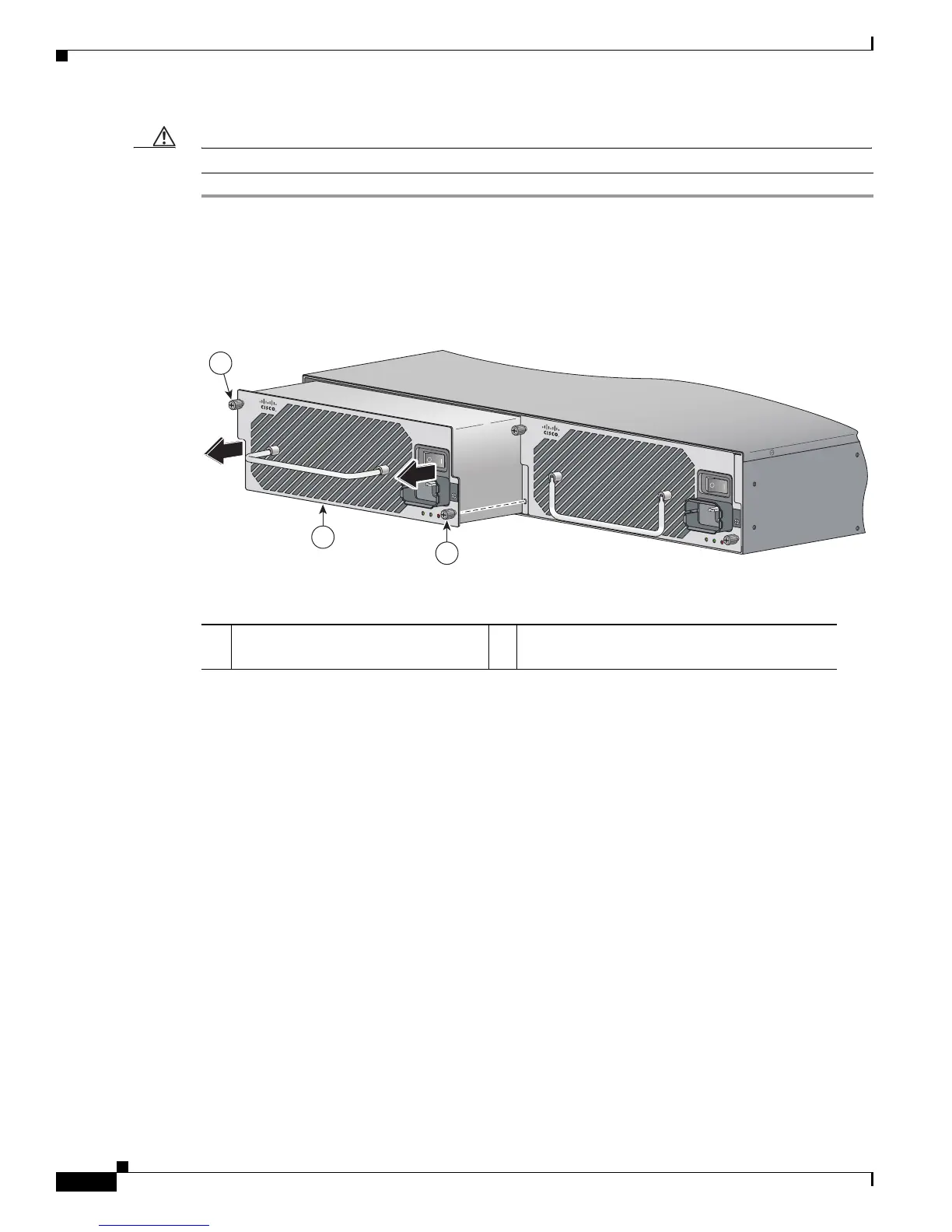

Figure 4-12 Removing the AC Power Supply Module
Step 4
Remove the power supply module by grasping the handle and pulling the power supply module away
from the chassis.
1 Power supply module and power
supply module handle
2 Power supply module screws
