Bay Configuration - C8500-12X4QC

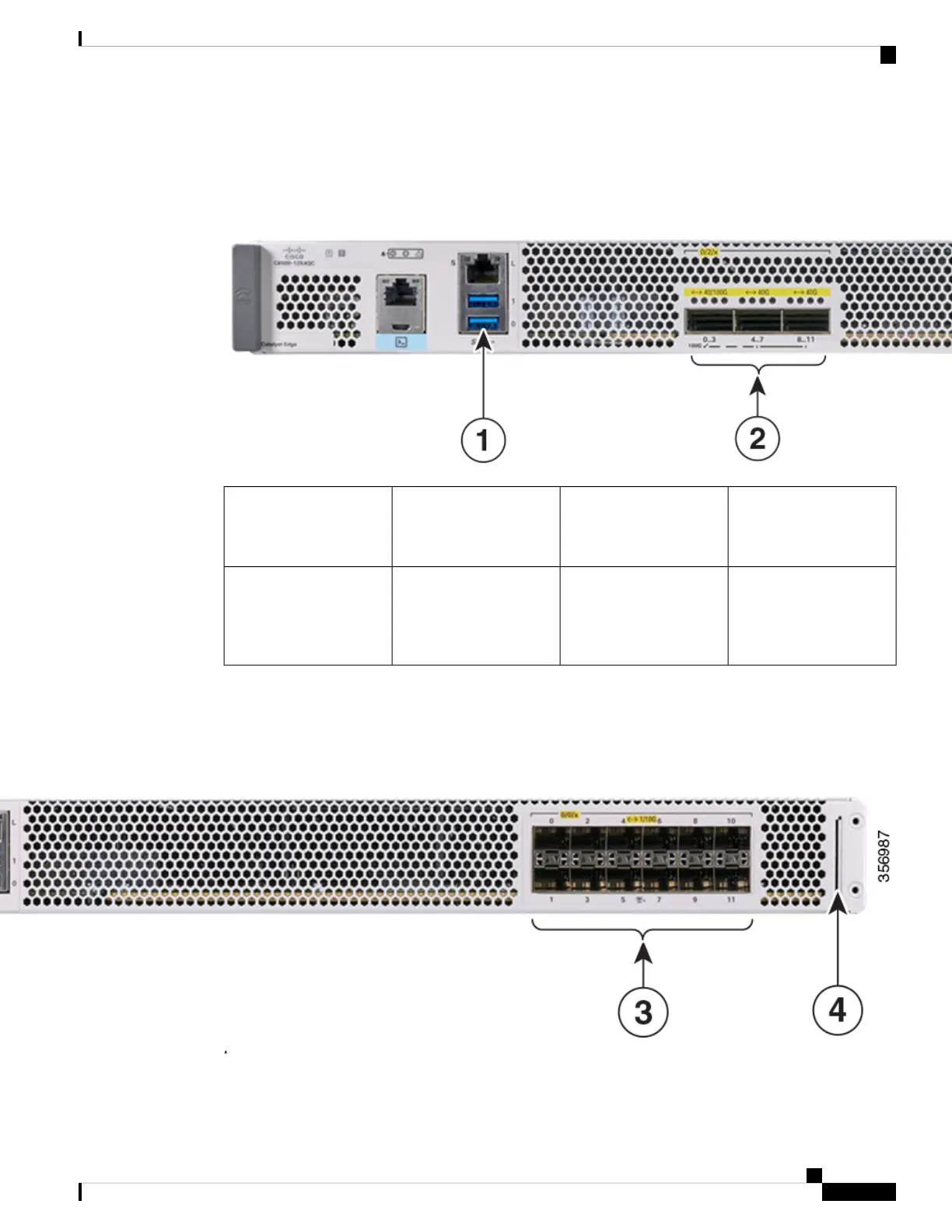

The C8500-12X4QC has three bays that are configurable and supports upto 120G of bandwidth.
Bay 2 – 3XQSFP :
Configurable as - 1x 100G
or 3x 40G
2USB 3.0 Interfaces
Management Ethernet
1
Bay 0 – 8xSFP+ :
Configurable as - 8x
10/1G
4Bay 1 – 4xSFP+/1xQSFP
:
Configurable as: 1x 100G
or 1x 40G or 4x 10/1G
3
Bay Configuration - C8500-12X4
The C8500-12X4 has one bay with twelve confgurable
ports.
Cisco Catalyst 8500 Series Edge Platforms Hardware Installation Guide
5
Overview
Bay Configuration - C8500-12X4QC
