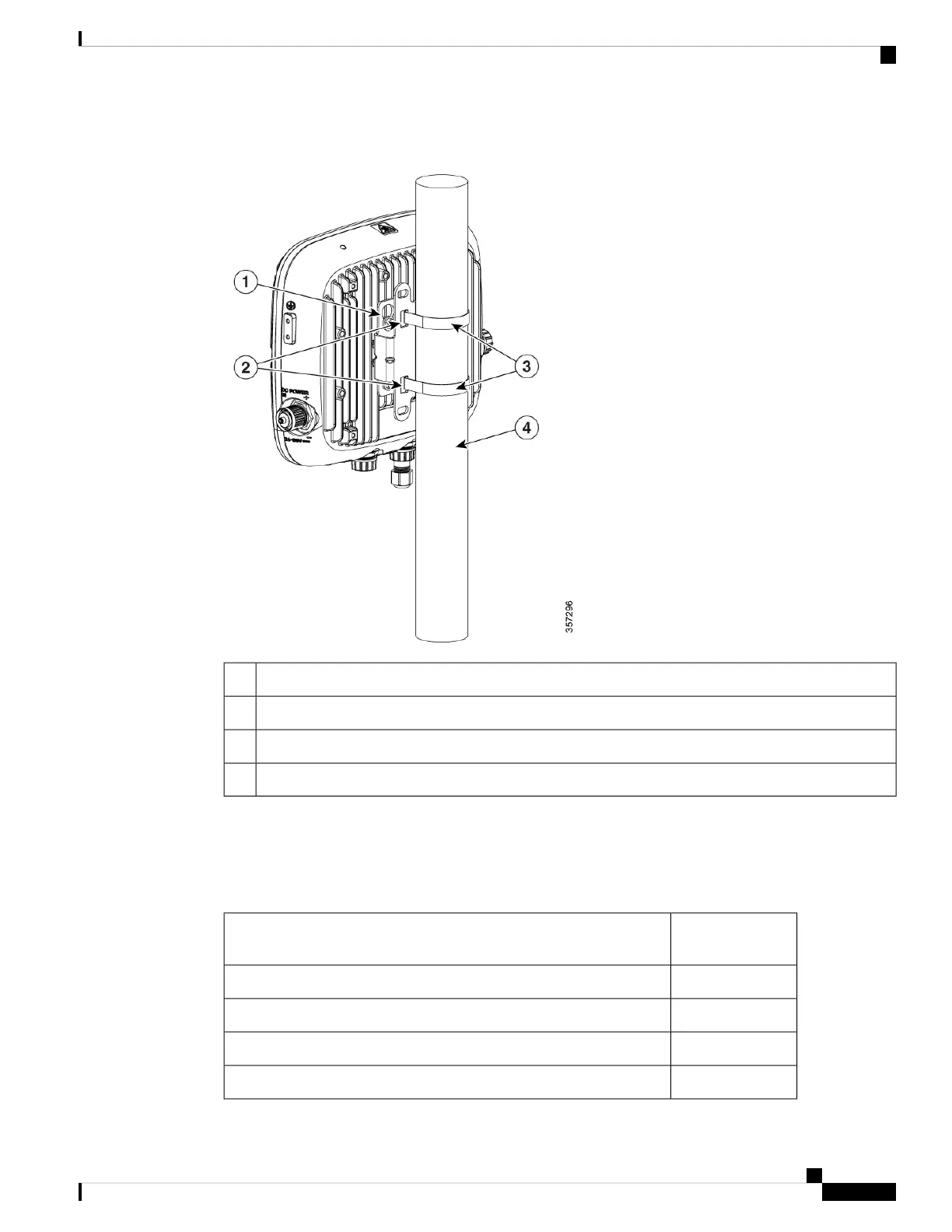

Figure 55: AP Mounted on a Pole
One of four M6 keyhole slots for mounting the AP on the bracket.1
Top and bottom sets of band clamp slots for passing the clamps through.2
Top and bottom steel band clamps3
Pole (wood, metal, or fiberglass), 2 to 5 inch (51 to 127mm) diameter4
Before you begin
Ensure that you have the following materials before beginning to mount the AP to a pole:
Table 4: Materials Needed to Mount the AP on a Vertical Pole using AIR-MNT-VERT1= Kit
Supplied in the
Kit?
Materials Required
YesOne wall mount bracket
YesFour M6 x12 mm hex head bolts
YesTwo stainless steel band clamps (adjustable 2 to 5 inch (51 to 127 mm)
No10–mm box-end wrench
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
43
Installation Overview
Vertically Mounting the AP to a Pole
