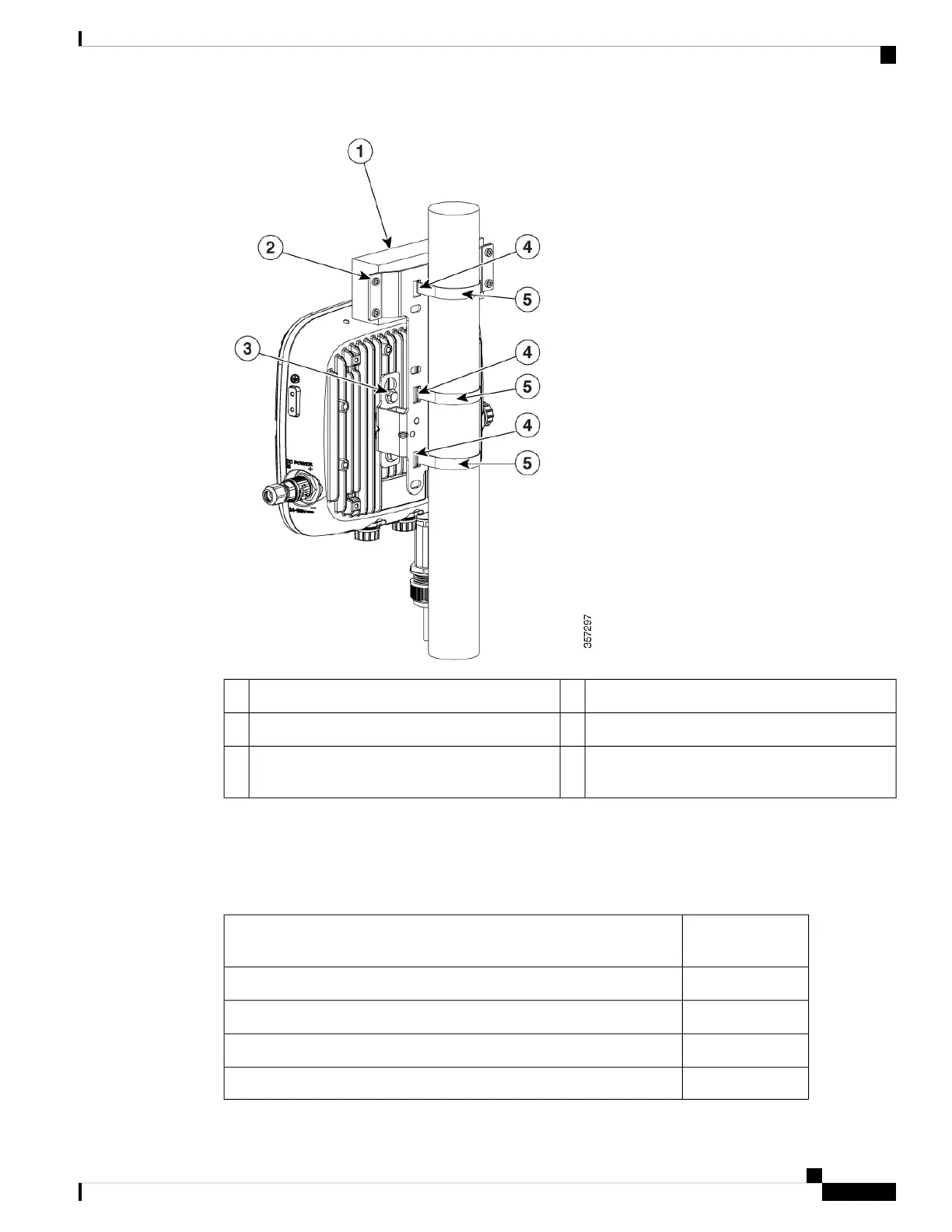

Band clamp slots for passing the clamps through.4Power supply1
Steel band clamps.5Screw holes for four #8-32 screws.2
One of four M6 keyhole slots for mounting the
AP on the bracket.
3
Before you begin
Ensure that you have the following materials before beginning to mount the AP to a pole:
Table 6: Materials Needed to Mount the AP using AIR-MNT-VERT2= Kit
Supplied in the
Kit?
Materials Needed
YesOne wall mount bracket
YesFour M6 x12 mm hex head bolts
YesFour #8-32 screws to mount the power supply
YesThree stainless steel band clamps (adjustable 2 to 5 inch (51 to 127 mm)
Cisco Catalyst 9124AX Series Outdoor Access Point Hardware Installation Guide
47
Installation Overview
Vertically Mounting the AP with DC Supply to a Pole

Cisco C9124AXE Specifications

General

Brand	Cisco
Model	C9124AXE
Category	Wireless Access Point
Language	English
