Catalyst 3560-C and 2960-C Switch Hardware Installation Guide
OL-23803-02
Chapter 2 Switch Installation
Mounting the Switch
Warning Read the wall-mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation to people
and damage to the system. Statement 378
Caution Do not wall-mount the switch with its front panel facing up. Following safety regulations, wall-mount
the switch with its front panel facing down or to the side, to allow sufficient airflow and to provide easier
access to the cables.

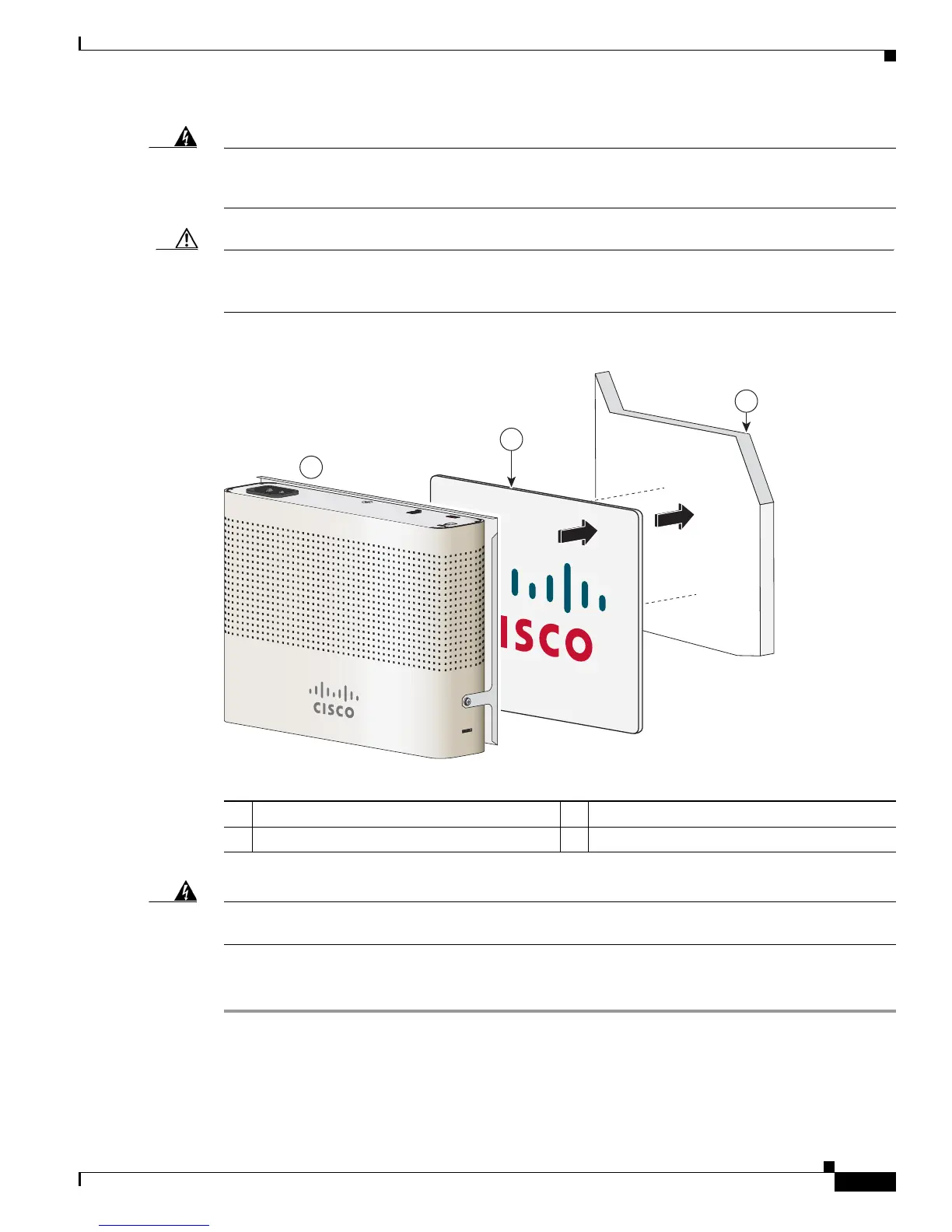

Figure 2-13 Wall-Mounting with a Magnet
Warning To prevent airflow restriction, allow clearance around the ventilation openings to be at least:
3 in. (7.6 cm) Statement 1076
After you mount the switch, see the “After Installing the Switch” section on page 2-31 for information
about configuring the switch.
1 Switch with the mounting tray attached 3 Metal wall
2 Magnet
209025
RESET
AUX 53V , 1.5A
3
2
1
