Mounting the Switch

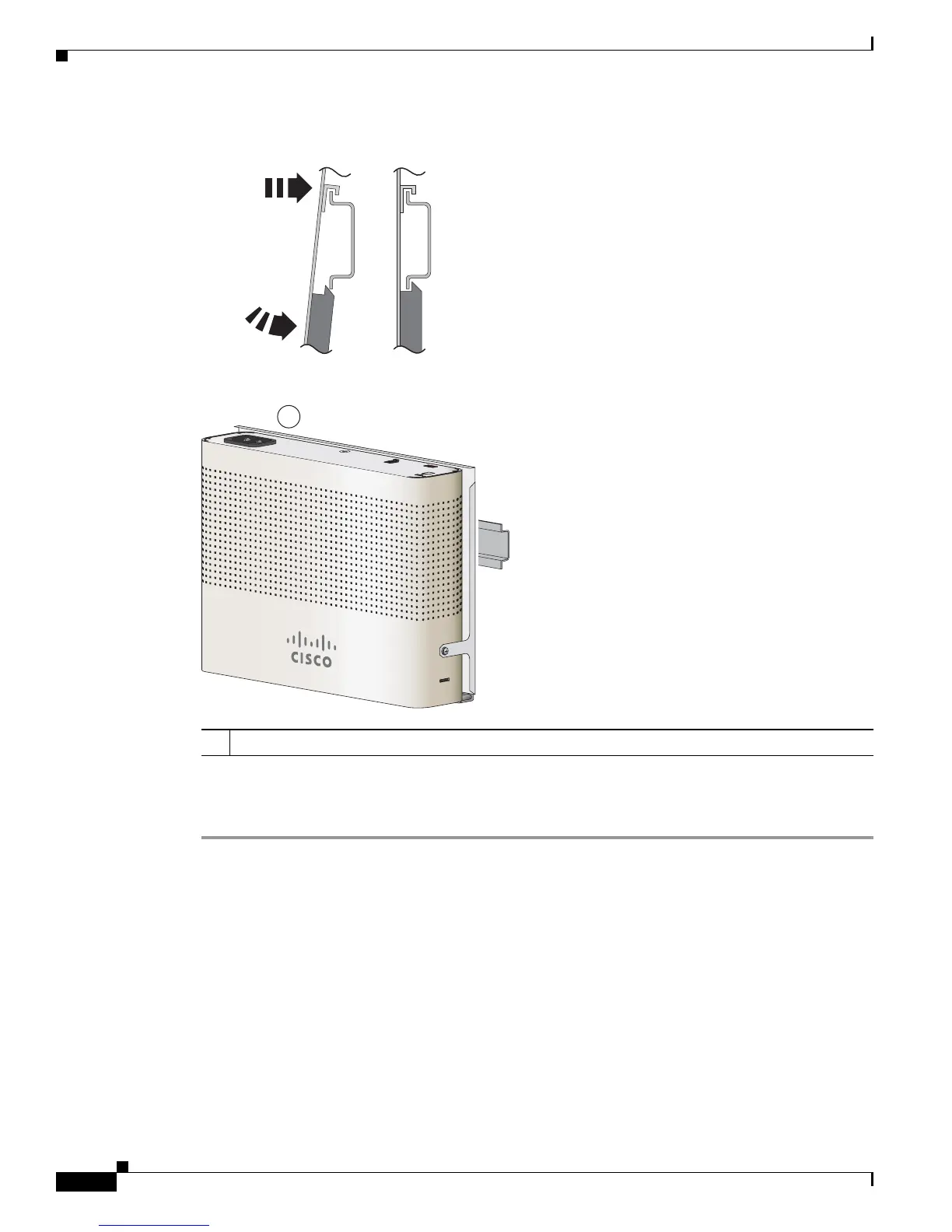

Figure 2-19 Mounting the Switch on a DIN Rail
Step 2
Rotate the switch down toward the DIN rail until the release tabs on the DIN rail mount clicks.
Step 3 Lift lightly on the bottom of the switch to ensure that it is firmly locked in place.
After you install the switch, see the “After Installing the Switch” section on page 2-31 for information
about the switch configuration.
1 Switch
