Chapter 2 Switch Installation
Installing the Cable Guard (Optional)
Step 2 Use the supplied number-10 pan-head screws to attach the cable guard to the switch. See Figure 2-29.

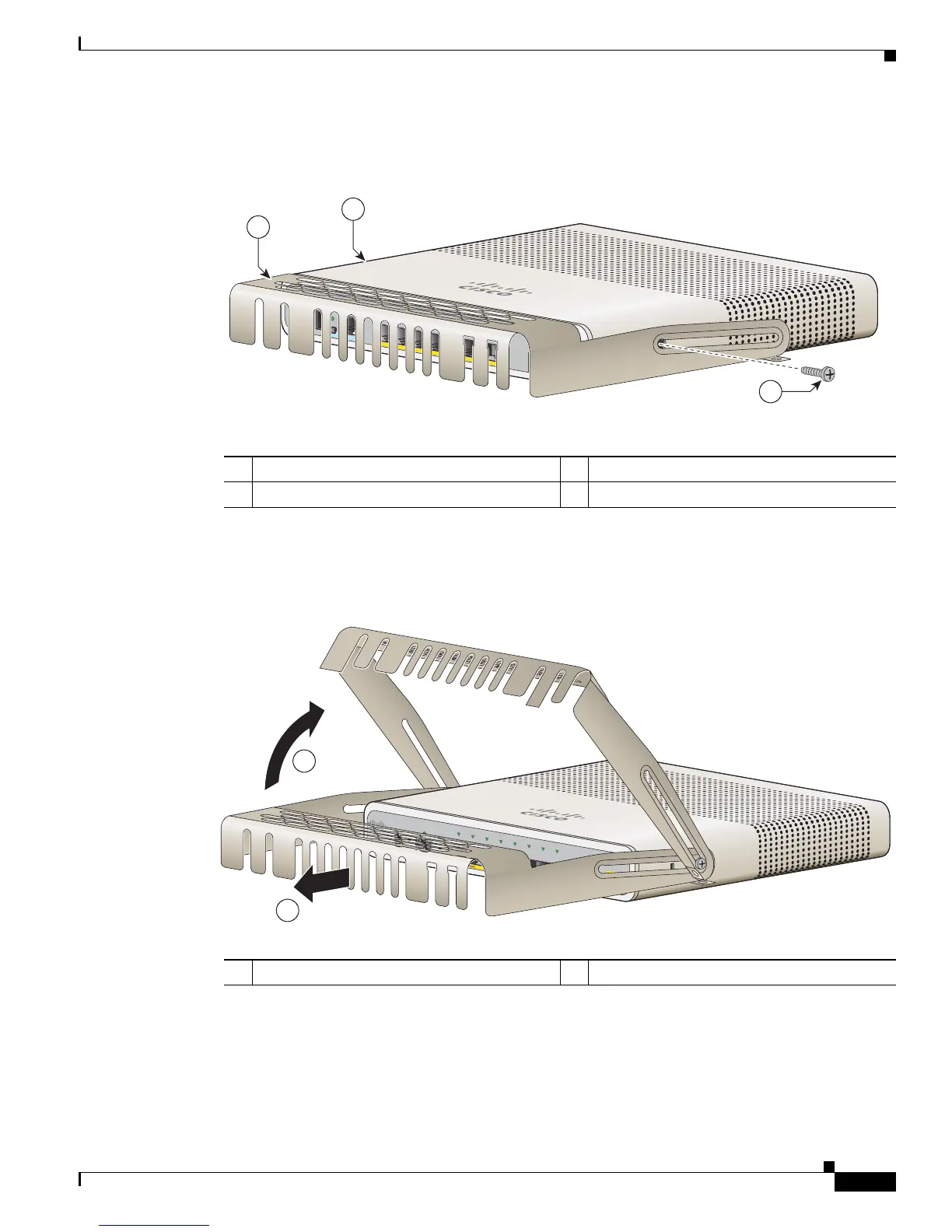

Figure 2-29 Attaching the Cable Guard to the Switch
Step 3
Loosen the number-10 Phillips pan-head screws, slide the cable guide out, and pivot it upwards so that
you can install the cables. See Figure 2-30.
Figure 2-30 Pivoting the Cable Guard Upwards
Attach the cables to the switch. See Figure 2-31.
1 Switch 3 Two number-10 Phillips pan-head screws
2 Cable guard
MODE
CONSOLE
1
2
Catalyst 2960-C
Series
PD
P
O
W
ER
O
V
ER
E
TH
ER
N
E
T
12345678
PD
SPD
PoE
DPLX
STAT
SYST
208916
2
1
3
1 Cable guard 2 Pivot direction for cable guard pivots
CONSOLE
1
2
Catalyst 2960-C
Series
PD
123
4
5678
PD
STAT
SYST
1
2
3
4
5
208917
1
2
