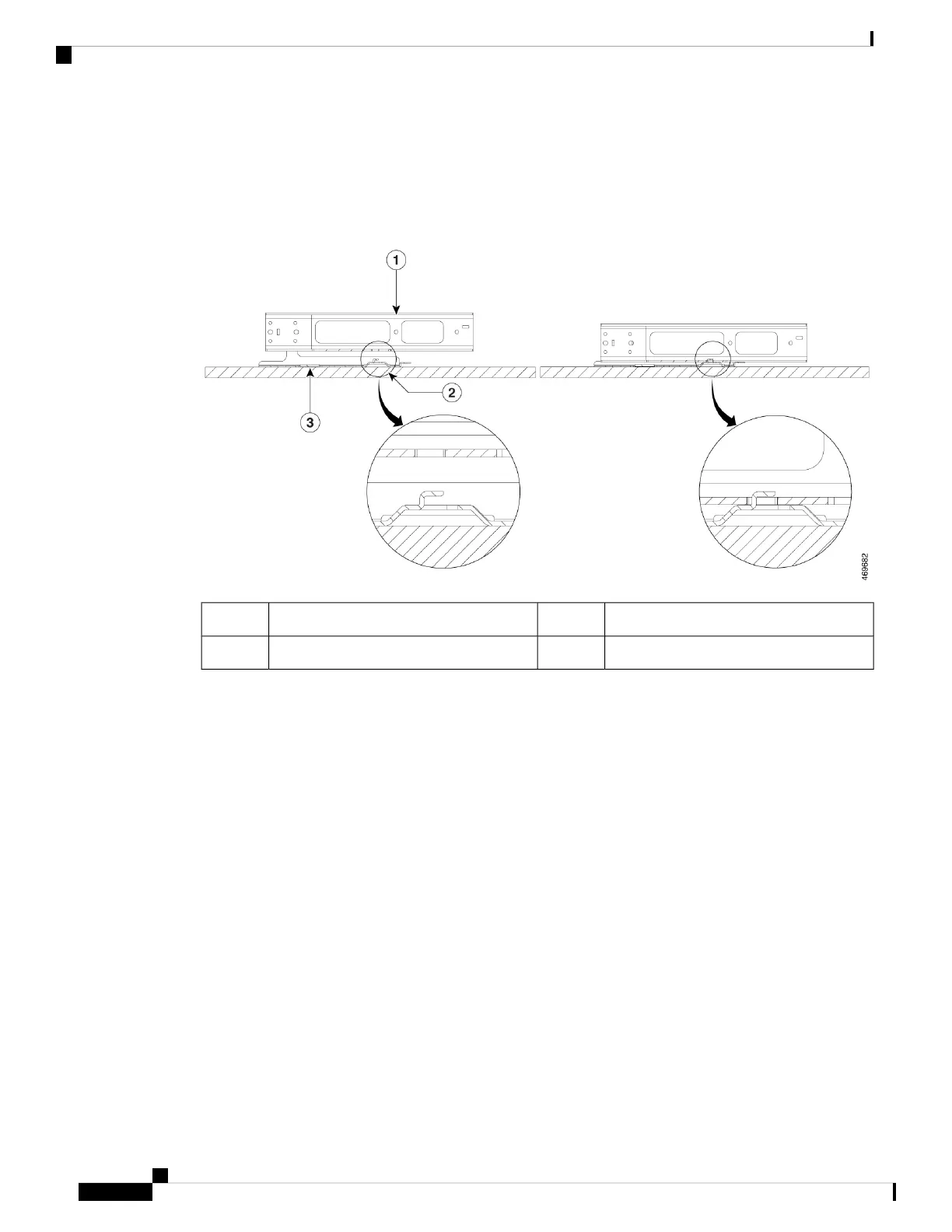

Figure 12: Aligning the Mounting Tray Hooks with the Switch
Mounting tray3Switch1
--Mounting tray hook2
To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in.
(7.6 cm) Statement 1076
Warning
Step 5 Secure the switch to the desk mount using the three 10-32 Phillips pan-head screws provided.
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
32
Installing a Compact Switch
Mounting Under a Desk or a Shelf
