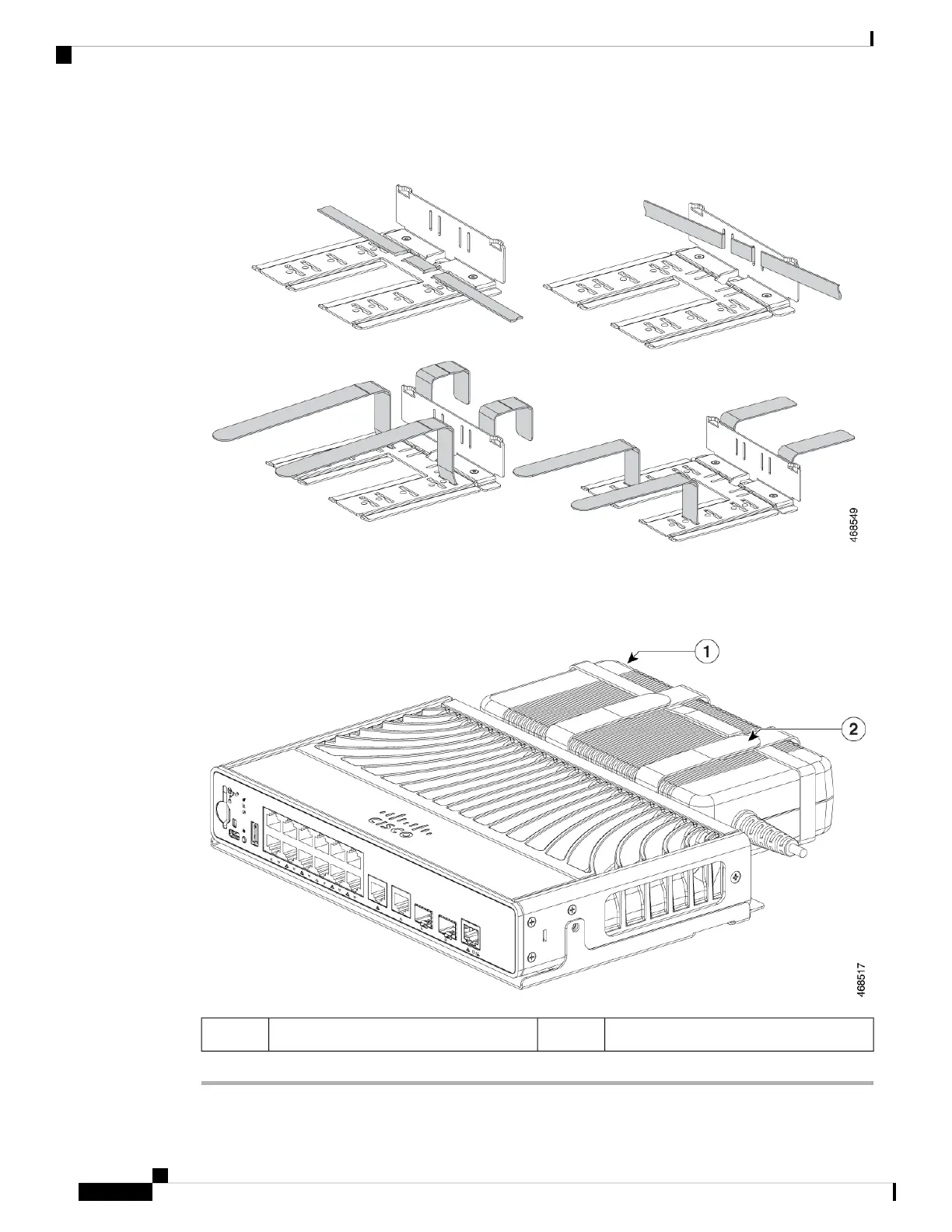

Figure 22: Threading the Velcro Strap through the Adapter Bracket
Step 3 Place the adapter into the power adapter bracket and secure it using the velcro straps provided.
Figure 23: Securing the Power Adapter to the Adapter Bracket
Velcro strap2Power adapter1
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
40
Installing a Compact Switch
Attaching the Adapter Bracket to the Switch (Optional)
