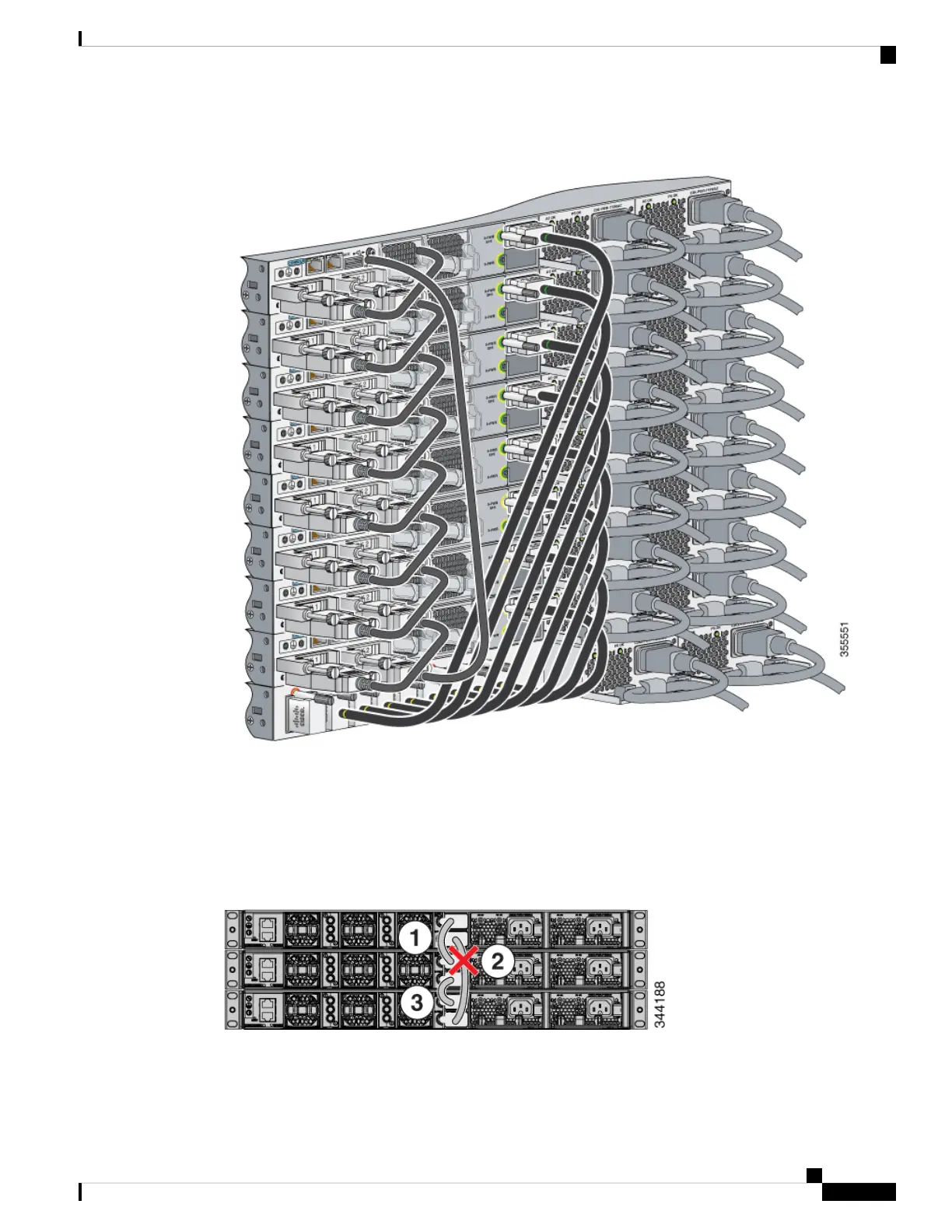

Figure 17: StackPower Star Topology
StackPower Partitioning Examples
These figures show StackPower stacks of switches with failover conditions.
In this figure, the StackPower cable 2 is faulty. Therefore, this stack does not provide redundancy.
Figure 18: Example of a StackPower Stack with a Failover Condition
In this figure, StackPower port B on the center switch has failed and this stack partitions into two stacks. The
top two switches share power, and the bottom switch is now a separate stack.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
31
Switch Installation
StackPower Partitioning Examples
