Cisco Catalyst C9300-48U User Manual

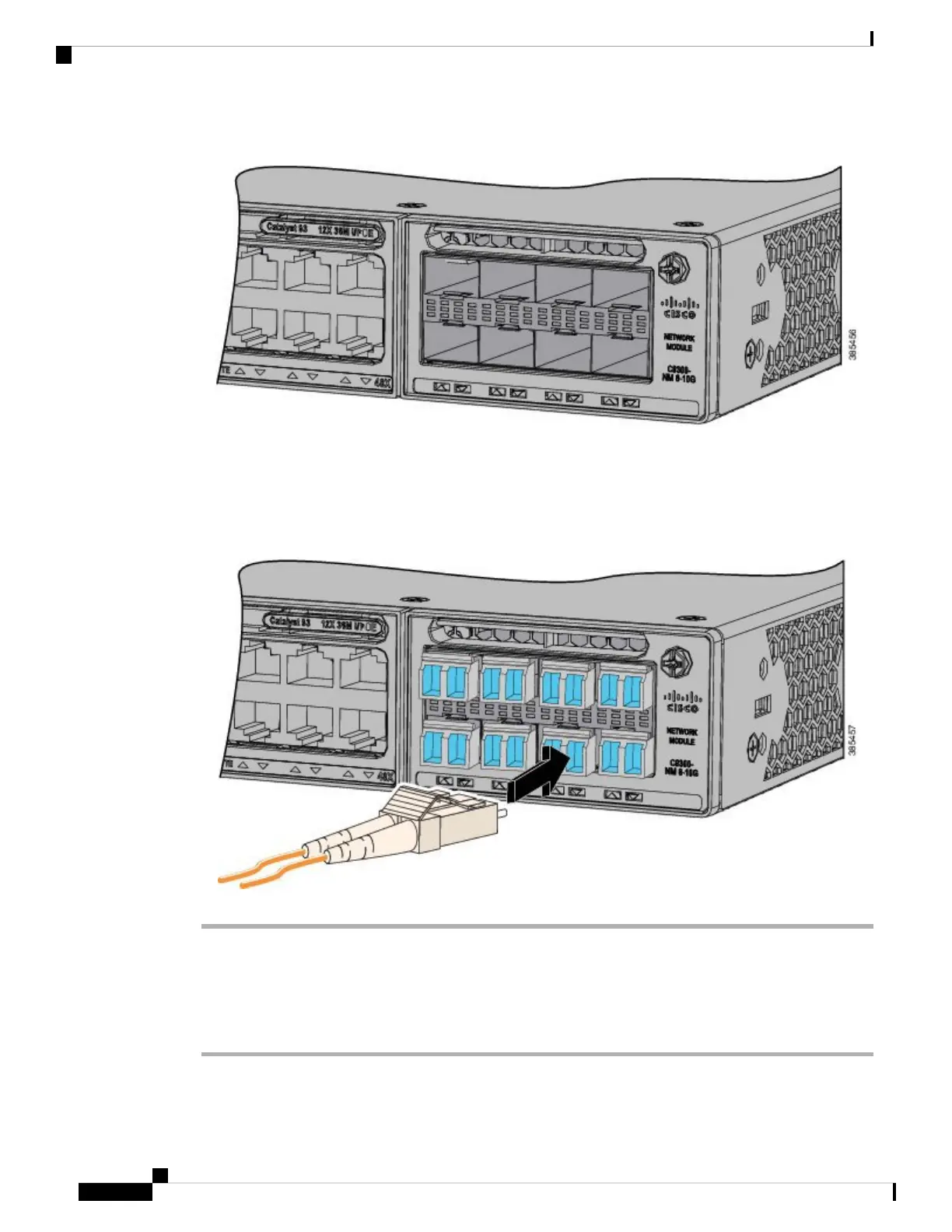

Figure 43: Installing a Pluggable Transceiver Module in the Network Module
Step 5 If the module has a bale-clasp latch, close it to lock the module in place.
Step 6 Remove the dust plugs and save.
Step 7 Connect the transceiver cables.
Figure 44: Network Module with Pluggable Transceiver Modules Installed
Removing Cisco Pluggable Transceiver Modules
Procedure
Step 1 Attach an ESD-preventive wrist strap to your wrist and to an earth ground surface.
Cisco Catalyst 9300 Series Switches Hardware Installation Guide
78
Installing a Network Module
Removing Cisco Pluggable Transceiver Modules

Cisco Catalyst C9300-48U Specifications

General

Model	C9300-48U
Stacking Bandwidth	480 Gbps
DRAM	8 GB
Flash Memory	16 GB
Stackable	Yes
PoE+	Yes
UPOE+	Yes
Power Supply	715W AC
Operating Temperature	-5 to 45°C
Ports	48 x 10/100/1000 UPOE+ ports
Dimensions	1.73 x 17.5 x 17.5 in. (4.4 x 44.5 x 44.5 cm)
