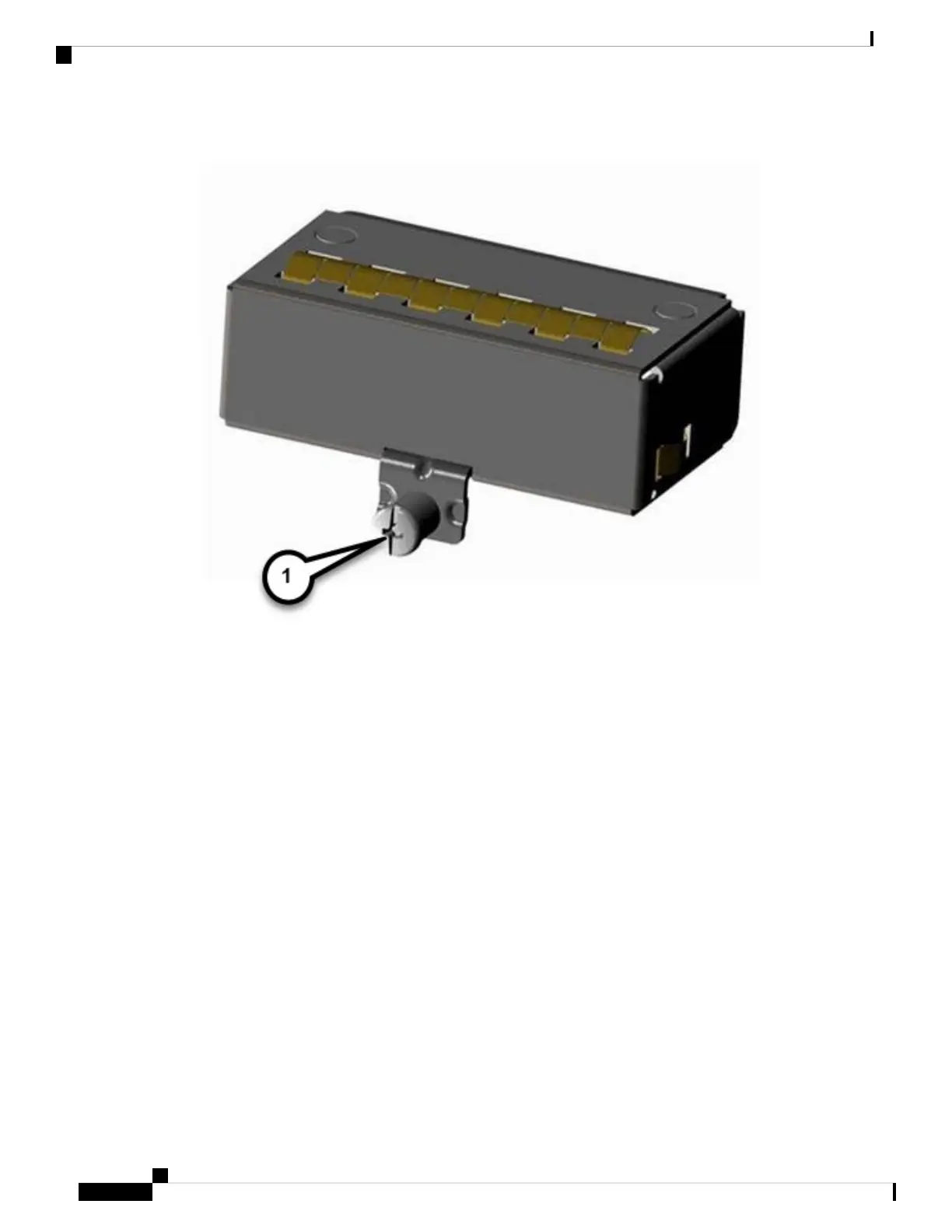

Figure 21: Latch Lock Screw
Step 2 Slide the blank plate out of the device.
Step 3 Slide the Wi-Fi Module into the device as shown in the following graphic. The latch lock screw (1) aligns
with the screw hole (2) on the face of the device. Push the Wi-Fi Module all the way into the device until you
feel it seat, and then torque the latch lock screw 8-10 inch-pound (0.9 to 1.1 newton meter).
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
60
Cisco Wi-Fi Interface Module (WIM)
Installation
