Cisco Ceiling Microphone - Installation Procedures; Step 2: Insert Plugs into Top Plate; Step 3: Attach Wires and Hooks; Step 4: Mount Vertical Plate

Installation Guide for Cisco TelePresence Ceiling Microphone
78-100552-01C0r1 | 2016 FEBRUARY | © 2016 Cisco Systems, Inc. All rights reserved.
Page 5
2

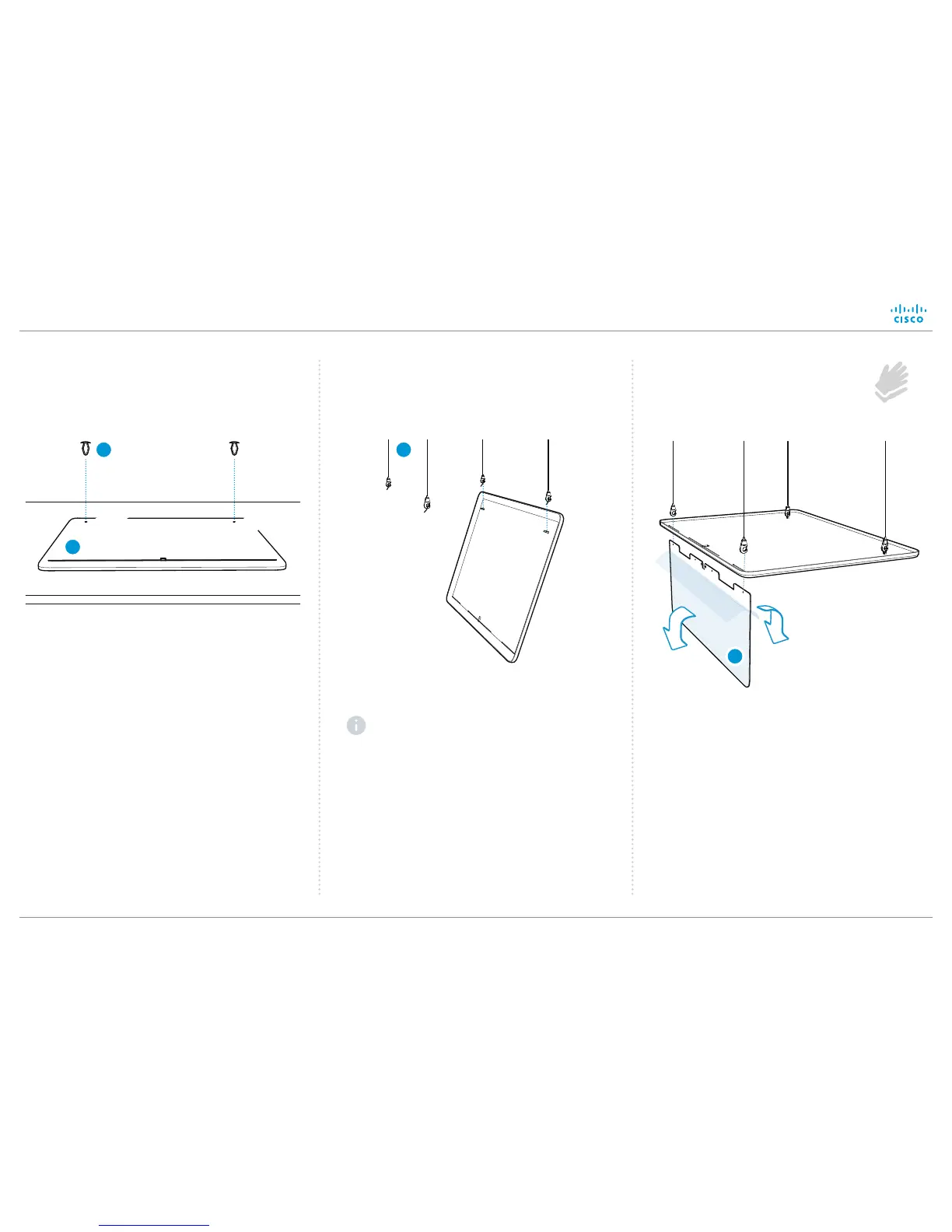

Insert plugs into top plate
A
B
Click Click
3
Attach wires to ceiling and attach
hooks to plugs
For ceiling placement, refer to Step 1.
Make sure that you use ceiling mounts
suitable for your ceiling.
C
4
Remove protection foil
and mount vertical plate
D
