Cisco CWDM Passive Optical System Installation Note
78-16565-02
Overview
Warning
Use of controls, adjustments, or performing procedures other than those specified may result in
hazardous radiation exposure.
Statement 1057

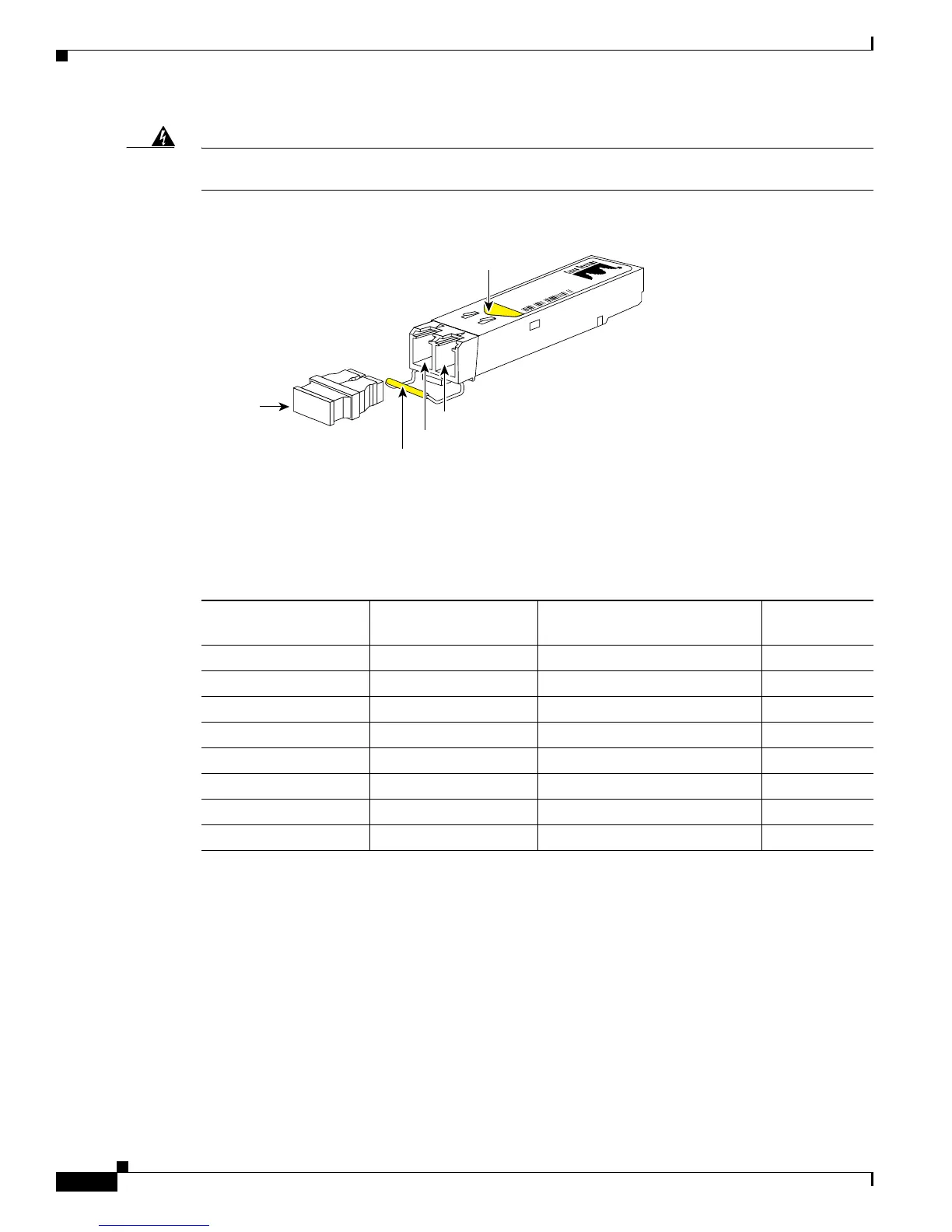

Figure 14 CWDM SFP
The CWDM GBIC and CWDM SFP transceivers are available in eight wavelengths. (See Table 4.) Each
CWDM GBIC and CWDM SFP transceiver is color coded to match the connector colors on the OADM
modules.
For information on installing, removing, and maintaining the CWDM GBIC and SFP transceivers, refer
to the Cisco CWDM GBIC and CWDM SFP Installation Note that accompanies the CWDM GBIC and
CWDM SFP transceivers.
113753
CW
DM-SFP-1470-2G
Class 1 21CFR1040.10
LN#50 7/01 03-13
S/N: OH1233456
Color arrow on label
Receive optical bore
Transmit optical bore
Bail clasp
Dustplug
Table 4 CWDM GBIC and SFP Transceiver Color Codes
GBIC Transceiver
Product Number
SFP Transceiver
Product Number Description
Connector
Color Code
CWDM-GBIC-1470= CWDM-SFP-1470= 1000BASE-CWDM, 1470 nm Gray
CWDM-GBIC-1490= CWDM-SFP-1490= 1000BASE-CWDM, 1490 nm Violet
CWDM-GBIC-1510= CWDM-SFP-1510= 1000BASE-CWDM, 1510 nm Blue
CWDM-GBIC-1530= CWDM-SFP-1530= 1000BASE-CWDM, 1530 nm Green
CWDM-GBIC-1550= CWDM-SFP-1550= 1000BASE-CWDM, 1550 nm Yellow
CWDM-GBIC-1570= CWDM-SFP-1570= 1000BASE-CWDM, 1570 nm Orange
CWDM-GBIC-1590= CWDM-SFP-1590= 1000BASE-CWDM, 1590 nm Red
CWDM-GBIC-1610= CWDM-SFP-1610= 1000BASE-CWDM, 1610 nm Brown
