Chapter 4 Supporting the Hard Disk Drive Test
For single-site systems, the Broadcast File Server List window opens. Click
File and select All Sites.
For multiple-site (RCS-enabled) systems, the Please Select a Site window
opens.
3 Click File and select New Server. The Set Up Server window opens.
4 Enter the following data into the fields of the Set Up Server window:
Click the Server Name arrow and select hddtest.
Click the 2-way Mode option.
From the Available Sources list, select Out of Band.
Click Add.

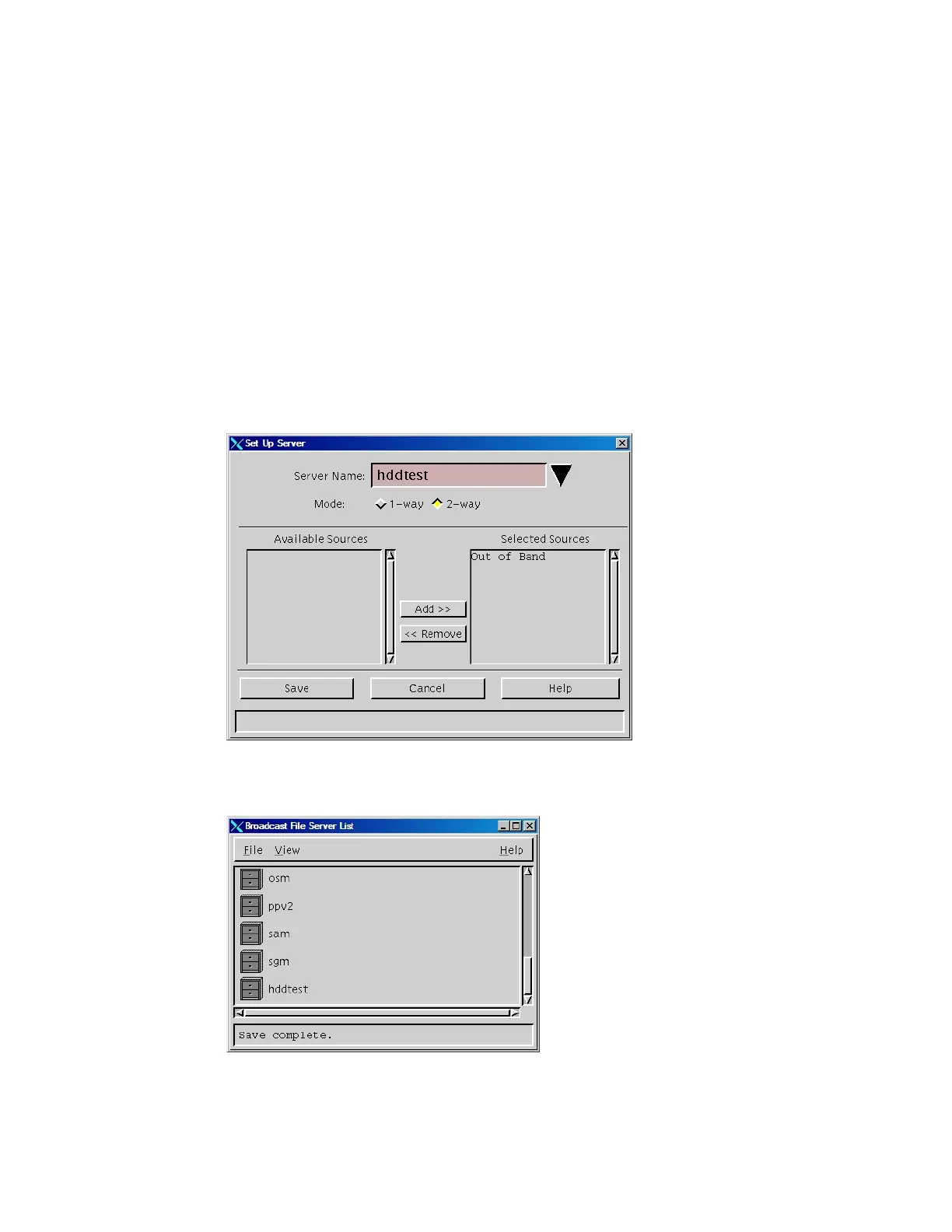

Result: The Set Up Server window is configured as shown in the following
example.
5 Click Save to save your changes and close the Set Up Server window. The
hddtest server has been registered with the BFS. As a result, the hddtest appears
in the Broadcast File Server List, similar to the following example.
