Cisco Explorer 8640HD - Connecting to an HDTV with a 1394 Connector; Connecting the Set-Top in HD Mode to an SDTV with Component Input (Ypbpr)

17

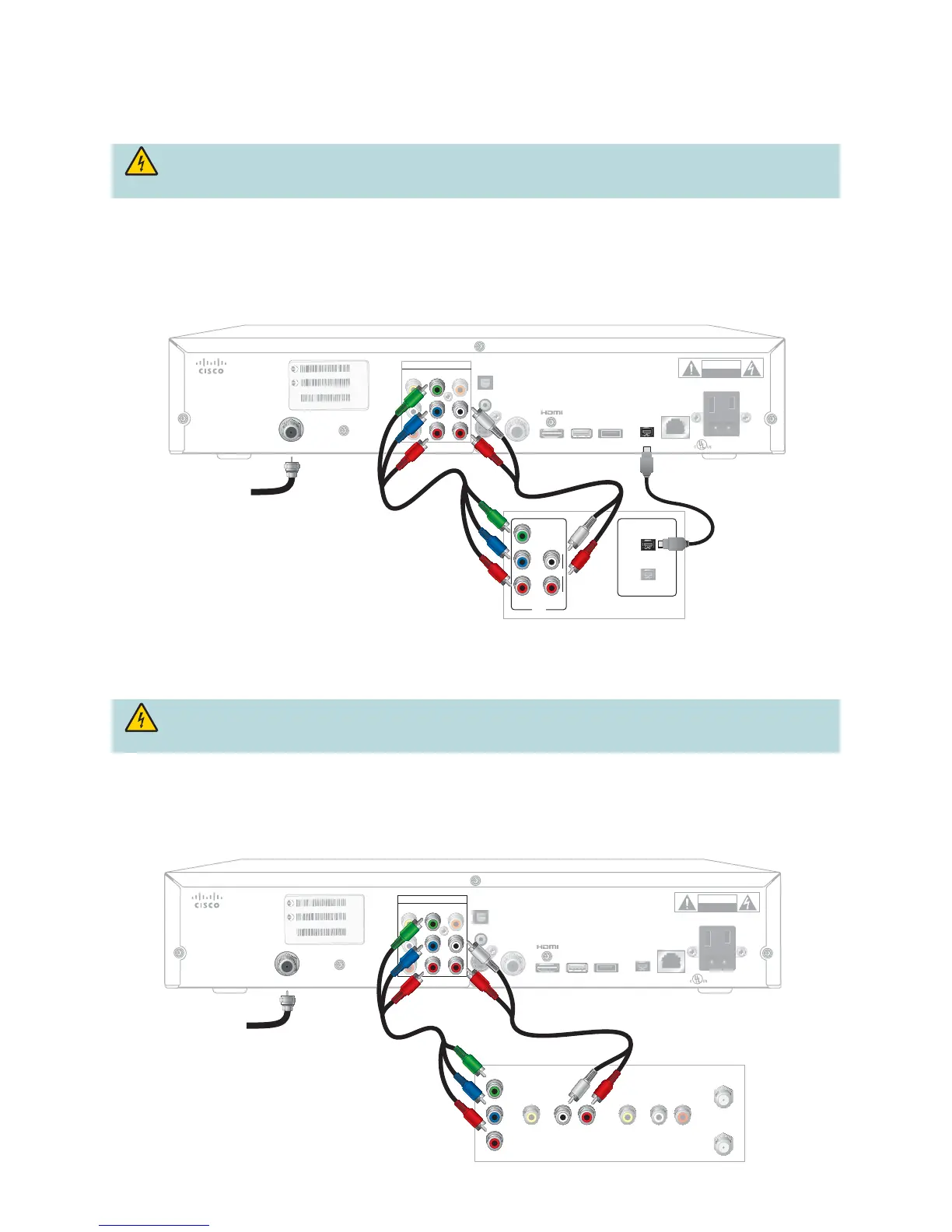

Connecting the Set-Top in HD Mode to an SDTV with
Component Input (YPbPr)
Connecting to an HDTV with a 1394 Connector
WARNING: Electric shock hazard! Unplug all electronic devices before connecting or disconnecting
any device cables to the set-top.
Note: The set-top must be set to the
proper output mode, typically 480i.
Important: When you connect the set-top
to your TV using 1394, you must make the
additional video and audio connections to
your TV to receive analog signals.
WARNING: Electric shock hazard! Unplug all electronic devices before connecting or disconnecting
any device cables to the set-top.
Required cables:
• 1 4-pin to 4-pin 1394 cable (Consult your TV user guide)
• 1 audio Left/Right cable
• 1 component video cable with 3 connectors (YPbPr)
Back of Set-Top
CATV CONVERTER
MADE IN MEXICO
LISTED 14H1
VIDEO PRODUCT
AVI S: RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
S-VIDEO
OUT
OPTICAL
AUDIO
OUT
IR
DIGITAL
AUDIO
OUTPUT
R Pr R
L Pb L
YVIDEO
CABLE IN
WITH MoCA
120V~
60Hz 80W
120 VAC
60Hz 4.2A
500W
CABLE OUT
USB 2.0 eSATA
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
SCIENTIFIC-ATLANTA, INC.
eCM MAC: 001AC3F4F757
STB RF MAC: 001AC3F$F756
STB SN: SABPQBQGD
ETHERNET1394
Back of HDTV
VIDEO
IN
1394 IN
IN
HD 1
Y
PB
PR
L
R
AUDIO
Cable
Input
T14595
Back of Set-Top
CATV CONVERTER
MADE IN MEXICO
LISTED 14H1
VIDEO PRODUCT
AVI S: RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
S-VIDEO
OUT
OPTICAL
AUDIO
OUT
IR
DIGITAL
AUDIO
OUTPUT
RPrR
LPbL
YVIDEO
CABLE IN
WITH MoCA
120V~
60Hz 80W
120 VAC
60Hz 4.2A
500W
CABLE OUT
USB 2.0 eSATA
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO
RECEIVE OVER-THE-AIR BROADCAST
SIGNALS. CONNECTION OF THIS DEVICE
IN ANY OTHER FASHION MAY CAUSE
HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS AND IS IN VIOLATION
OF THE FCC RULES, PART 15.
SCIENTIFIC-ATLANTA, INC.
eCM MAC: 001AC3F4F757
STB RF MAC: 001AC3F$F756
STB SN: SABPQBQGD
ETHERNET1394
Back of SDTV
RF OUT
RF IN
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
Y
PB
PR
Cable
Input
T14596
Required cables:
• 1 component video cable with 3 connectors (YPbPr)
• 1 audio Left/Right cable
