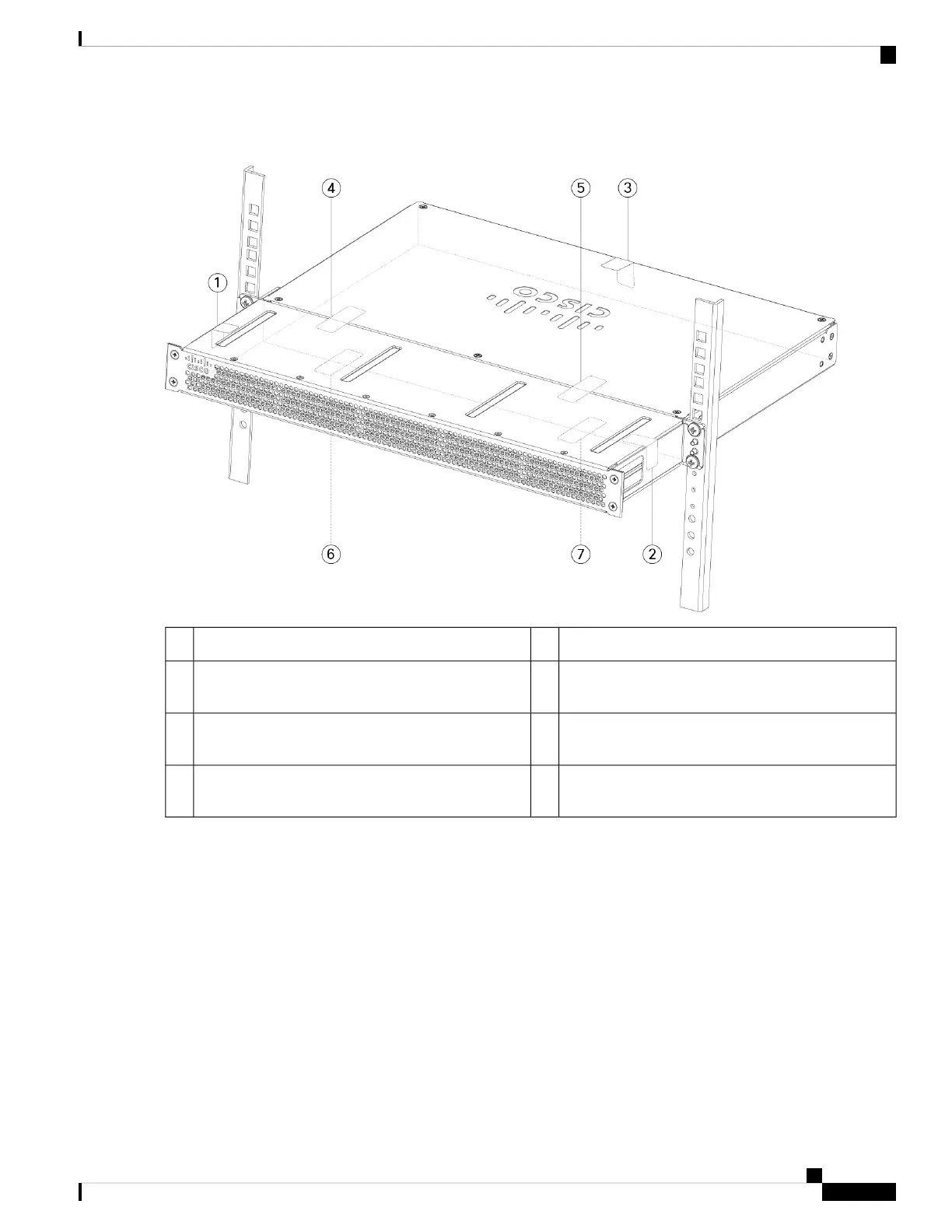

Figure 29: TELs Placement on the Chassis
TEL 2 on the right side and top of chassis2TEL 1 on the left side and top of chassis1
TEL 4 across the FIPS shield and the chassis (towards
the left of the chassis)
4TEL 3 on the top and back of chassis3
TEL 6 on the bottom of the chassis towards the left
side of the chassis
6TEL 5 across the FIPS shield and the chassis (towards
the right of the chassis)
5
—TEL 7 on the bottom of the chassis towards the right
side of the chassis
7
Step 9 Attach the power cable to the chassis and connect it to an electrical outlet.
Step 10 Press the power switch on the rear panel.
Step 11 Check the power LED on the front panel. See Rear Panel LEDs, on page 9 for a description of the power LED. Solid
green indicates that the chassis is powered on.
Step 12 Place the chassis in FIPS mode.
See the following procedures for how to place the chassis in FIPS mode:
• ASA in Platform Mode
• ASA in Appliance mode
Cisco Firepower 1100 Series Hardware Installation Guide
37
Installation, Maintenance, and Upgrade
Install the FIPS Opacity Shield in a Two-Post Rack

Cisco Firepower 1140 Specifications

General

Processor cores	16
Processor family	Intel
Built-in processor	Yes
Firewall throughput	2200 Mbit/s
IPSec VPN throughput	1.2 Gbit/s
Maximum firewall connections	400000
Maximum firewall connections per second	100000
Wi-Fi	No
Supported network protocols	SMTP
Console port	RJ-45
Connectivity technology	Wired
SFP module slots quantity	4
Ethernet LAN (RJ-45) ports	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
SSD capacity	200 GB
Storage media type	SSD
Form factor	1U
Input current	2 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	100 W
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Country of origin	Mexico
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	1409.7 mm
Package width	990.6 mm
Package height	457.2 mm
Package weight	5782.31 g

Weight and Dimensions

Depth	436.9 mm
Width	268.7 mm
Height	43.7 mm
