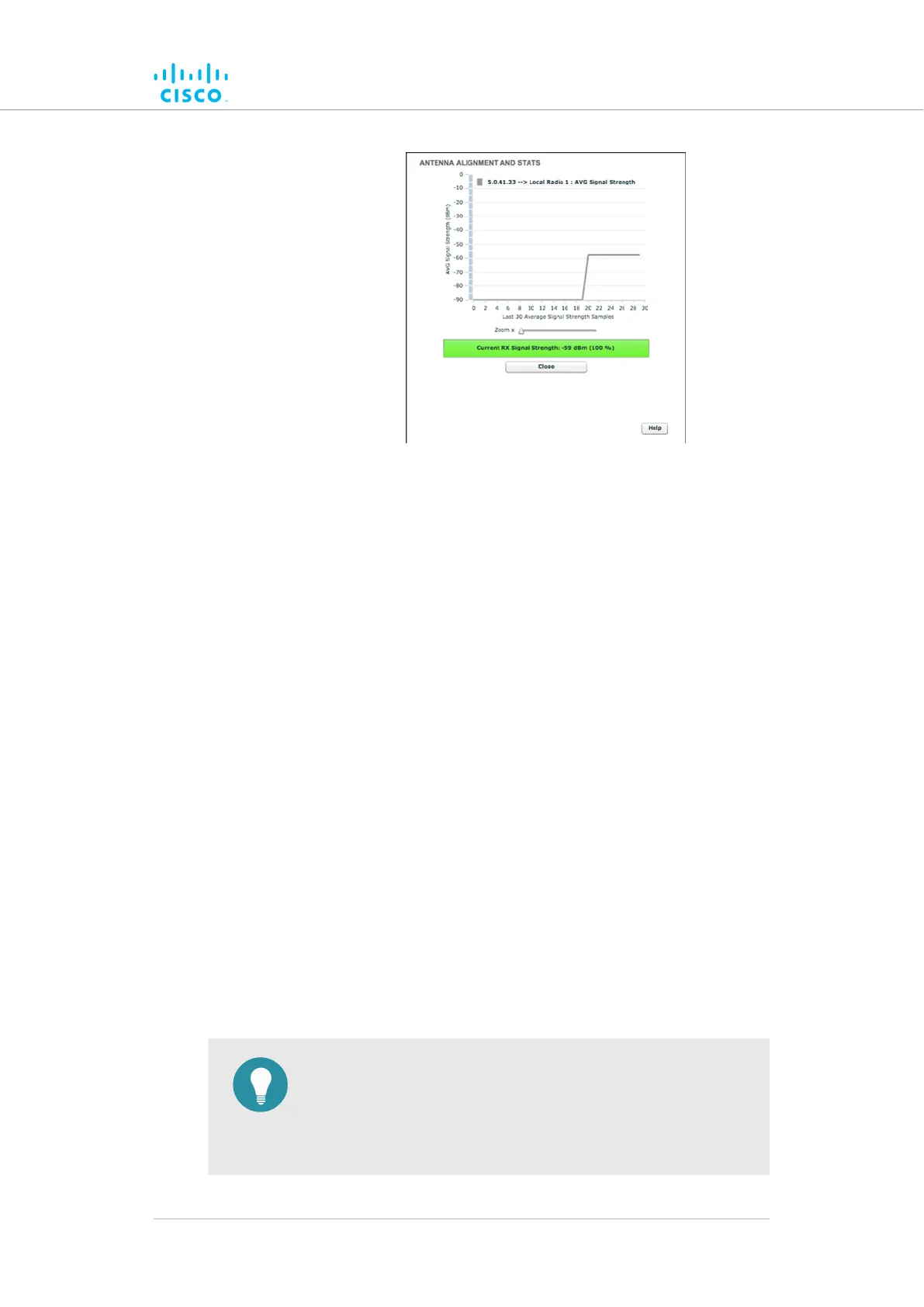

Figure 27. Antenna alignment and stats tool
4. The tool consists of:
• A graph that reports average signal strength over the last
30 strength-sampling periods.
• A bar that reports the quality of the signal currently being
detected at the local unit receiver.
5. Do the physical antenna alignment by manually adjusting the
location and direction of the relevant antenna. During the
alignment, use the graph and bar readings to monitor variations
in signal strength.
6. To increase the readability of the average signal strength graph,
click-and-drag the Zoom x slider.
7. When the antenna alignment is complete, click the Close button.
• The antenna alignment and stats tool will be closed.
7.6. Network control
7.6.1. Ping softdog
The PING SOFTDOG window contains controls to set up a constant
series of pings to one or more IP addresses.
If connectivity is lost between the unit and any of the saved IP addresses,
an option can also be set to automatically reboot the Cisco FM4500 Mobi.
TIP
As well as being a fail-safe mechanism to monitor network
connectivity, the constant ping can also be used as a 'keep-
alive' message to devices that need uninterrupted connectivity,
such as VoIP telephones.
