Connections for a Standard-De nition TV (SDTV)
When using the receiver with an SDTV, you must make one of the following connections to view
content. Some SDTVs may not have all these connections. Refer to the owner’s manual for your TV
and the cabling diagrams in this manual for more detailed information.
Although all connections provide you with quality service, we list the connections in our
recommended order.
Notes:
• The labeling on your receiver or SDTV may vary slightly from the illustrations shown below.
• Some cables shown in the connection diagrams may not be included with this receiver.

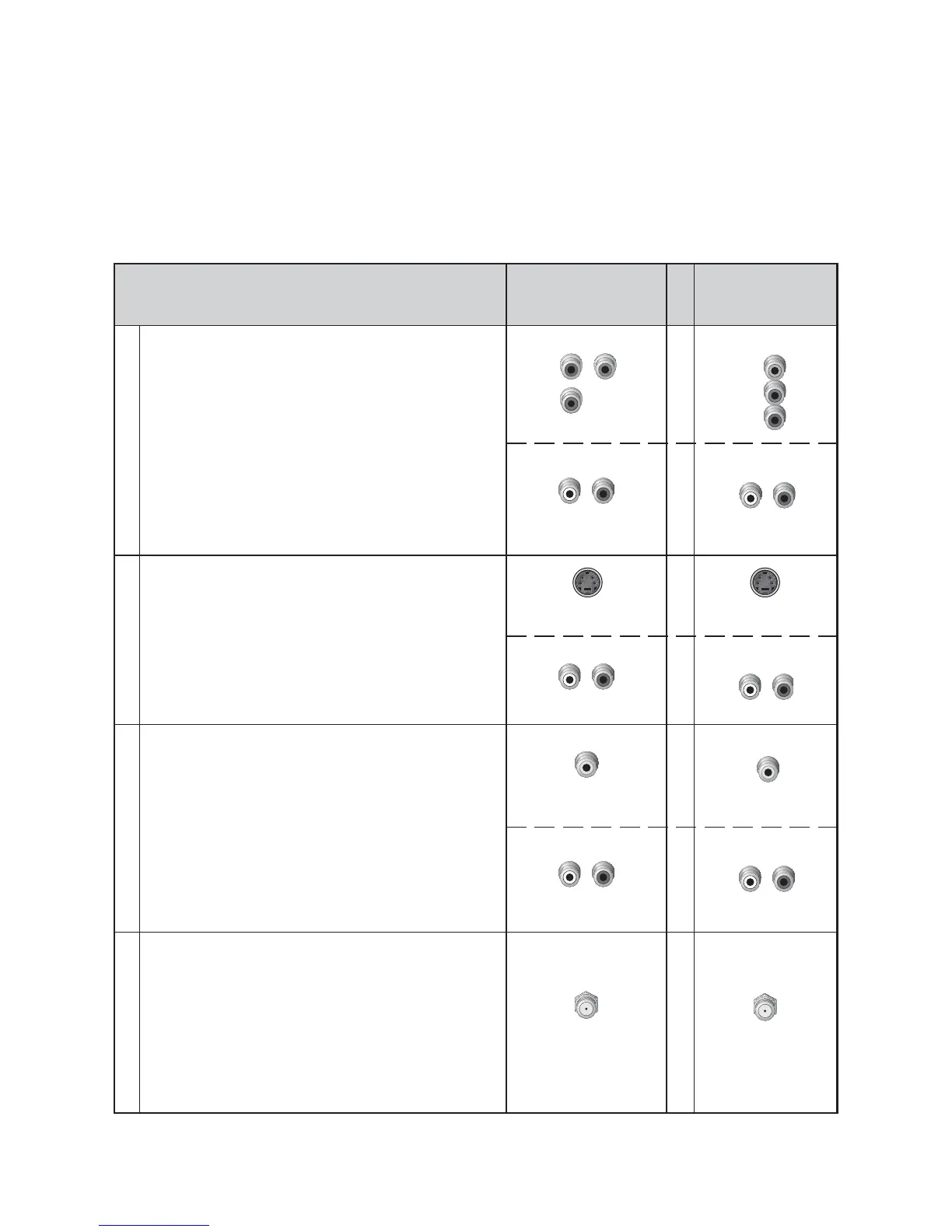

The YPbPr (red, blue, and green) connectors
can provide standard-de nition component
video signals to an SDTV. A separate audio
connection is also needed.
See the connection diagram on page 18 for an
example.
SDTV
Connections
Use One of These Required Connections
to an SDTV
Receiver
Connections
The S-Video connection provides an optimal
video connection to SDTVs. A separate audio
connection is also needed.
See the connection diagram on page 19 for
an example.
Audio/Video
The Video Out connector provides a video
connection to an SDTV. A separate audio
connection is also needed.
See the connection diagram on page 20 for
an example.
S-VideoTo TV (Video Out)
Video Out
To Next Page
