Cisco ISB7000 User Manual

22
Connecting to a Home Theater System
with Component (YPbPr) Connectors
Cables Used in this Con guration
• 1 Component Video Cable (YPbPr)
• 1 Audio Left/Right Cable (You can also use an optical cable [indicated by the dotted line] instead
of the Audio Left/Right Cable as shown in the diagram.)
Notes:
• This connection requires that audio is provided by the home theater system.
• Consult the user guide that came with your home theater system for information on connecting your
other video and audio devices.
Contact AT&T ConnecTech
®
service to learn about a ordable  at-rate home theater installation
services. Call (800) 344-1734 to speak with an AT&T ConnecTech Representative. (Not available in all
areas; See o ers and terms & conditions at www.att.com/ConnecTech).
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.

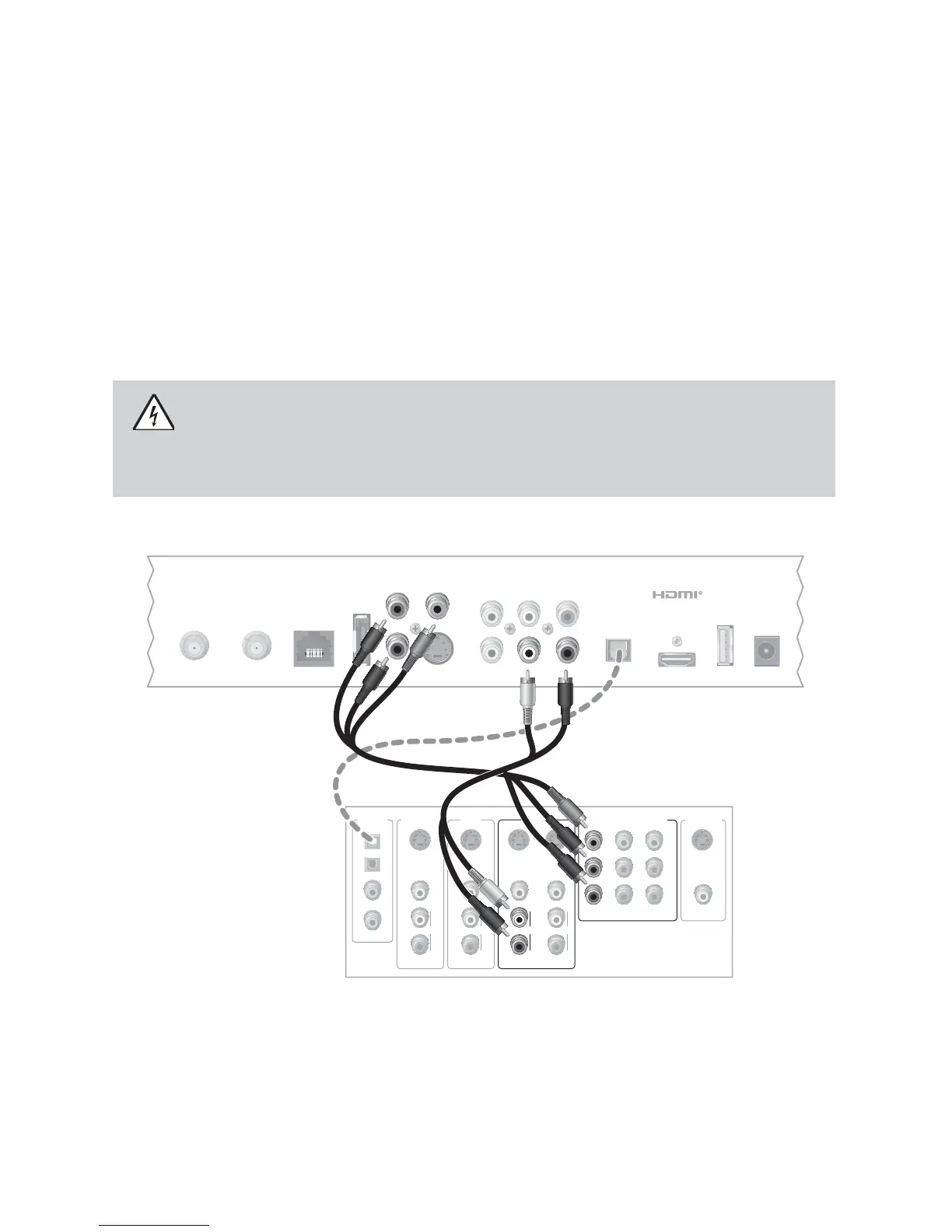

T15914
Receiver
Pb
Y
P
r
V
IDEO
OU
T
AUDI
O
OU
T
T
O WALL
(
VIDEO IN
)
T
O TV
(
VIDEO OUT
)
L
R
NETWORK
e
SAT
A
OPTICAL
P
OWER
U
SBS-VIDEO
HDMI
Pb Y
Pr
AUDIO
OUT
Back of Home
Theater Receiver
COMPONENT VIDEO
1
Y
PB
PR
2
Y
PB
PR
Y
PB
PR
S-VIDEO
DIGITAL
AUDIO
TV/CABLE
1
2
3
4
VIDEO
L
R
AUDIO
S-VIDEO
DVD
VIDEO
L
R
AUDIO
VIDEO
L
R
AUDIO
S-VIDEO
VIDEO 1
S-VIDEO
OUT
VIDEO OUT
MONITOR
VIDEO
L
R
AUDIO
S-VIDEO
OUTIN
OUTIN
OR
