Cisco ISB7105W - Connecting to an SDTV with Component (Ypbpr) Connectors

19
Connecting to an SDTV with Component (YPbPr)
Connectors

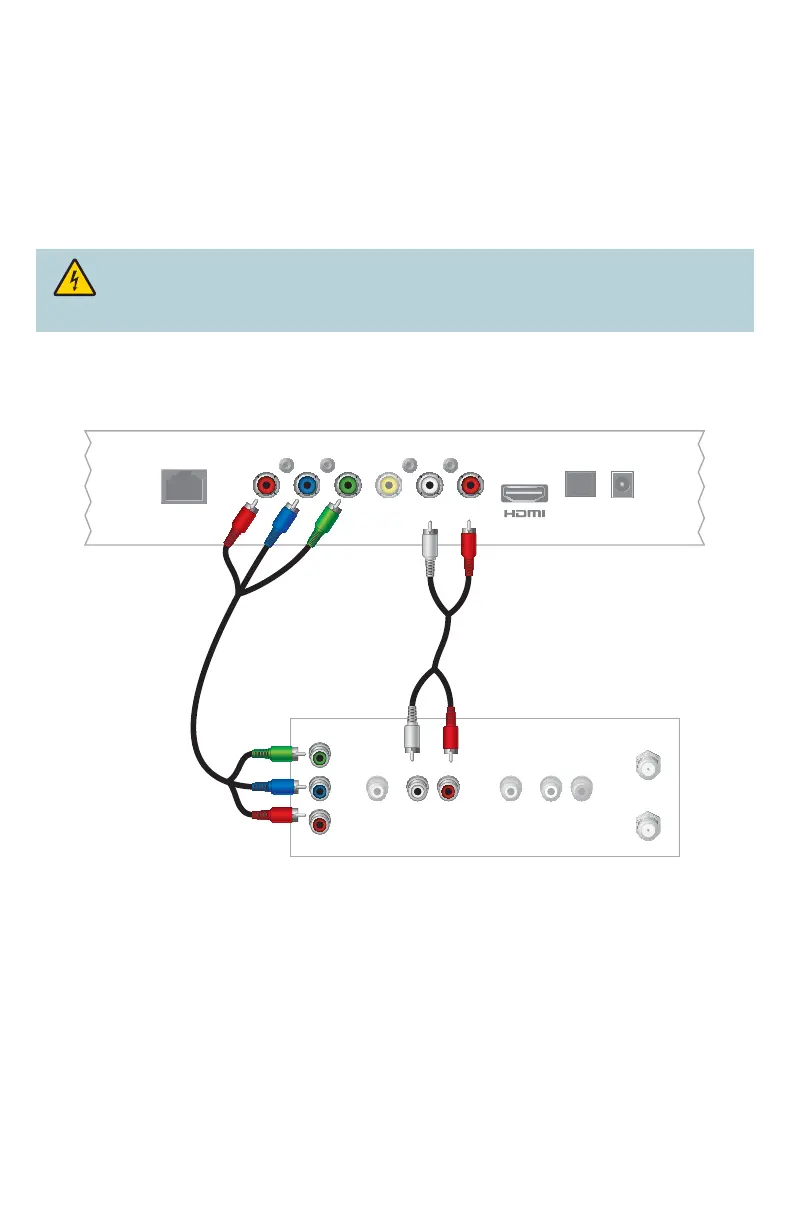

Cables Used in this Con guration
• 1 Component Video Cable (YPbPr)
• 1 Audio Left/Right Cable
Note: The receiver must be set to the proper standard-de nition mode.
WARNING: Electric shock hazard! Unplug all electronic devices before
connecting or disconnecting any device cables to the receiver.

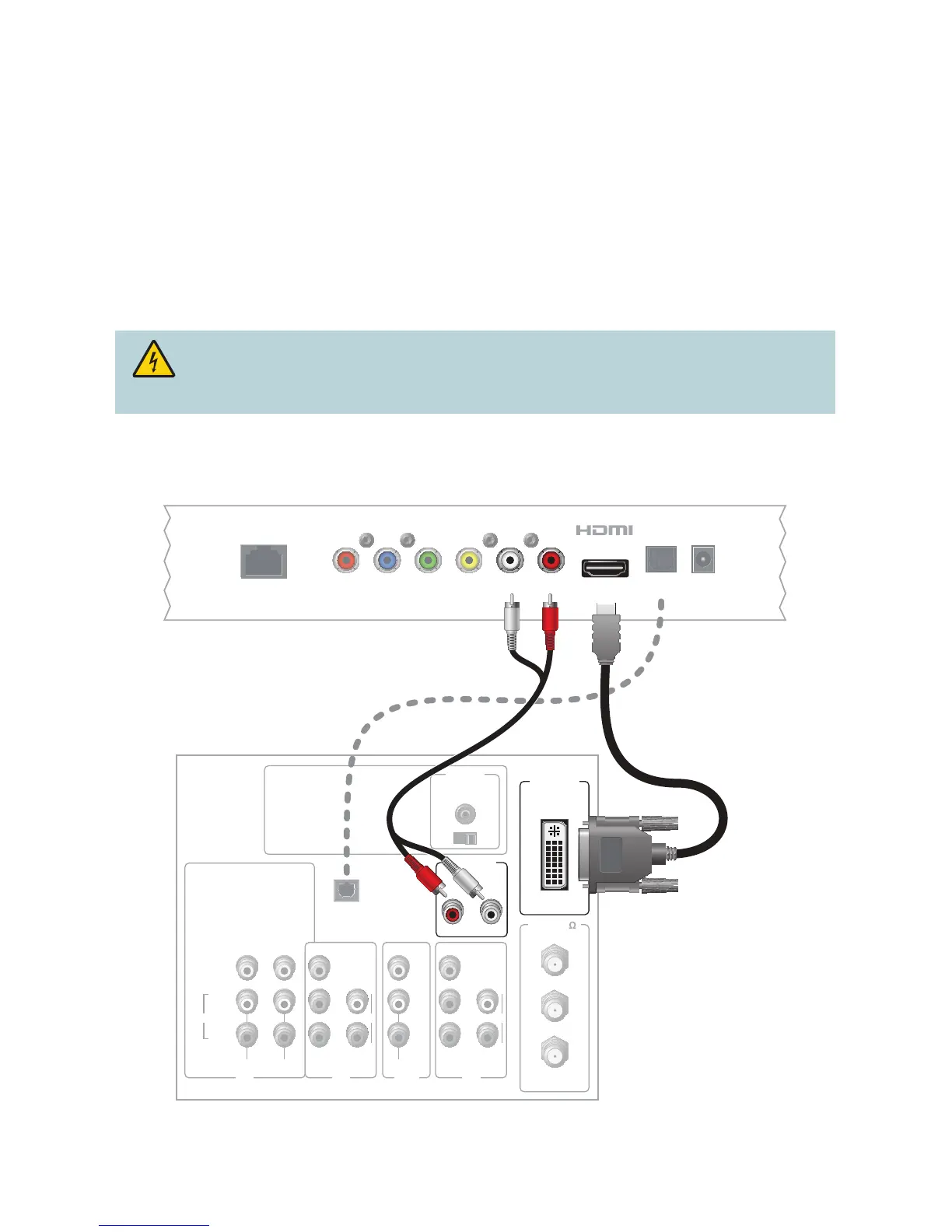

Receiver
NETWORK
LR
Pr Pb Y VIDEO
OUT
AUDIO
OUT
OPTICAL POWER
Back of SDTV
CABLE OUT/
ANT OUT
CABLE IN/
ANT IN
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
Y
PB
PR
T15777
