Cisco PIX-515E User Manual

10

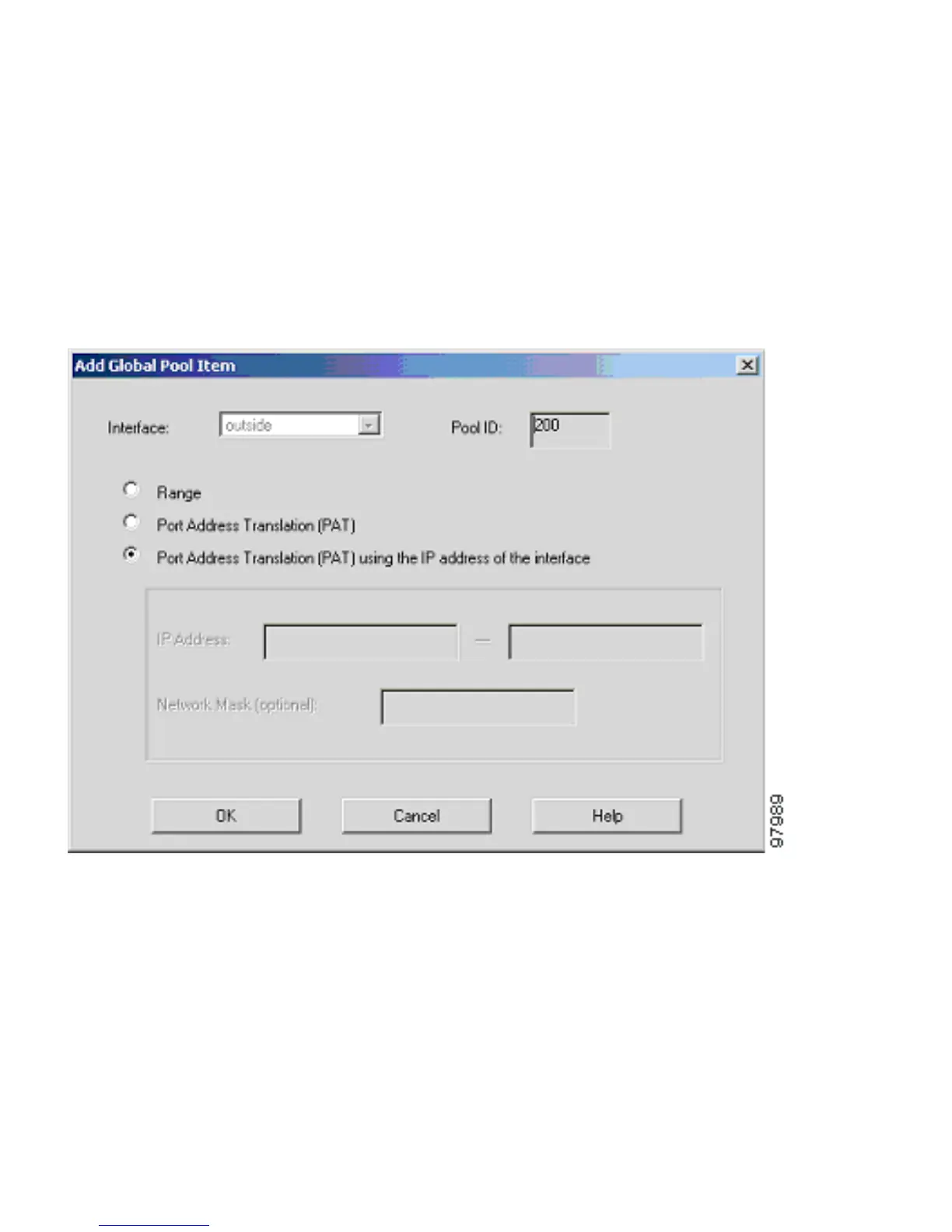

When the new window comes up:
a. Select outside from the Interface drop-down menu.
b. Click the Port Address Translation (PAT) using the IP address of the interface radio button.
c. Assign the same Pool ID for this pool as in Step d above (200).
d. Click the OK button.
Once the pools are configured, confirm their values before applying the rules to the PIX 515E.
Confirm the configurations:
a. Click the OK
button.
b. Click the Apply button in the main window.

Cisco PIX-515E Specifications

General

Concurrent Sessions	130, 000
Stateful Inspection	Yes
Maximum Connections	130, 000
RAM	128 MB
Flash Memory	16 MB
Power Supply	Internal AC
Operating System	Cisco PIX OS
Interfaces	6 x 10/100 Ethernet
High Availability	Yes
Weight	15 lbs
Firewall Type	Stateful Packet Inspection
Form Factor	Rackmount
VPN Throughput	Up to 100 Mbps (3DES)
