Cisco PWR-C1-1900WAC-P User Manual

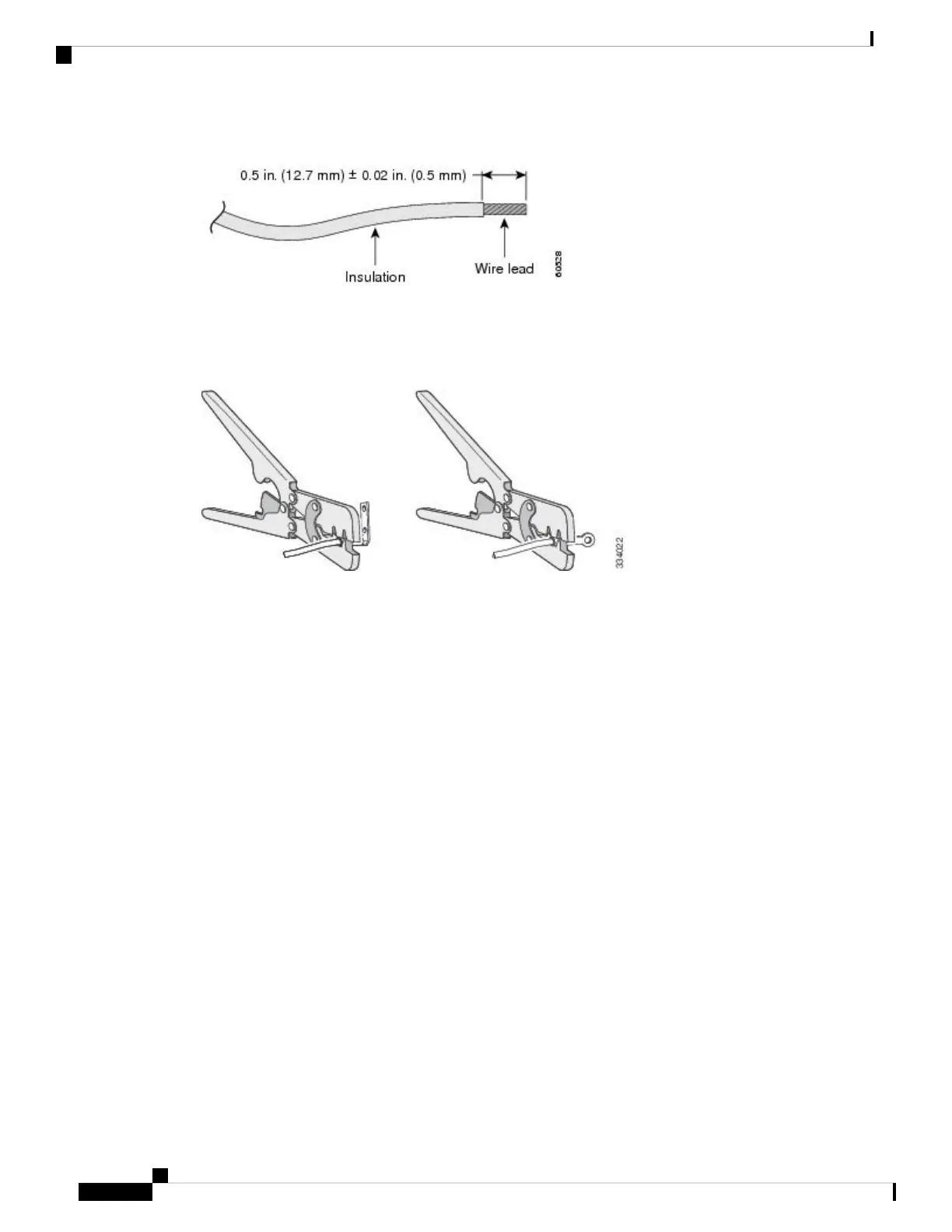

Figure 8: Stripping the Ground Wire
Step 3 Slide the open end of the ground lug over the exposed area of the wire.
Step 4 Using a Panduit crimping tool, crimp the ground lug to the wire.
Figure 9: Crimping the Ground Lug
Step 5 Use the ground screw to attach the single-hole ground lug to the switch rear panel. Use two ground screws to
attach the dual-hole ground lug to the switch rear panel.
Installing a Power Supply
10
Installing a Power Supply
Grounding the Switch

Cisco PWR-C1-1900WAC-P Specifications

General

Brand	Cisco
Model	PWR-C1-1900WAC-P
Category	Power Supply
Language	English
