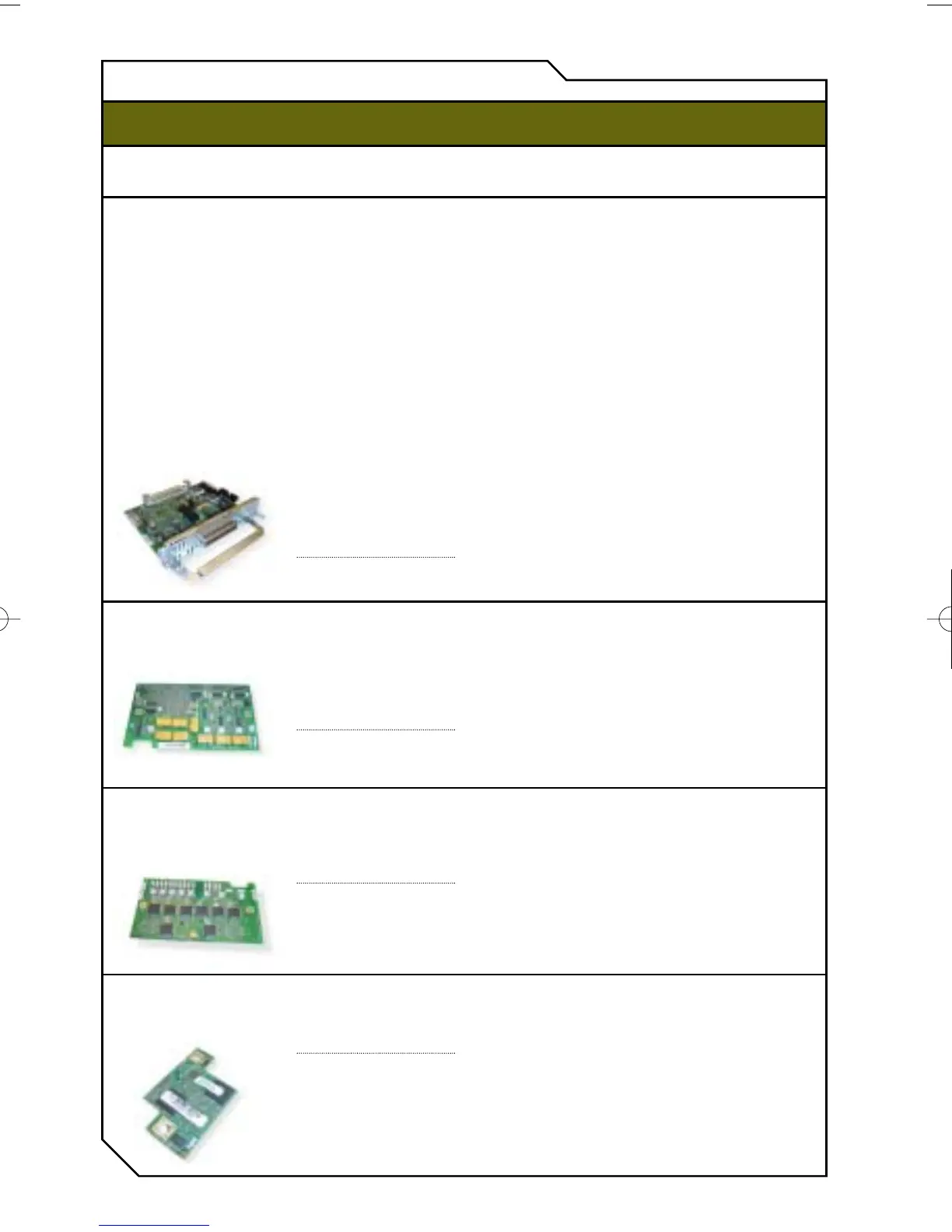

Network Modules for Cisco 2600XM, 3600, and 3700 Series
70
Analog and ISDN Basic Rate Voice Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-HDA-4FXS
High-density analog
voice/fax network module
with 4 FXS
This base board is always
required for any configu-
ration of NM-HDA. It
comes with four built-in
FXS ports. Onboard DSP
resources can service
eight voice calls using
high-complexity codecs:
G.711 a/u; G.726 @ 32k,
24k and 16k; G.728; G.729,
A, B, AB; G.723.1 @ 5.3k
and 6.3k; clear channel
codec, fax relay. Also
supports 16 voice calls
using medium-complexity
codecs: G.711 a/u, G.726 @
32k, 24k, and 16k; G.729A
and AB; clear channel
codec, fax relay. Supports
two expansion modules
and one DSP module.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.2(4)XT
3640 – 12.2(4)XT
3620 – 12.2(4)XT
2691 – 12.2(8)T1
2600XM Series – 12.2(8)T1
2650 Series – 12.2(4)XT
2620 Series – 12.2(4)XT
2610 Series – 12.2(4)XT
Requires a Cisco IOS
”Plus” feature set.
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
EM-HDA-4FXO
4-port voice/fax expansion
module – FXO
Provides four off-premise
analog connections to the
central office. Country
settings are configurable.
Includes support for
battery polarity reversal
detection and Caller ID.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.2(4)XT
3640 – 12.2(4)XT
3620 – 12.2(4)XT
2691 – 12.2(8)T1
2600XM Series – 12.2(8)T1
2650 Series – 12.2(4)XT
2620 Series – 12.2(4)XT
2610 Series – 12.2(4)XT
Requires a Cisco IOS
”Plus” feature set.
Requires a high-density
analog voice/fax network
module (NM-HDA-4FXS).
EM-HDA-8FXS
8-port voice/fax expansion
module – FXS
Provides an additional
eight FXS ports for
connections directly to
analog phones, fax
machines, and key.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.2(4)XT
3640 – 12.2(4)XT
3620 – 12.2(4)XT
2691 – 12.2(8)T1
2600XM Series – 12.2(8)T1
2650 Series – 12.2(4)XT
2620 Series – 12.2(4)XT
2610 Series – 12.2(4)XT
Requires a Cisco IOS
”Plus” feature set.
Requires a high-density
analog voice/fax network
module (NM-HDA-4FXS).
DSP-HDA-16
16-channel DSP module
for NM-HDA
Enables an additional
eight high-complexity or
16 medium-complexity
voice calls on NM-HDA.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.2(4)XT
3640 – 12.2(4)XT
3620 – 12.2(4)XT
2691 – 12.2(8)T1
2600XM Series – 12.2(8)T1
2650 Series – 12.2(4)XT
2620 Series – 12.2(4)XT
2610 Series – 12.2(4)XT
Requires a Cisco IOS
”Plus” feature set.
Requires a high-density
analog voice/fax network
module (NM-HDA-4FXS).
