Connecting Digital Modem Network Modules to a Network 10-9
Removing 6-Port MICA Modules

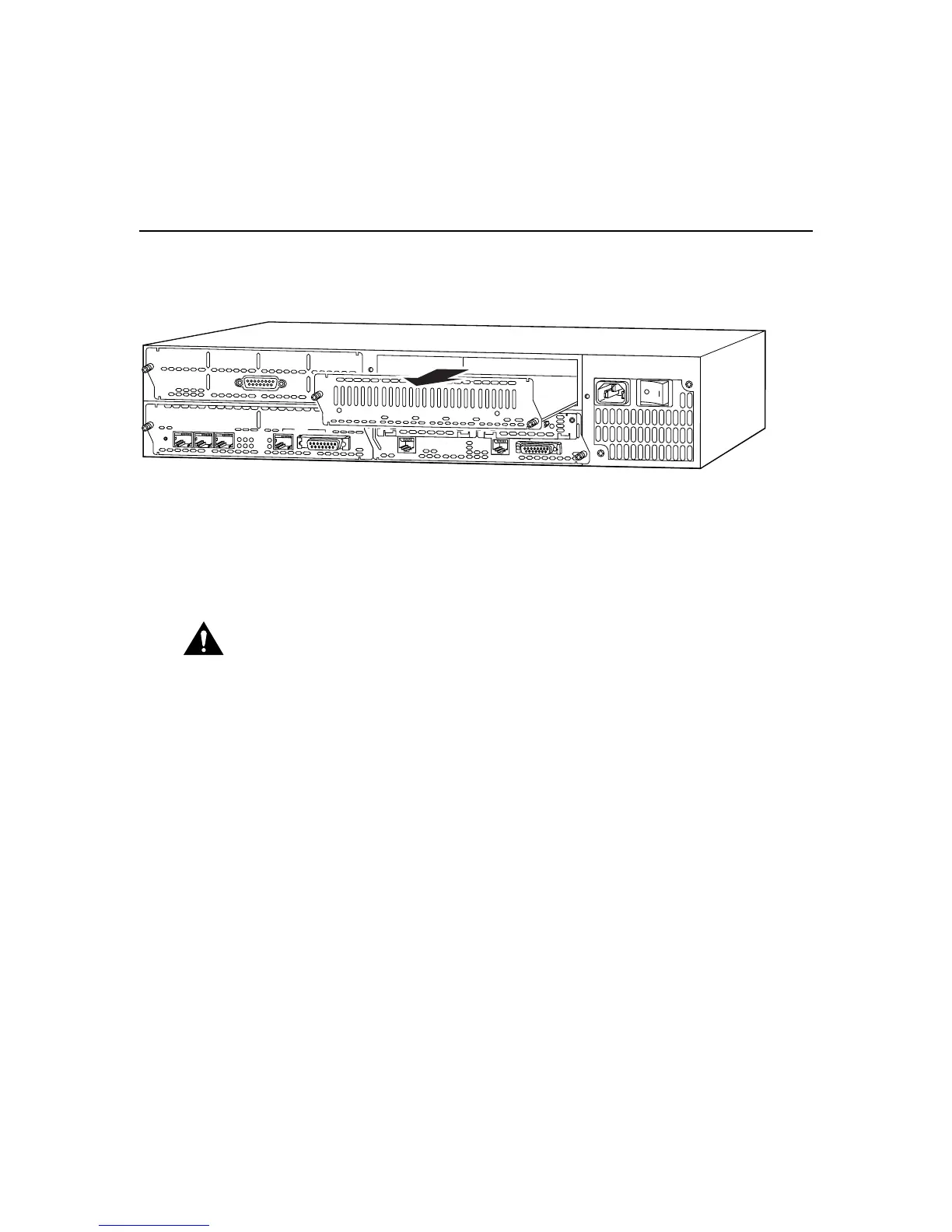

Figure 10-4 Removing a Digital Modem Network Module from a Router
Removing 6-Port MICA Modules
To remove a MICA module from the digital modem network module, follow these steps:
Step 1 Orient the digital modem network module so that the faceplate is on the right.
Step 2 Remove one MICA module at a time, beginning with the one farthest from you.
Step 3 To lift the MICA module out of its socket, pull the spring clips on both sides
outward (see Figure 10-5) and tilt the MICA module away from you until it is
free of the clips (see Figure 10-6).
Step 4 Hold the MICA module by the edges with your thumb and index finger and lift
it out of the socket. (See Figure 10-7.) Place the removed MICA module in an
antistatic bag to protect it from ESD damage.
Step 5 Repeat Step 2 through Step 4 for any remaining MICA modules that you want
to remove.
Caution Handle MICA modules by the card edges only. MICA modules are
ESD-sensitive components and can be damaged by mishandling.
H11202
INPUT 100-240VAC 50/60HZ 3.0-1.5 AMPS
2
3
1
2E
2W
W1
STP
ETHERNET 0
AUI
EN
ACT
LNK
ACT
LNK
ACT
SERIAL
ACT
ETHERNET 1
LOOPBACK
CTRLR 0
EN
cT1
PRI
LOCAL
ALARM
REMOTE
ALARM
CARRIER
DETECT
EN
ACT
LINK
3
2
1
0
ETH 0
ETH 3
ETHERNET
4E
ETH 2 ETH 1
DIGITAL MODEMS
MICA
BANK 0
MICA
BANK 1
MICA
BANK 2
MICA
BANK 3
MICA
BANK 4
EN
