Connecting Compression Network Modules to a Network 14-3
Compression Network Module LEDs
Compression Network Module LEDs
Figure 14-2 shows the compression network module LEDs.

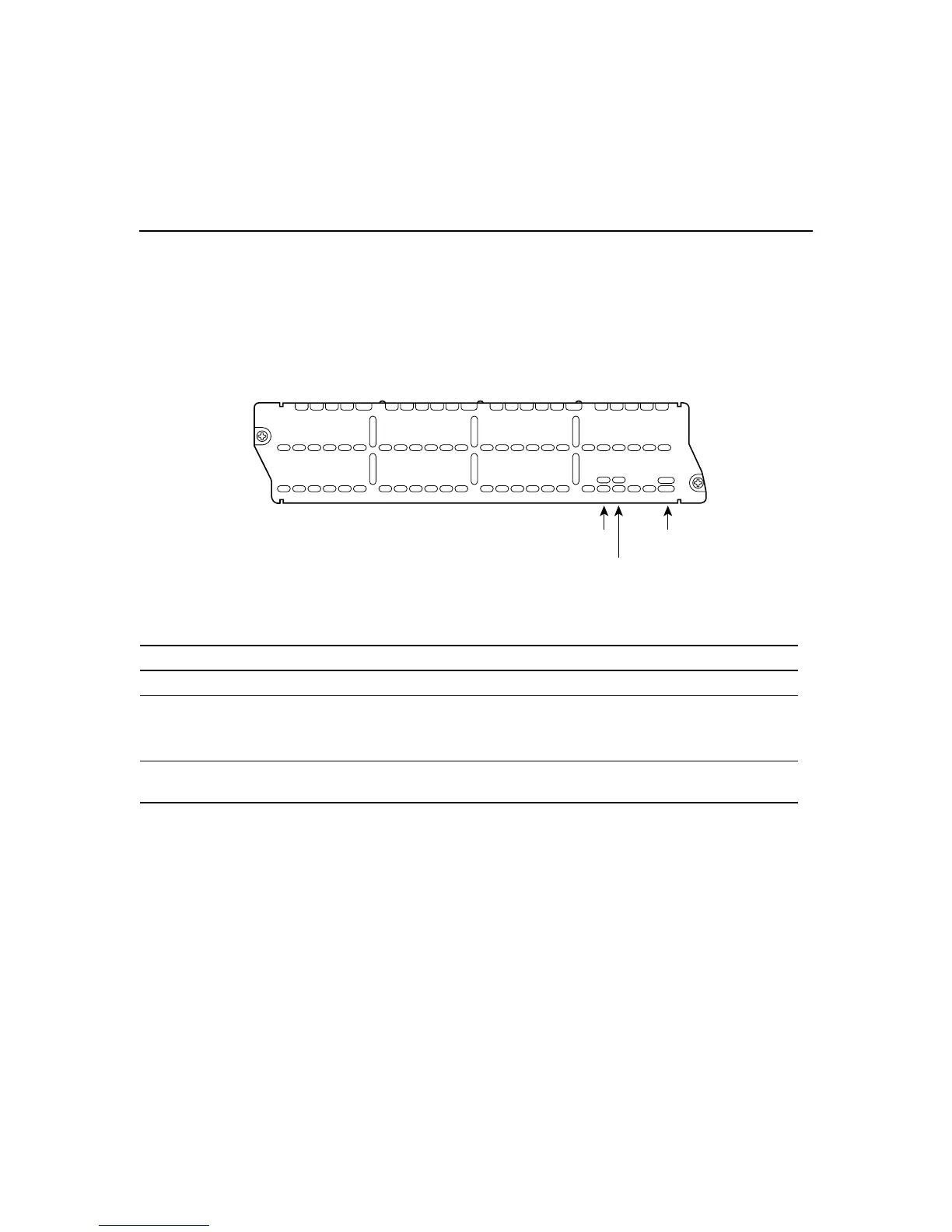

Figure 14-2 Compression Network Module LEDs
Table 14-1 Compression Network Module LEDs
LED Meaning
EN (Enable) Green indicates that the module has passed its self-tests and is available to the router.
ERROR Amber indicates that an error was found, and if it remains on, that the error might prevent accurate
compression.
Off during normal operation.
ACTIVE Green indicates that the module is ready to process data. It goes on when the boot process is
complete and stays on during normal operation.
H10482
COMPRESSION
EN
ERROR ACTIVE
Error LED
Active LED
Enable LED
