Cisco Router Cisco 3600 User Manual

1-Port Fast Ethernet Module
Cisco Network Modules Hardware Installation Guide
4-6
Connecting Fast Ethernet Ports
Use a two-pair Category 5 or unshielded twisted-pair (UTP) straight-through RJ-45 cable
to connect the RJ-45 port on a 1-port Fast Ethernet network module to a switch, hub,
repeater, server, or other network device. Figure 4-7 shows the RJ-45 port connected to a
hub.
Note RJ-45 cables are not available from Cisco Systems. These cables are widely
available and must be Category 5 cables.

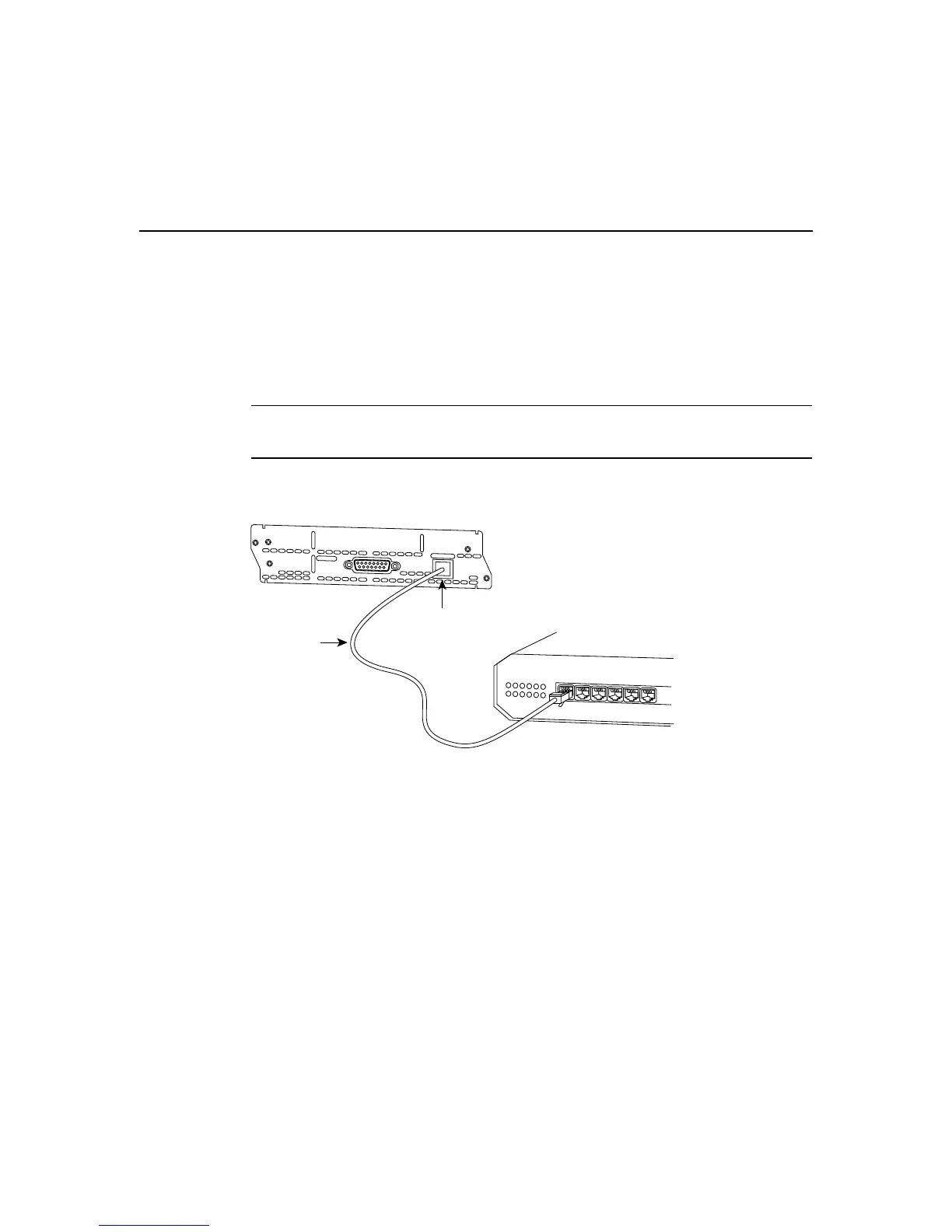

Figure 4-7 Connecting a Fast Ethernet RJ-45 Port to a Hub
LOOP
BACK
EN
FE–PRI
1FE-1CT1
LOCAL
ALARM
REMOTE
ALARM
CARRIER
DETECT
CTRLR 0
10/100BaseT
COLL
LINK
100Mbps
FDX
H9984
Fast Ethernet
RJ-45
Fast Ethernet hub
Category 5
or UTP cable
