Cisco RP Series User Manual

For Nordic countries (Norway, Finland, Sweden and Denmark) this system must be installed in a Restricted
Access Location, where the voltage of the main ground connection of all equipment is the same (equipotential
earth) and the system is connected to a grounded electrical outlet.
Warning
Connect the device to a grounded power outlet.
Warning
You can install up to six zero-U PDUs in the Cisco R42612 Rack. When servicing UCS servers, some products
may require temporary removal of cables to provide service space for rear-facing field replaceable units
(FRUs). Due to height restrictions, RP208-60M3P-12-9 must be installed facing the rear of the rack.
Each PDU needs a PDU retention bracket attached to the top of the PDU. When secured to the PDU tray, the
PDU retention bracket ensures that each PDU is securely held in place.
With the rear of the rack open, follow these steps to install a zero-U PDU:
Procedure
Step 1 Insert the mounting button on the back of the PDU into a key hole near the top of the PDU tray or into the
top key hole of the rear-facing flange. Callout 1 in the following figure shows the mounting button and the
key hole of the PDU tray on the side of the rack.

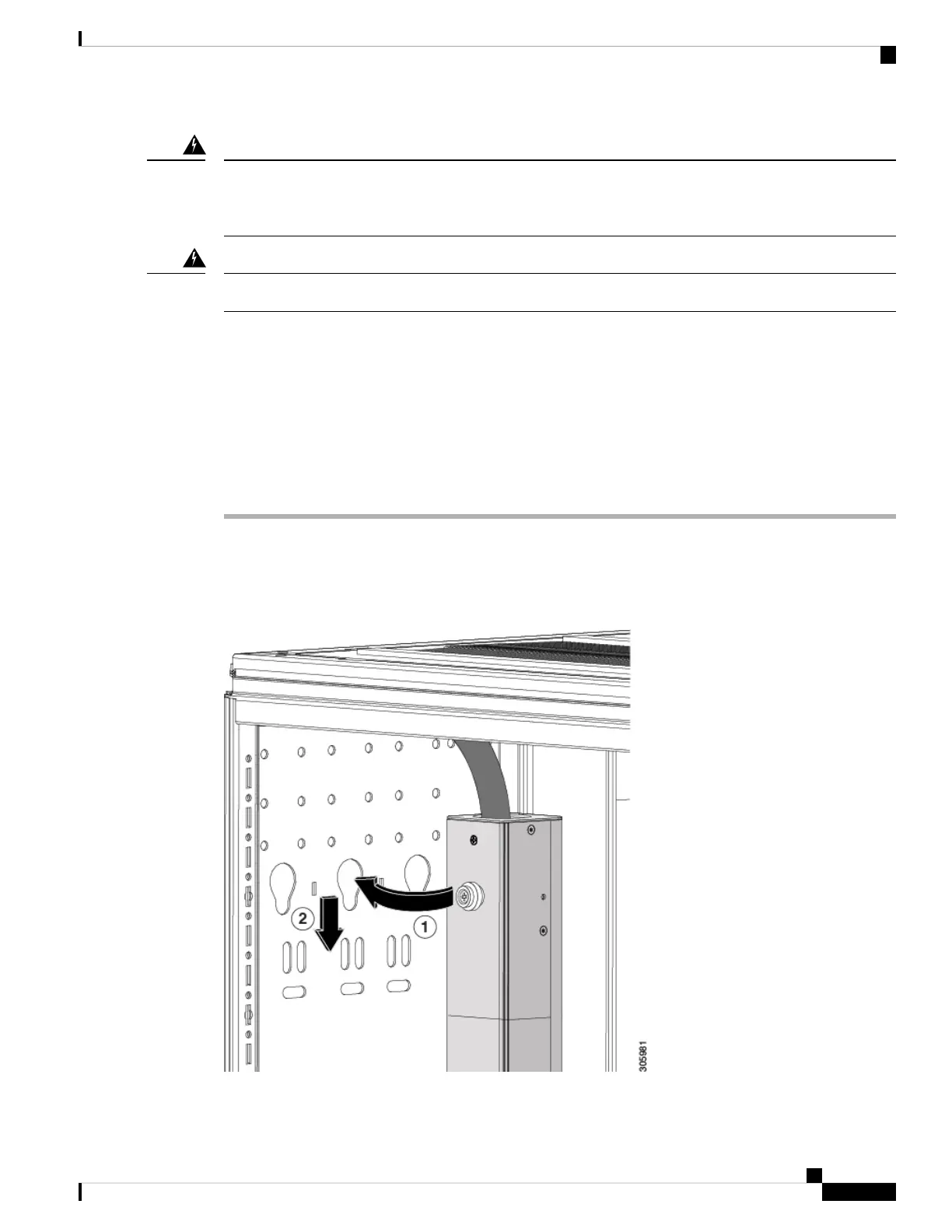

Figure 1: PDU Mounting Button
Installing Cisco RP-Series PDUs
3
Installing Cisco RP-Series PDUs
Installing a Zero-U PDU
