5
Installation
10/100 4-Port VPN Router
Chapter 3

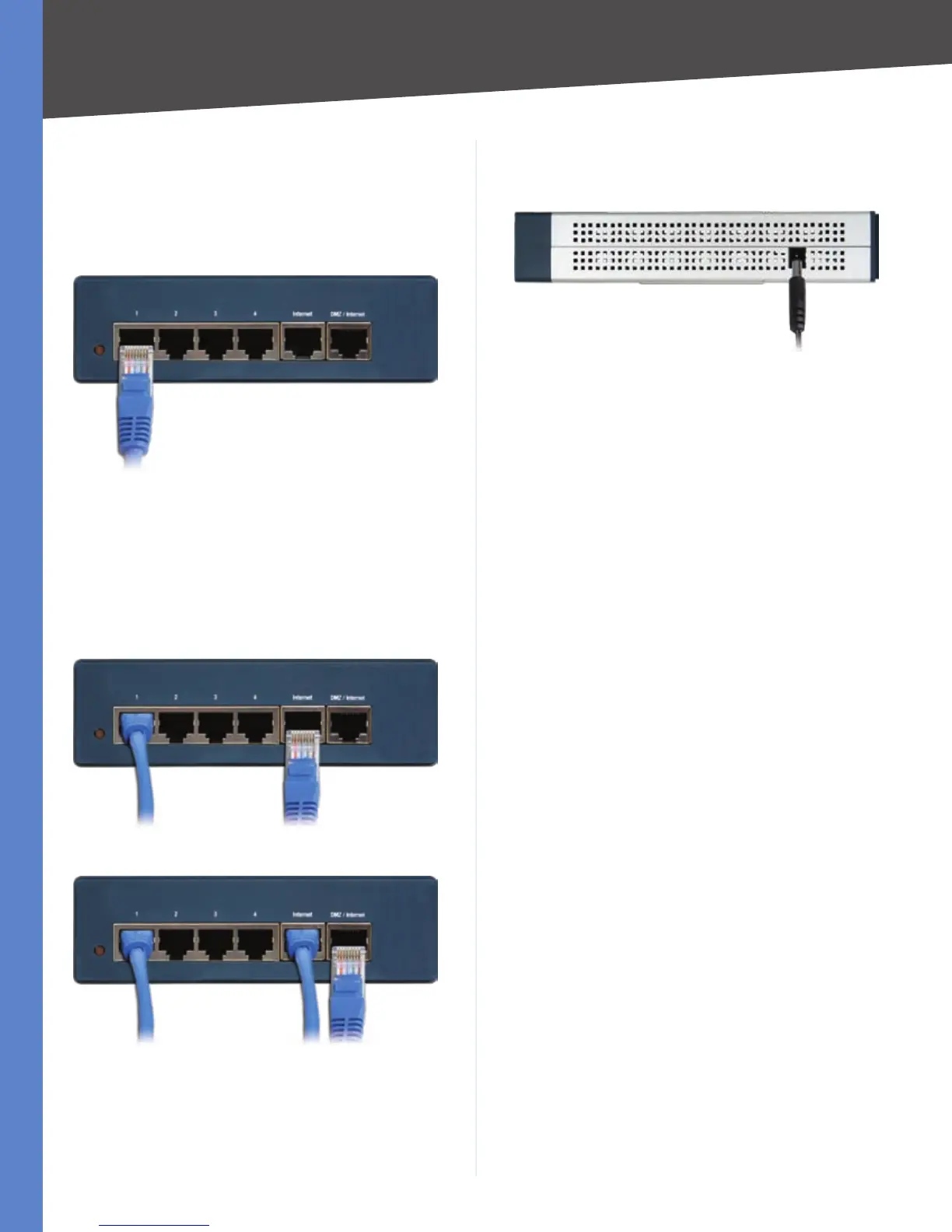

Connect one end of an Ethernet network cable to 2.
one of the numbered ports on the back of the Router.
Connect the other end to an Ethernet port on a
network device, such as a computer or switch.
Repeat this step to connect more computers or other
network devices to the Router.
Connect to Port 1
Connect your cable or DSL modem’s 3.
Ethernet cable to the Router’s Internet port.
If you are using the DMZ/Internet port,
then connect an Ethernet cable to the
DMZ/Internet port. Connect the other end to a network
device, such as a modem or public server.
Connect to the Internet Port
Connect to the DMZ/Internet Port
Power on the cable or DSL modem. If you have a 4.
network device connected to the DMZ/Internet port,
power on the network device.
Connect the included power adapter to the Router’s 5.
Power port, and then plug the power adapter into an
electrical outlet.
Connect the Power
The System LED on the front panel will light up as soon 6.
as the power adapter is connected properly.
Power on your computers and other network devices.7.
