Cisco RV134W Features

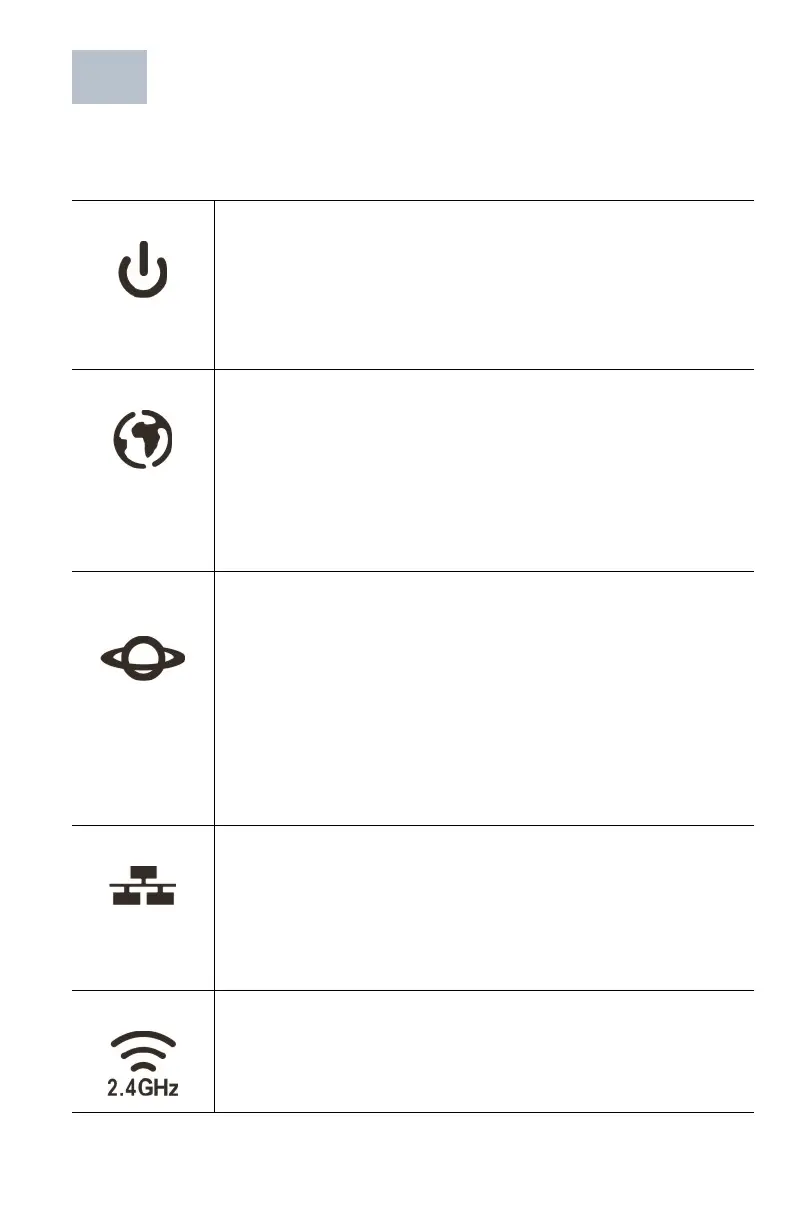

Front Panel
Power
Off when the device is powered off.
Solid green when the device is powered on and booted.
Flashing green when the device is booting or loading the
firmware.
Solid red when the device fails to reboot or system error, or
is in firmware recovery mode.
Internet
Off when the VDSL2+/WAN LED is OFF.
Solid green when the device has a DSL WAN IP or Ethernet
WAN IP connection.
Flashing green when the device is sending or receiving
data through DSL WAN.
Solid red when the device got no DSL WAN IP or Ethernet
WAN IP.
VDSL/Ether-
net WAN
Off when the device is powered off or the device is
configured to use the VDSL/Ethernet WAN yet no VDSL/
Ethernet link.
Solid green when the DSL link has been activated.
Flashing green when the device is negotiating with the
DSLAM.
Solid blue when the Ethernet link is on.
Flashing blue when the device is transmitting/receiving
data through Ethernet WAN.
LAN (1-4)
The numbered lights correspond to the LAN ports on the
back panel.
Solid green when the corresponding port is connected to
a device.
Flashing green when the port is sending or receiving
data.
WLAN 2.4G
Off when the 2.4GHz wireless module is disabled.
Flashing green when the wireless radio is transmitting or
receiving data.
Solid green when the 2.4GHz wireless module is enabled.
