a) Align the rear ends of the inner rails that are attached to the appliance sides with the front ends of the empty slide
rails on the rack.
b) Push the inner rails into the slide rails on the rack until they stop at the internal stops.
c) Slide the inner-rail release clip toward the rear on both inner rails, and then continue pushing the appliance into the
rack until its front slam-latches engage with the rack posts.

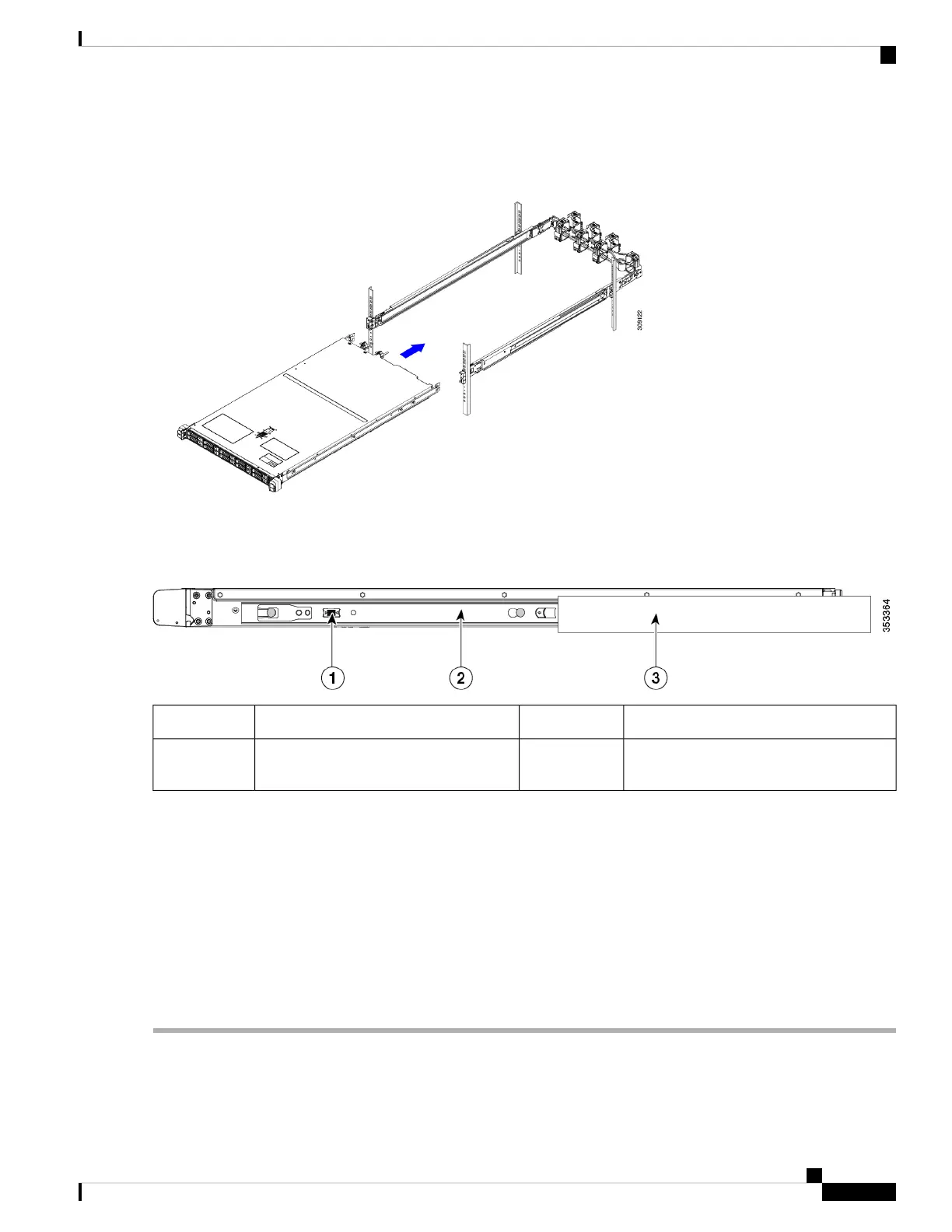

Figure 9: Inner-Rail Release Clip
Outer slide rail attached to rack post3Inner-rail release clip1
-Inner rail attached to appliance and
inserted into outer slide rail
2
Step 5 (Optional) Secure the appliance in the rack more permanently by using the two screws that are provided with the slide
rails. Perform this step if you plan to move the rack with appliance installed.
With the appliance fully pushed into the slide rails, open a hinged slam latch lever on the front of the appliance and insert
a screw through the hole that is under the lever. The screw threads into the static part of the rail on the rack post and
prevents the appliance from being pulled out. Repeat for the opposite slam latch.
Step 6 (Optional) If applicable, do the following:
a) Attach the cable management arm. See Installing the Cable Management Arm (Optional), on page 22 or Reversing
the Cable Management Arm (Optional), on page 23.
b) Attach the locking bezel.
Cisco Secure Network Server 3700 Series Appliance Hardware Installation Guide
21
Installing the Appliance
Installing the Appliance in a Rack
