22
IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Replacing a Display—Part Number CTS-5K-70-G1=

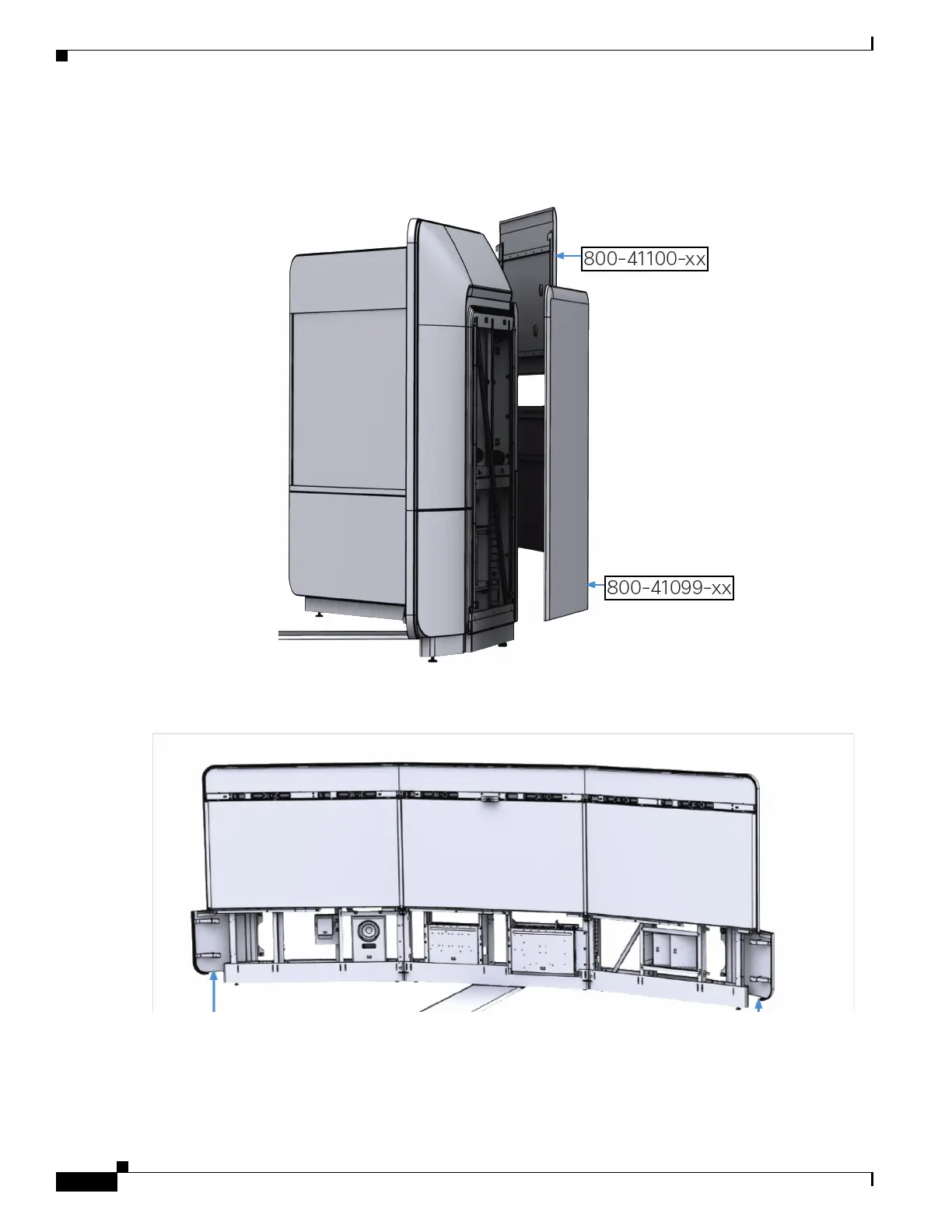

Step 6 While wearing gloves, remove the right or left PET panels, depending on which display requires
replacement, by pulling them upward and outward.
Step 7 Remove the lower corner cabinet. Remove the right cabinet for the right display, remove the left cabinet
for the left display. Four screws attach the cabinet to the lower display frame.
