IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Replacing a Codec—Part Number CTS-5K-ENCODER= or CTS-5K-HOSTCPU=

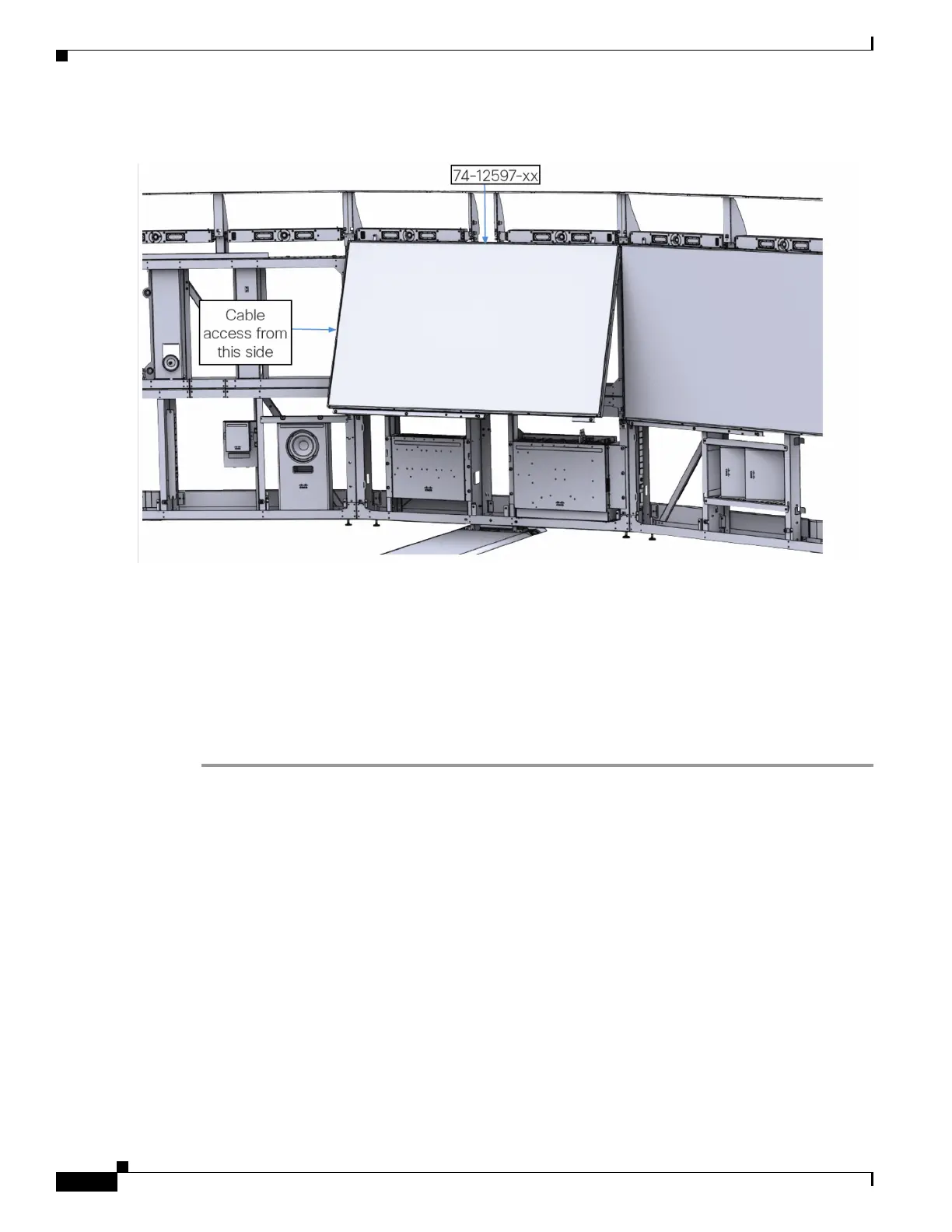

Step 14 Using two people, remove the display so that it lifts clear of the display shelf.
Step 15 Install the display and replace all other components in the reverse order that you removed them. Note
that this display goes on without the add-ons used for the left and right displays (spool and bracket).
Step 16 Be sure to power on the PDUs before you re-install the bottom fascia.
Replacing a Codec—Part Number CTS-5K-ENCODER= or
CTS-5K-HOSTCPU=
IMPORTANT NOTE
You must disconnect the power to the switch and the table, and disconnect the Touch 10 devices, after
you replace the codec. For more information, refer to the “Preventing Touch 10 Configuration Issues”
section of the IX5000 and IX5200 First-Time Setup document.
Required Tools
• #2 and #3 Phillips Driver
• Wiring diagram
